Intel Core i7-6800K Equivalent Xeon E5-1680 V4
1797.99 GBP
Intel Xeon E5‑1680 v4 offers eight cores, sixteen threads, running at 3.40 GHz with Turbo Boost to 4.00 GHz. It features a 20 MB L3 cache, supports quad‑channel DDR4 up to 2400 MHz, and delivers PCIe 3.0 with 40 lanes for robust server performance.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
Sponsored
Back to the Office

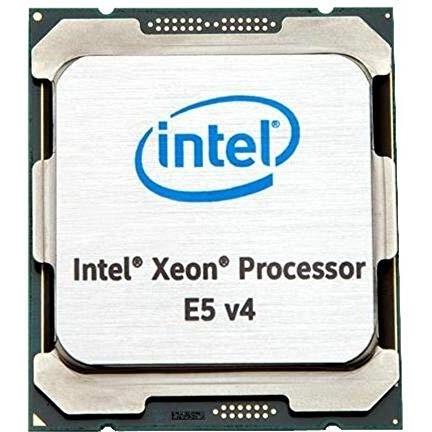

Intel Xeon E5-1680V4 processor 3.4 GHz 20 MB Last Level Cache
Back to the Office
02-06-2025 10:09:41
| Brand | Intel |
| EAN | 8592978069841 |
| ASIN | B01GRE1KB0 |
| Model | CM8066002044401 |
| MPN | CM8066002044401 |
| SKU | CM8066002044401 |
| Box | No |
| Bus Speed | 0 GT/s |
| Bus Type | QPI |
| Bus type units | GT/s |
| Component for | Server/Workstation |
| ECC | Yes |
| Embedded options available | No |
| Enhanced intel speedstep technology | Yes |
| Execute disable bit | Yes |
| Idle states | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel enhanced halt state | Yes |
| Intel flex memory access | No |
| Intel Identity Protection Technology version | 1.00 |
| Intel trusted execution technology | Yes |
| Intel TSX-NI | Yes |
| Intel Turbo Boost Max Technology 3.0 | Yes |
| Launch date | Q2'16 |
| Market segment | SRV |
| Maximum internal memory | 1572864 MB |
| Maximum internal memory supported by processor | 1536 GB |
| Maximum number of PCI Express lanes | 40 |
| Memory channels | Quad-channel |
| Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| On-board graphics adapter | No |
| PCI Express CEM Revision | 3.0 |
| PCI Express configurations | 1x16,1x4,1x8 |
| Processor ARK ID | 92992 |
| Processor boost frequency | 4.00 GHz |
| Processor brand name | Intel Xeon |
| Processor cache | 20 MB |
| Processor cache type | Last Level Cache |
| Processor code | SR2P8 |
| Processor codename | Broadwell |
| Processor cores | 8 |
| Processor family | Intel® Xeon® E5 v4 |
| Processor frequency | 3.40 GHz |
| Processor lithography | 14 nm |
| Processor manufacturer | Intel |
| Processor model | E5-1680V4 |
| Processor operating modes | 64-bit |
| Processor package size | 45 x 52.5 mm |
| Processor series | Intel Xeon E5-1600 v4 |
| Processor socket | LGA 2011-v3 |
| Processor threads | 16 |
| Product Type | Processor |
| Scalability | 1S |
| Status | Launched |
| Tcase | 70 °C |
| Thermal monitoring technologies | Yes |
