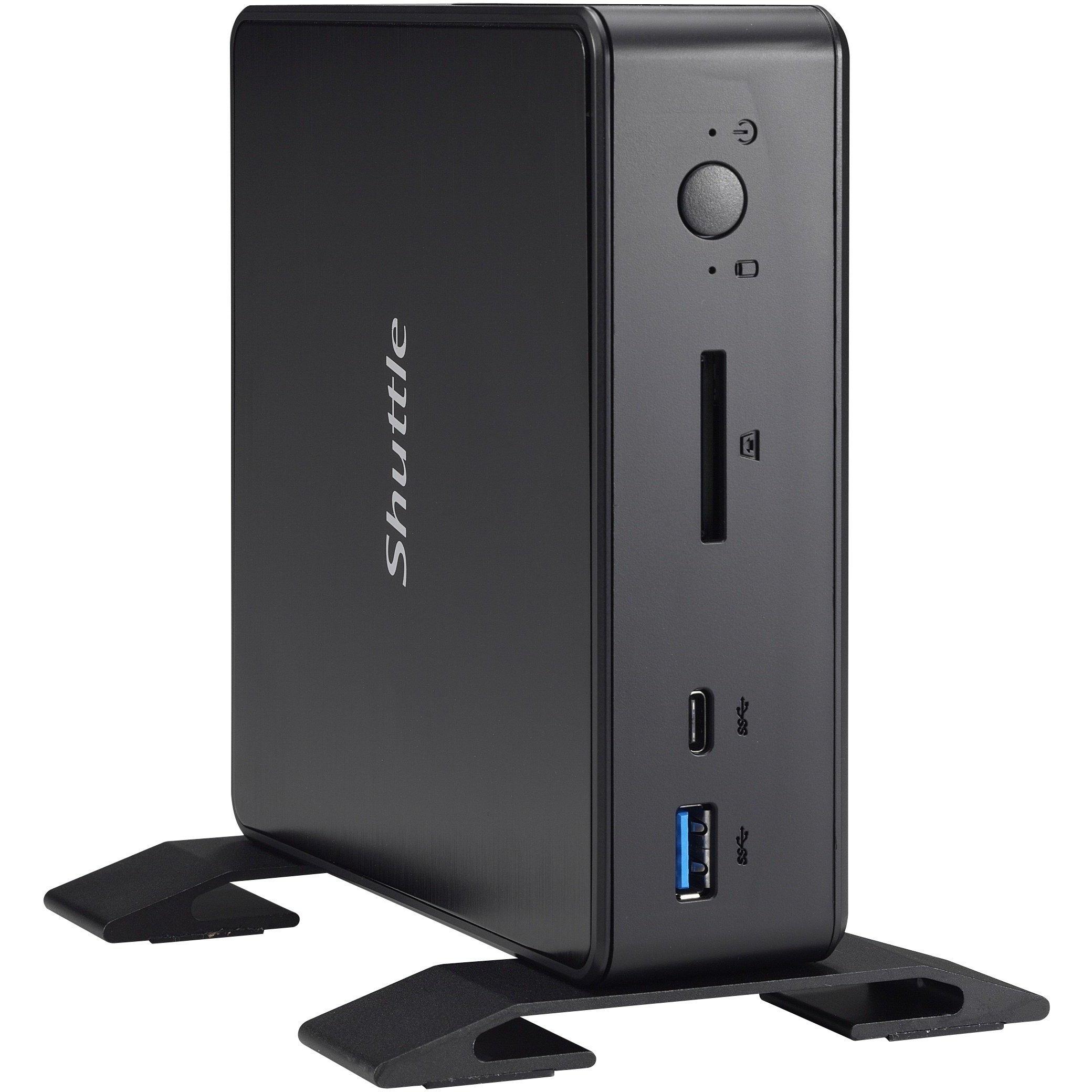

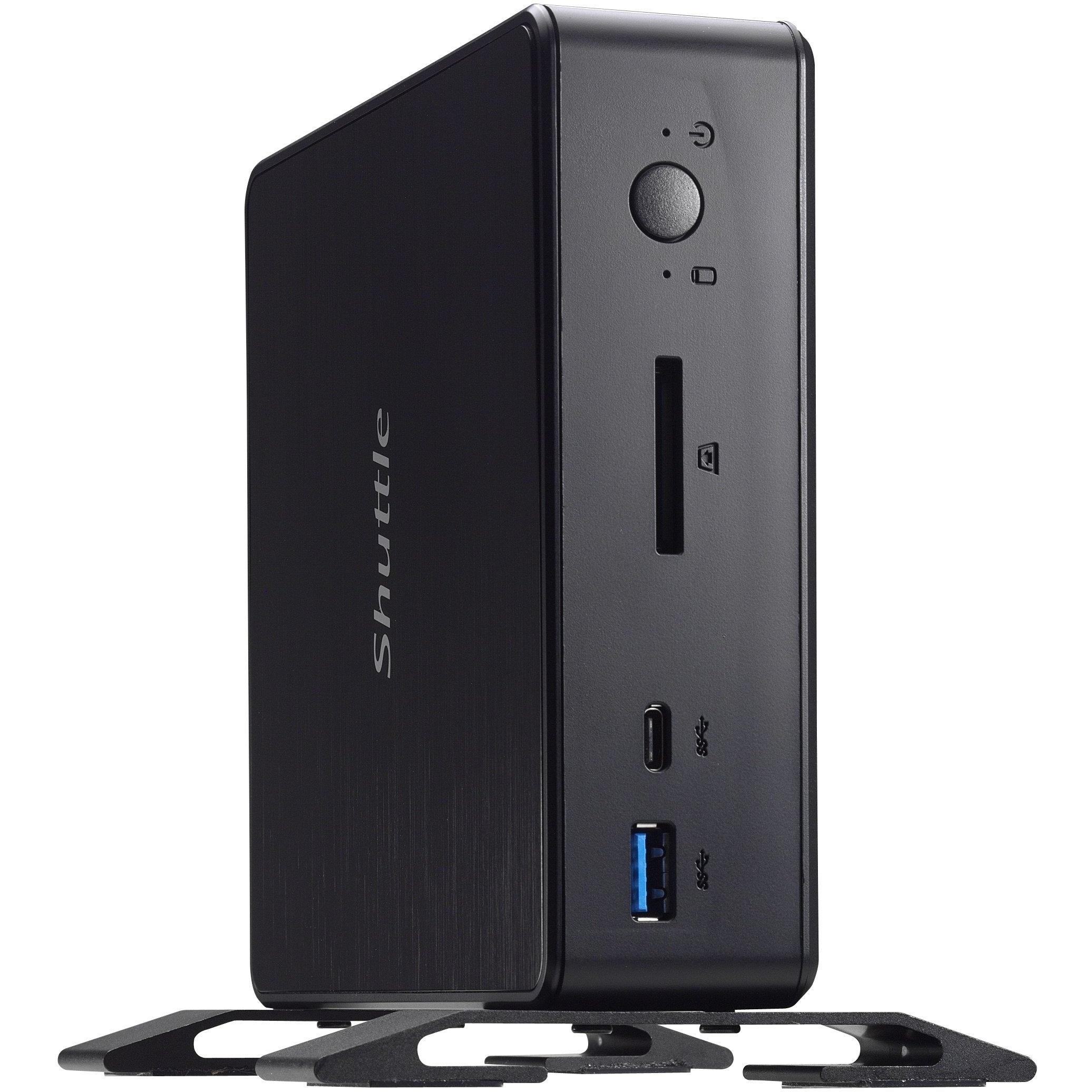

Shuttle NC02U5 BGA1356 2.3GHz i5-6200U Mini PC in Black
Tiny yet powerful, this i5‑6200U barebone supports up to 32 GB DDR3L dual‑channel, HDMI 1.4b, DisplayPort, Intel HD 520 graphics, Wi‑Fi 802.11n, and a single SATA III drive in a 400 g chassis with VESA mounting.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | SHUTTLE |
| EAN | 0887993000985 |
| ASIN | B01MFDP6NR |
| Model | DX30 |
| MPN | DX30 |
| AC adapter included | Yes |
| AC adapter output current | 3.42 A |
| AC adapter output voltage | 19 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Audio system | HD |
| BIOS memory size | 64 Mbit |
| BIOS type | AMI |
| Built-in processor | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Card reader integrated | Yes |
| Certification | FCC, CE, BSMI, C-Tick, RoHS, ErP |
| Chassis type | Nettop |
| Compatible memory cards | SD,SDHC,SDXC |
| Compatible processor series | Intel® Celeron® |
| Cooling type | Active |
| Depth | 142 mm |
| DisplayPorts quantity | 1 |
| Drivers included | Yes |
| ECC | No |
| Embedded options available | No |
| Energy Star certified | Yes |
| Enhanced intel speedstep technology | Yes |
| Ethernet LAN | Yes |
| Execute disable bit | Yes |
| Graphics adapter | HD Graphics 520 |
| Graphics adapter family | Intel |
| HDMI version | 1.4b |
| Idle states | Yes |
| Intel 64 | Yes |
| Intel clear video technology | Yes |
| Intel flex memory access | Yes |
| Intel trusted execution technology | No |
| Intel TSX-NI | Yes |
| LAN controller | Intel® I211 |
| LED indicators | HDD,Power |
| Linux operating systems supported | Yes |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
| Memory slots type | SO-DIMM |
| Memory voltage | 1.35 V |
| Number of memory slots | 2 |
| On-board graphics adapter | Yes |
| Operating system installed | No |
| Optical drive type | No |
| PCI Express slots version | 3.0 |
| Power cord included | Yes |
| Power supply | 65 W |
| Power supply type | External AC adapter |
| Processor boost frequency | 2.8 GHz |
| Processor frequency | 2.3 GHz |
| Processor model | i5-6200U |
| Processor socket | LGA 1356 (Socket B2) |
| Processor threads | 4 |
| Product Type | Mini PC barebone |
| Quick start guide | Yes |
| Safety | ETL, CB, BSMI |
| Storage drive interface | Serial ATA III |
| Storage drive sizes supported | 2.5" |
| Supported memory clock speeds | 1600 MHz |
| Supported memory types | DDR3L-SDRAM |
| Supported storage drive types | HDD,SSD |
| Thermal monitoring technologies | Yes |
| VESA mounting | Yes |
| Weight | 400 g |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Width | 42 mm |
