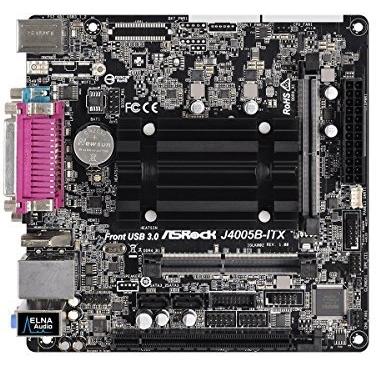

ASRock J4005B-ITX Intel Celeron Processor J4005 Mini ITX Motherboard
Mini‑ITX motherboard with Intel Celeron J4005, dual DDR4 SO‑DIMM slots up to 8 GB, HDMI and VGA outputs, Gigabit Ethernet, Realtek ALC887 7.1‑channel audio, two SATA3 ports, USB 3.2 Gen 1, three USB 2.0, one PCIe x16 slot.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | ASRock |
| EAN | 4717677334913 |
| ASIN | B079GFD84R |
| Model | J4005B-ITX |
| MPN | J4005B-ITX |
| SKU | J4005B-ITX |
| 64-bit Support | Yes |
| Addressable RGB | No |
| Audio line in ports | 1 x 3.5mm Jack |
| Bluetooth | No |
| Chassis intrusion connector | 1 x Chassis Intrusion |
| Chipset manufacturer | Intel |
| Cooling fan support | 1 x CPU fan1 x Chassis fan |
| CPU Socket | Integrated CPU |
| CPU Speed | 2.0 GHz |
| Displayport connection | No |
| Drivers | Included |
| DVI connection | No |
| Firewire | No |
| Form factor | ITX Motherboard |
| Graphics chipset | Intel UHD 600 |
| HDMI connection | Yes |
| Integrated Graphics Supported | Yes |
| Internal USB 3.0 Header | Yes |
| L2 cache | 4 MB |
| Length | 170 mm |
| M.2 Support | No |
| Maximum RAM | 8 GB |
| Memory channel | Dual |
| Memory slot | 2 x SO-DIMM |
| Motherboard form factor | ITX |
| Multi GPU Support | No |
| Network Speeds Supported | 10/100/1000 Mbps |
| Number of PCI Express Slots | 1 x PCI Express 2.0 x16 (@ x2) |
| On-board Audio Type | 7.1 |
| On-board RGB Control | None |
| Power connector port | 1 x 20+4-pin ATX |
| Processor number | J4005 |
| Raid supported | No |
| RJ-45 ports | 1 x RJ-45 |
| SATA III Support | Yes |
| SATA Supported | Yes |
| Skip audio test | No |
| Socket | Integrated Processor |
| Software Included | UtilitiesAntiVirus Software (Trial Version)Google Chrome Browser and Toolbar |
| Thunderbolt | No |
| USB 3.0 Support | Yes |
| USB 3.1 Support | No |
| USB Connectors | 1 x USB 3.02 x USB 2.0 |
| VGA connection | Yes |
| Wireless LAN | No |
| Wireless Network | No |
