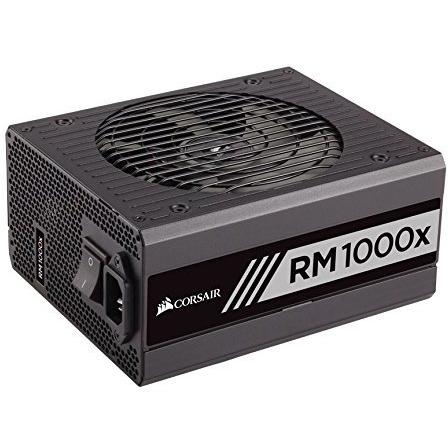

Corsair RMx Series RM1000X 1000W 80 PLUS Fully Modular PSU
A high‑performance 1000W ATX power supply with single‑rail +12V output, 80 Plus Gold efficiency, fully modular cabling, and a thermally controlled 135 mm fan for quiet operation in any build.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Corsair |
| EAN | 0843591050913 |
| ASIN | B015PWMTJ2 |
| Model | CP-9020094-UK |
| MPN | CP-9020094-UK |
| SKU | CP-9020094-UK |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.4 |
| Bearing technology | Rifle |
| Cabling Type | Modular |
| Combined power (+12V) | 1000 W |
| Combined power (+3.3V) | 150 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 9.6 W |
| Connectors | 2 x 4+4-pin CPU +12V (EPS) 2 x 4-pin FDD Power 11 x 4-pin Molex 8 x 6+2-pin PCIe 12 x SATA |
| Cooling | Fan |
| Dimensions | 150 x 86 x 180 mm (WxHxD) |
| EPS 12V | Yes |
| Fan location | Top |
| Fans | 1 x 135mm |
| Internal +12V Rails | Single Rail |
| Max output current (+12V) | 83.3 A |
| Max output current (+3.3V) | 25 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.8 A |
| Maximum Efficiency at 230Vac | 92 % |
| Modular | Yes |
| Modularity | Full Modular |
| Motherboard Connector | 20+4-pin |
| Number of sata power connectors | 11 |
| Package type | Retail |
| Peripheral (Molex) power connectors (4-pin) | 12 |
| Power supply unit (PSU) form factor | ATX |
| SLI/CrossFire | Yes |
| Sustainability certificates | RoHS |
