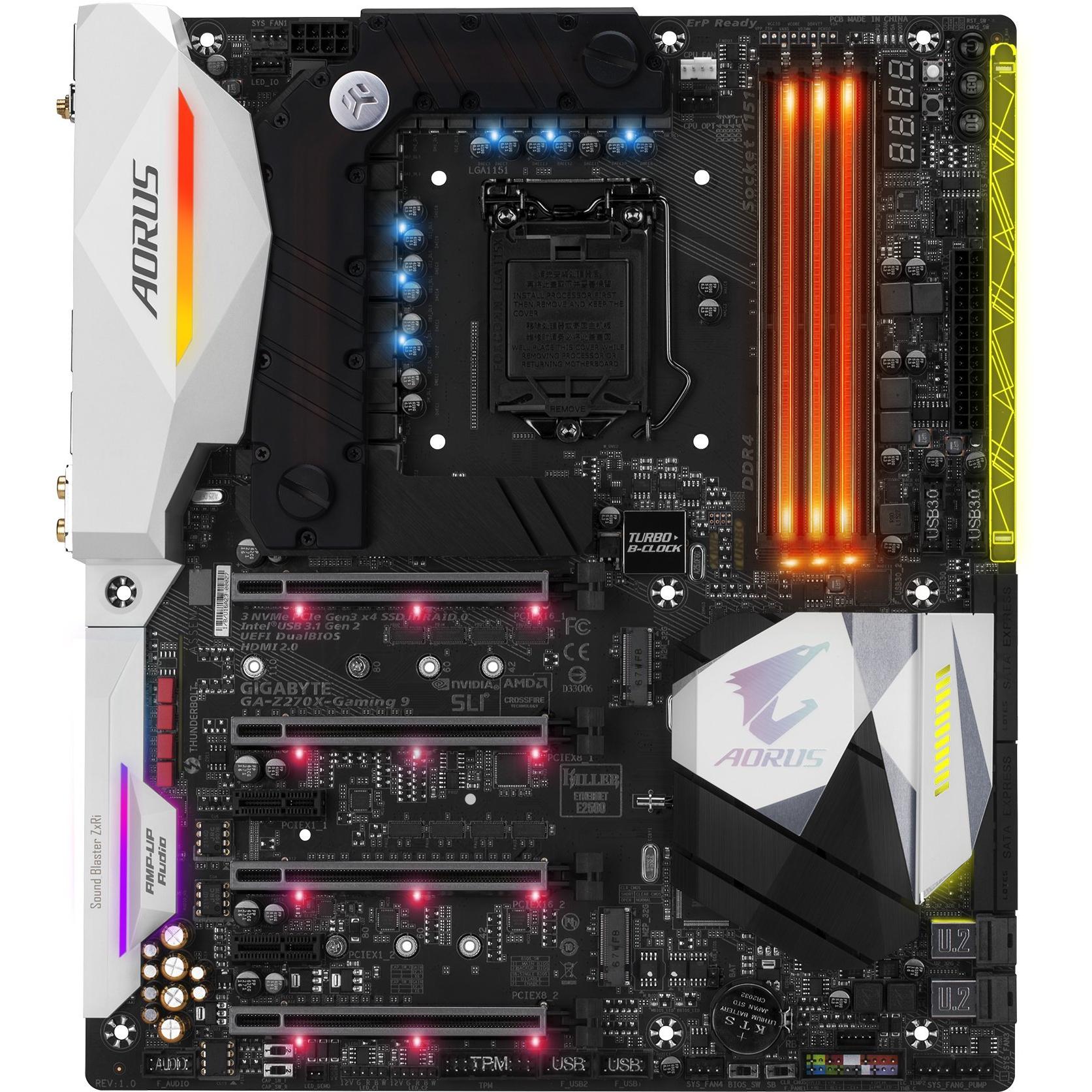

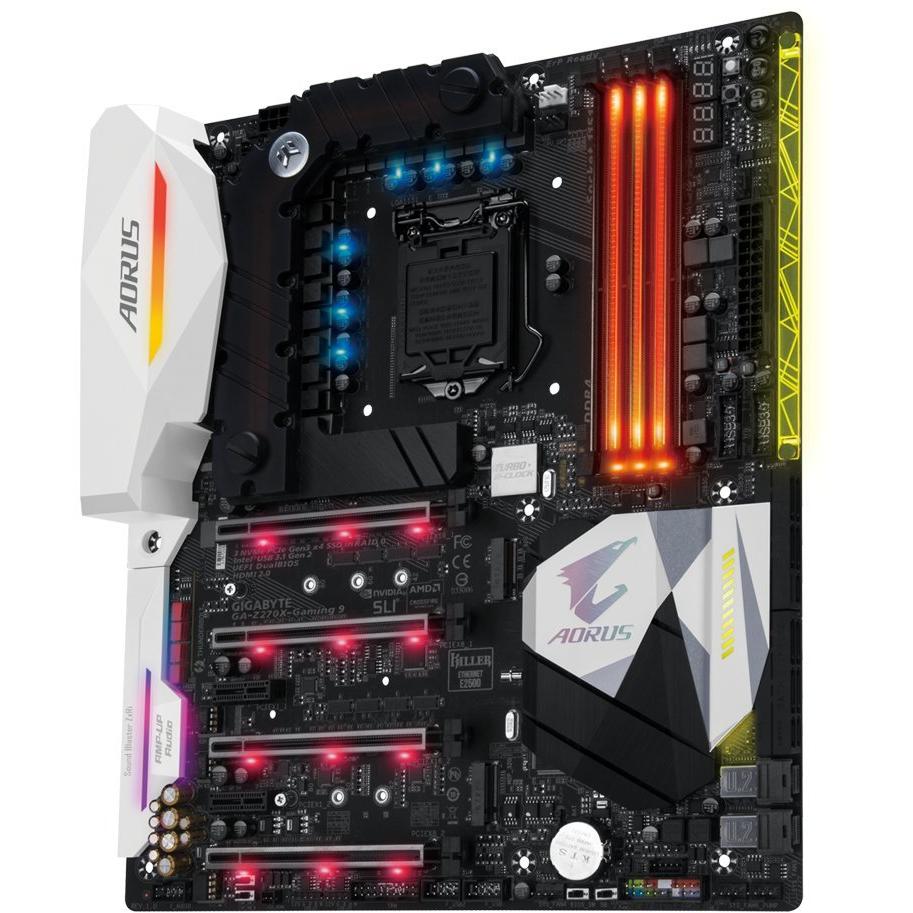

Intel Z270 chipset powers this E‑ATX board with dual‑channel DDR4 up to 64 GB, two M.2 slots and eight SATA III connectors for fast storage. It features Killer Gigabit LAN, Wi‑Fi 5, Bluetooth 4.1, HDMI 2.0, DisplayPort 1.2, a 5.1 audio system and dual USB‑3.1 Type‑C ports for versatile connectivity.
| Brand | Gigabyte |
| EAN | 4719331846374 |
| ASIN | B01N7MLYPR |
| Model | GA-Z270X-Gaming 9 |
| MPN | GA-Z270X-Gaming 9 |
| ACPI version | 5.0 |
| Audio output channels | 5.1 channels |
| BIOS memory size | 32 Mbit |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
| Cables included | SATA |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 264 mm |
| Displayport Version | 1.2 |
| DisplayPorts quantity | 1 |
| ECC | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Graphics adapter | HD Graphics |
| Graphics adapter family | Intel |
| HDCP | Yes |
| HDMI version | 2.0 |
| LAN controller | Killer E2500 |
| Manual | Yes |
| Maximum graphics adapter memory | 1024 MB |
| Maximum internal memory | 64 GB |
| Maximum resolution | 4096 x 2304 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel® Z270 |
| Motherboard form factor | Extended ATX |
| Non-ECC | Yes |
| Number of memory slots | 4 |
| Number of SATA III connectors | 8 |
| On-board graphics adapter | Yes |
| PC Health Monitoring | FAN,Temperature,Voltage |
| PCI Express x1 Slots | 2 |
| Power source type | ATX |
| Processor socket | LGA 1151 (Socket H4) |
| Quick installation guide | Yes |
| RAID levels | 0,1,5,10 |
| S/PDIF out port | Yes |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000 MHz |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Width | 305 mm |
