Gigabyte B550I AORUS PRO AX AMD B550 Socket AM4 mini ITX
213.04 CAD
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
quietpc.ca
| Brand | Gigabyte |
| EAN | 4719331809508 |
| ASIN | B089TP3GQF |
| MPN | B550I AORUS PRO AX |
| SKU | B550I AORUS PRO AX |
| 64-bit Support | Yes |
| Addressable RGB | Yes |
| Audio line in ports | 1 x 3.5 mm Jack |
| BIOS | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Bluetooth | Yes |
| Bluetooth version | 5 |
| Chipset manufacturer | AMD |
| Cooling fan support | 1 x CPU fan header2 x System fan headers |
| CPU Socket | Socket AM4 |
| Displayport connection | Yes |
| DisplayPorts | 1 x DisplayPort |
| Drivers | Yes |
| DVI connection | No |
| Firewire | No |
| Form factor | Mini-ITX Motherboard |
| Front panel connectors | 1 x Front Panel1 x Front Audio |
| HDMI connection | Yes |
| HDMI Port | 2 x HDMI 2.1 |
| Integrated Graphics Supported | Yes |
| Integrated Network | Realtek 2.5GbE |
| Integrated Sound | Realtek ALC1220-VB |
| Internal USB 3.0 Header | Yes |
| Length | 170 mm |
| M.2 Support | Yes |
| Maximum Installed Processors | 0 (1) |
| Maximum RAM | 65536 MB |
| Memory channel | Dual |
| Memory slot | 2 x DIMM |
| Memory speed | 5300 MHz |
| Motherboard chipset | AMD B550 |
| Motherboard form factor | ITX |
| Multi GPU Support | No |
| Network Speeds Supported | 10/100/1000/2500 Mbps |
| Number of PCI Express Slots | 1 x PCI Express 4.0 x16 |
| On-board Audio Type | 7 |
| On-board RGB Control | Gigabyte RGB Fusion |
| Operating Systems Supported | 10 |
| Other Connectors | 2 x M.2, Socket 3, M Key (Type 2260/2280)1 x Addressable LED header1 x RGB LED header |
| Power connector port | 1 x 20+4-pin ATX1 x 4+4-pin EPS |
| RAID Format | RAID 0, 1, 10 |
| Raid supported | Yes |
| RGB Header Type | 3-Pin ARGB |
| RJ-45 ports | 1 x RJ-45 |
| SATA III Support | Yes |
| SATA Supported | Yes |
| Software Included | Yes |
| Thunderbolt | No |
| USB 3.0 Support | Yes |
| USB 3.1 Support | Yes |
| USB Ports | 6 port(s) |
| VGA connection | No |
| WiFi Speed | 2400 Mbps |
| Wireless LAN | Yes |
| Wireless Network | Yes |
Related products
GIGABYTE B650M DS3H PCIe 4.0 M.2
128.54 GBP

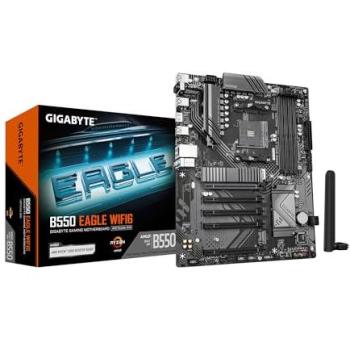

Gigabyte B550Eagle Wi‑Fi 6 10+3+1 Phase VRM
