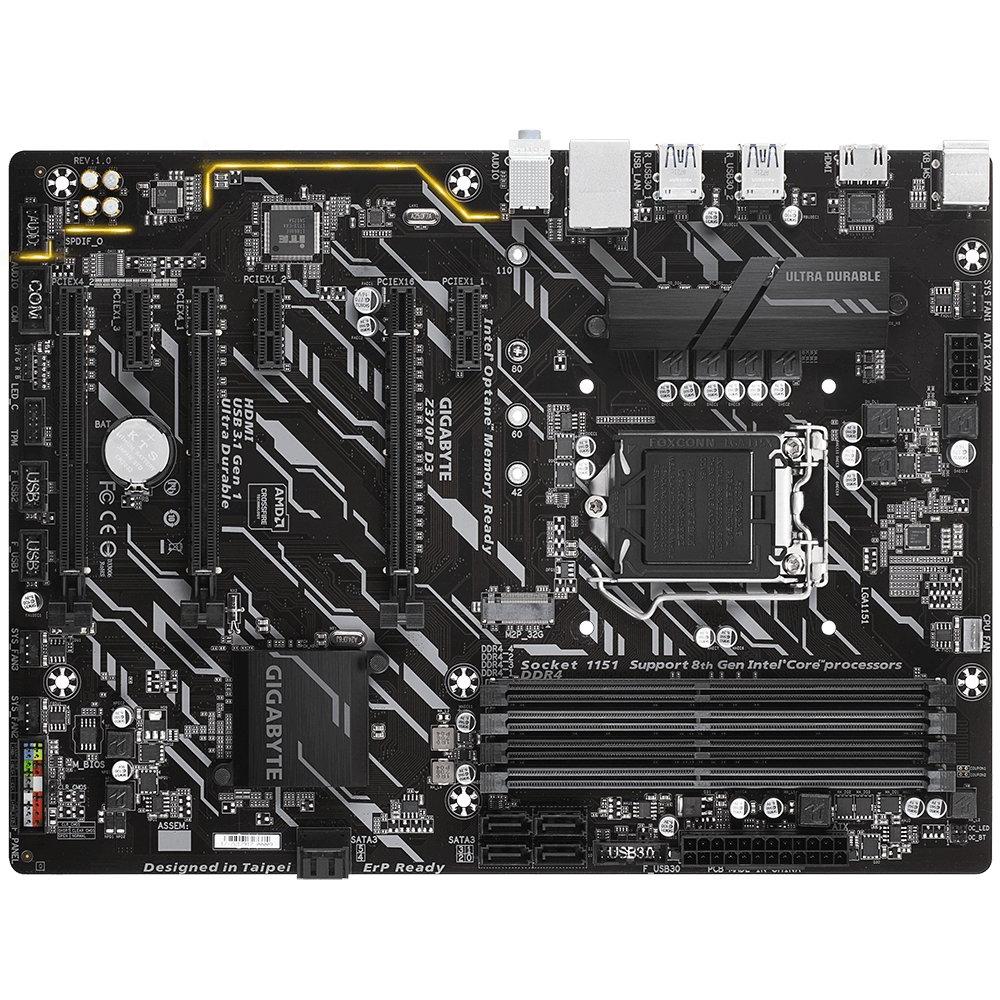

Gigabyte Z370P D3 Express ATX Motherboard
Intel Z370P D3 delivers robust performance with dual‑channel DDR4 up to 64 GB, four PCIe 3.0 x16/x4 lanes for GPUs, one M.2 slot, six SATA III ports, HDMI 1.4, Gigabit Ethernet, Realtek ALC887 8‑channel audio and UEFI BIOS.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Gigabyte |
| EAN | 4719331802479 |
| ASIN | B0775JBB87 |
| Model | Z370P D3 |
| MPN | Z370P D3 |
| ACPI version | 5.0 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Bundled software | Norton Internet Security, cFosSpeed |
| Cables included | SATA |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel® Core™ i3, Intel Core i5, Intel Core i7 |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 225 mm |
| Drivers included | Yes |
| ECC | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Graphics adapter | HD Graphics |
| Graphics adapter family | Intel |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Manual | Yes |
| Maximum graphics adapter memory | 1024 MB |
| Maximum internal memory | 64 GB |
| Maximum resolution | 4096 x 2160 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel® Z370 Express |
| Motherboard form factor | ATX |
| Non-ECC | Yes |
| Number of chassis fan connectors | 3 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 6 |
| Parallel processing technology support | 2-Way CrossFireX,Quad-GPU CrossFireX |
| PC Health Monitoring | FAN,Temperature,Voltage |
| Processor socket | LGA 1151 (Socket H4) |
| RAID levels | 0,1,5,10 |
| S/PDIF out connector | Yes |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| Width | 305 mm |
| Windows operating systems supported | Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64 |
