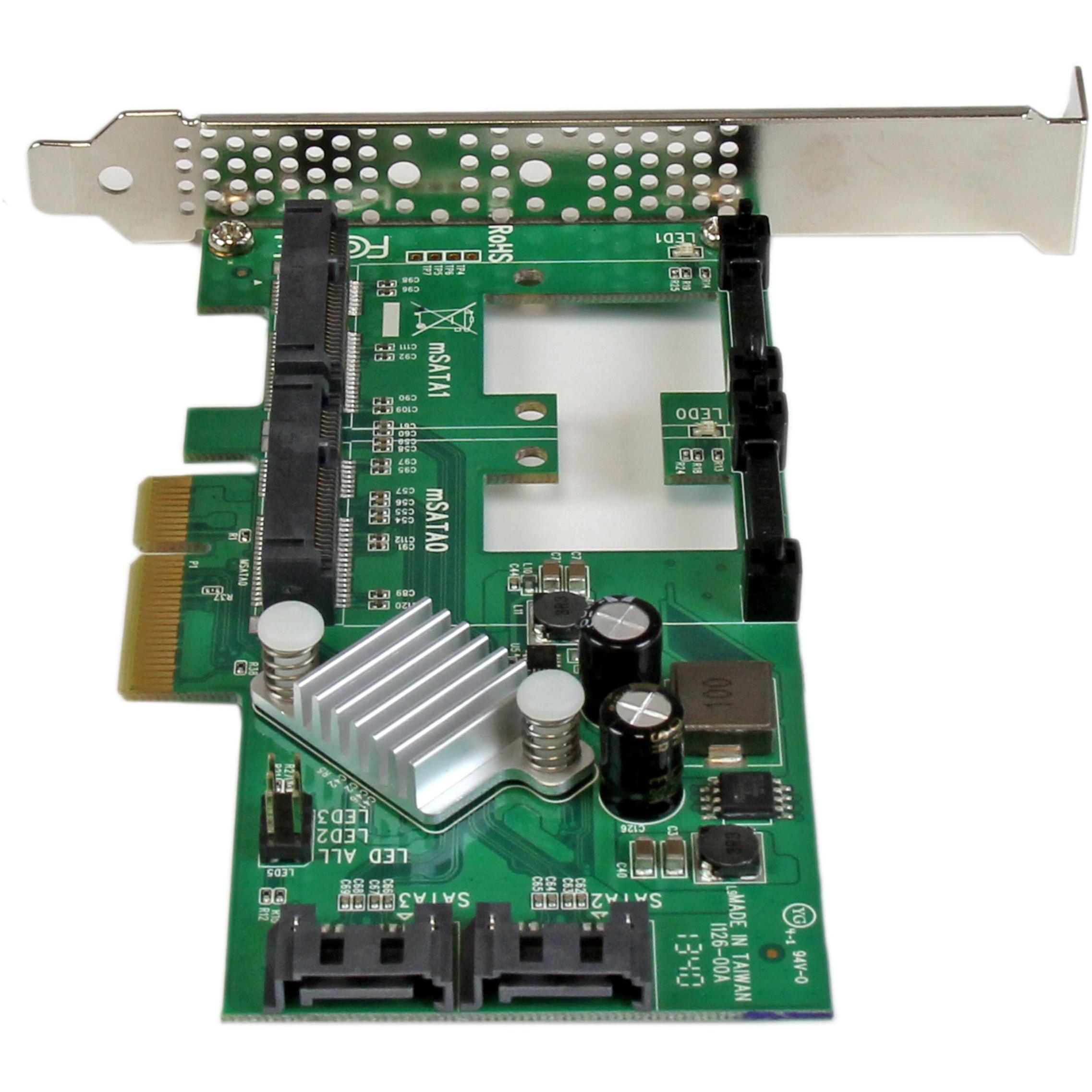

StarTech.com PCIe SATA 3 Controller with Two Port PCI Express 2.0, SATA III 6Gbps RAID Controller Card and Dual mSATA Slots
A compact PCIe 2.0 x4 controller with Marvell 88SE9230 offers two SATA III 6Gb/s ports and dual mSATA slots, enabling RAID 0/1/JBOD or HyperDuo SSD tiering for up to 4 TB across Windows, Linux and macOS systems.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | StarTech |
| EAN | 0758399115811 |
| ASIN | B00PY1850W |
| Model | PEXMSATA3422 |
| MPN | PEXMSATA3422 |
| SKU | PEXMSATA3422 |
| Certification | RoHS, CE, FCC |
| Chipset | Marvell - 88SE9230 |
| Data transfer rate | 6 Gbit/s |
| Depth | 125 mm |
| Drivers included | Yes |
| Height | 120 mm |
| Host interface | PCI Express x4 |
| Linux operating systems supported | Yes |
| Manual | Yes |
| Package depth | 174 mm |
| Package Height | 32 mm |
| Package width | 144 mm |
| PCI Express slots version | 2.0 |
| RAID levels | 0,1,JBOD |
| Server operating systems supported | Windows Server 2003,Windows Server 2008 R2,Windows Server 2012 |
| Supported storage drive interfaces | Serial ATA,Serial ATA II,Serial ATA III |
| Weight | 60 g |
