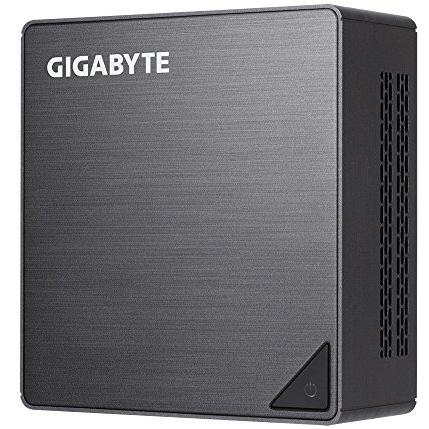

Intel Core i5 Mini Barebones
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Gigabyte |
| EAN | 4719331281090 |
| ASIN | B07CZ5FGLY |
| MPN | GB-BRI5H-8250 |
| Model | GB-BRI5H-8250-BW |
| AC adapter included | Yes |
| AC adapter output current | 3.42 A |
| AC adapter output voltage | 19 V |
| AC input voltage | 100 - 240 V |
| Architecture | Coffee Lake |
| Audio Line Out Ports | 1 x 3.5mm Jack (Combo) |
| Audio system | Realtek ALC255 |
| Base GPU Speed | 300 MHz |
| Bluetooth version | 4.2 |
| Burst frequency | 3.4 GHz |
| Cable lock slot type | Kensington |
| Case colour | Black |
| Case form factor | ITX |
| Case type | SFF |
| Chassis type | UCFF |
| Chipset | System-on-Chip |
| Chipset manufacturer | Intel |
| Clock speed | 1.6 GHz |
| CPU Cache | 6MB |
| CPU Cooler | Passive Heatsink |
| CPU Cores | Quad Core |
| CPU Included | Yes |
| CPU Model | 8250U |
| CPU Socket | Integrated CPU |
| CPU Type | Intel Core i5 |
| Depth | 119.4 mm |
| Dimensions | 119.4 x 112.6 x 46.8 (mm WxHxD) |
| Discrete GPU | No |
| DisplayPort version | 1.2a |
| DisplayPorts | 1 x Mini DisplayPort 1.2 |
| Drive bays | 1 x 2.5" Internal |
| Edition | GB-BRi5H-8250 |
| Ethernet LAN ports | 1 |
| Expansion slots | 1 x M.2, 22-30 (Occupied by WiFi Card) 1 x M.2, 22-80, PCIe/SATA |
| Form factor | mini PC |
| Front panel | 1 x Dual-array Microphones 1 x Headphone/Mic Combo 1 x USB 3.1 Type-A 1 x USB 3.1 Type-C |
| GPU Memory Size | Shared |
| GPU Tensor Cores | N/A |
| Graphics chipset | Intel UHD 620 |
| Graphics interface | On-board |
| HDMI Port | 1 x HDMI 2.0a |
| HDMI version | 2.0a |
| Height | 46.8 mm |
| Integrated Graphics Supported | Yes |
| Keyboard / mouse included | No |
| L1 Cache | 256 KB |
| LAN controller | Intel I219V |
| Manufacturing process | 14 nm |
| Maximum GPU Resolution | 4096x2304 (4K) @60Hz |
| Maximum GPU Speed | 1100 MHz |
| Maximum Installed Processors | 1 (1) |
| Maximum internal memory | 32 GB |
| Maximum memory capacity | 64GB |
| Maximum TDP | 15 W |
| Memory Bus Speed | 2,400 MHz |
| Memory channel | Single |
| Memory channels | Dual (2) |
| Memory included | No |
| Memory slots type | SO-DIMM |
| Memory speed | DDR4 - 2400 |
| Memory type | DDR4 SO-DIMM |
| Memory Type ECC | Non-ECC |
| Memory Type R/U | UDIMM (Unbuffered) |
| Motherboard form factor | Bespoke/Custom |
| Multi-GPU Configuration | No |
| Number of Threads | 8 |
| On-board/Integrated Graphics | Yes |
| Operating system included | No |
| Operating temperature | 0 - 35 °C |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| PCI Express slots version | 3.0 |
| Power supply | Included |
| Power supply included | Yes |
| Power Supply Type | External AC adapter |
| Processor boost frequency | 3.40 GHz |
| Processor frequency | 1.60 GHz |
| Processor socket | BGA 1356 |
| RAID Support | Not Supported |
| Remote control included | No |
| RJ-45 ports | 1 x RJ-45 |
| SATA III Support | Yes |
| SATA Supported | Yes |
| Skip audio test | Yes |
| Storage drive included | No |
| Storage drive sizes supported | 2.5" |
| Storage temperature | -20 - 60 °C |
| Unlocked CPU | No |
| VESA Mountable | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Width | 112.6 mm |
| Windows operating systems supported | Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64 |
| Wireless LAN | 802.11ac |
