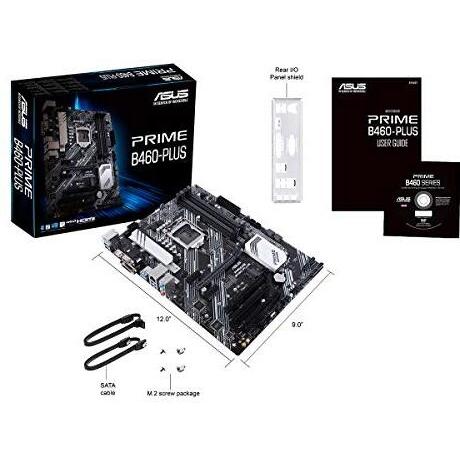

B460 Plus Premium Workstation
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | ASUS |
| EAN | 4718017699730 |
| MPN | PRIME B460-PLUS |
| SKU | PRIME B460-PLUS |
| ASIN | B088W1RC47 |
| 12v power connector | Yes |
| AMD CrossFire Support | 2-Way CrossFire |
| Audio | Realtek ALC887 7.1 HD Audio |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Board dimensions | 305 x 228 mm |
| Cables included | SATA |
| Chassis intrusion connector | Yes |
| Chipset | Intel B460 |
| Component for | PC |
| Cooling | Passive Heatsinks |
| CPU fan connector | Yes |
| CPU Socket | 1200 |
| Depth | 228.6 mm |
| DVI-D ports quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Form factor | ATX |
| HDMI version | 1.4b |
| Integrated Graphics | Requires Processor Graphics or Discrete GPU |
| LAN controller | Realtek RTL8111H |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Memory type | DDR4 |
| Memory Type ECC | Non-ECC |
| Memory Type R/U | UDIMM (Unbuffered) |
| Motherboard chipset family | Intel |
| Network Chip | 1 x Realtek RTL8111H (Gigabit LAN) |
| Network Interface Type | Wired Gigabit LAN (10/100/1000) |
| Non-ECC | Yes |
| Number of chassis fan connectors | 3 |
| Number of SATA III connectors | 6 |
| NVIDIA SLI Support | Not Supported |
| Primary GPU Interface | PCIe 3.0 (x16) |
| QPI Speed | N/A |
| RAID levels | 0,1,5,10 |
| RAID Support via | Intel® SATA RAID 0/1/10/5 |
| S/PDIF out connector | Yes |
| Supported memory clock speeds | 2133,2400,2666,2800,2933 MHz |
| Supported storage drive interfaces | SATA III |
| Supported storage drive types | HDD & SSD |
| Unbuffered memory | Yes |
| Wake-on-LAN ready | Yes |
| Water Cooled | No |
| Wi-Fi | No |
| Width | 305 mm |
| Windows operating systems supported | Windows 10 |
