16 Bay QNAP NAS
Intel Xeon E5‑2420V2 powers this 16‑bay NAS with 32 GB DDR3 and a 15 MB cache, delivering fast SAS storage up to 128 TB. It features 12 LAN ports, 4 SFP+ plus 2 RJ45 10G‑ready slots, active cooling, USB 3.0 and QES OS for SMB workloads.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | QNAP |
| EAN | 4713213510544 |
| ASIN | B01MZ20PZ3 |
| Model | ES1640DC-V2-E5-96G |
| MPN | ES1640DC-V2-E5-96G |
| Bus Type | QPI |
| Chassis type | Rack (3U) |
| Cooling type | Active |
| Depth | 618 mm |
| Device class | Small & Medium Business |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Enhanced intel speedstep technology | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Execute disable bit | Yes |
| Fiber optic connector | SFP+ |
| Flash memory | 2000 MB |
| Height | 132 mm |
| Idle states | Yes |
| Installed storage drive type | No |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel enhanced halt state | Yes |
| Intel flex memory access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel trusted execution technology | Yes |
| Intel TSX-NI | No |
| L3 cache | 15 MB |
| Maximum internal memory supported by processor | 384 GB |
| Maximum number of PCI Express lanes | 24 |
| Maximum supported storage capacity | 128 TB |
| Memory channels supported by processor | Triple |
| Memory slots | 6 |
| Noise level | 66.1 dB |
| Number of QPI links | 1 |
| Number of storage drives supported | 16 |
| Operating system installed | QNAP QES |
| PCI Express slots version | 3.0 |
| Power supply location | Built-in |
| Processor ARK ID | 75784 |
| Processor boost frequency | 2.7 GHz |
| Processor cache type | Smart Cache |
| Processor codename | Ivy Bridge EN |
| Processor family | Intel® Xeon® E5 V2 Family |
| Processor frequency | 2.2 GHz |
| Processor model | E5-2420V2 |
| Processor operating modes | 64-bit |
| Processor package size | 45 mm |
| Processor socket | LGA 1356 (Socket B2) |
| Processor threads | 12 |
| RAID support | Yes |
| Scalability | 2S |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage drive size | 2.5/3.5" |
| Storage drives installed | No |
| Supported storage drive types | HDD,SSD |
| System bus rate | 7.2 GT/s |
| Tcase | 76 °C |
| Thermal monitoring technologies | Yes |
| Type | NAS |
| USB port | Yes |
| Weight | 26.8 kg |
| Wi-Fi | No |
| Width | 446.2 mm |
Related products

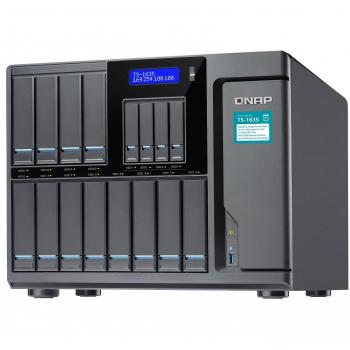

TS-1685 Series NAS
