4K HDMI HDBaseT Signal Processor
A sleek black Aten VE816R AV receiver transmits 4K HDMI up to 4096×2160 over HDBaseT, supporting Cat5e/Cat6 cables and full HDCP. Its metal body, single RJ‑45 port, IR remote, and RS‑232 interface enable effortless plug‑and‑play integration.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | ATEN |
| EAN | 0672792007859 |
| ASIN | B079SW8HRW |
| Model | VE816R |
| MPN | VE816R |
| 3D | Yes |
| AC adapter included | Yes |
| Bandwidth | 340 MHz |
| Cable types supported | Cat5e,Cat6 |
| Colour | Black |
| Connectivity technology | Wired |
| DC-in jack | Yes |
| Depth | 6.54" (166 mm) |
| External power adapter | Yes |
| Firmware upgradeable | Yes |
| HDCP | Yes |
| HDMI Outputs | 1 |
| Height | 1.14" (29 mm) |
| LED indicators | Yes |
| Manual | Yes |
| Material | Metal |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum transfer distance | 5905.5" (150 m) |
| Operating relative humidity | 0 - 80% |
| Operating voltage | 5 V |
| Plug and play | Yes |
| Power consumption | 9.09 W |
| RoHS compliance | Yes |
| Serial interface type | RS-232 |
| Supported Graphics Resolutions | 3840 x 2160,4096 x 2160 |
| Supported video modes | 1080p |
| Type | AV receiver |
| Weight | 23.6 oz (670 g) |
| Width | 4.92" (124.9 mm) |
Related products
ATEN VE801 HDMI HDBaseT-Lite Extender
287.40 GBP
Lindy 70m C6 HDBaseT HDMI & IR Extender
164.92 GBP

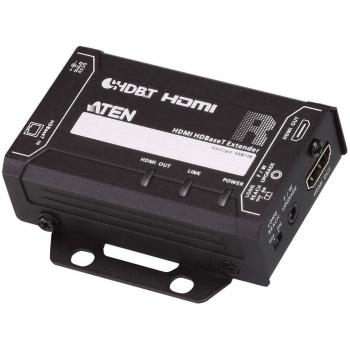

Aten VE811R HDMI HDBaseT Receiver 4K@100m
