| Brand | MSI |
| EAN | 4058154000359 |

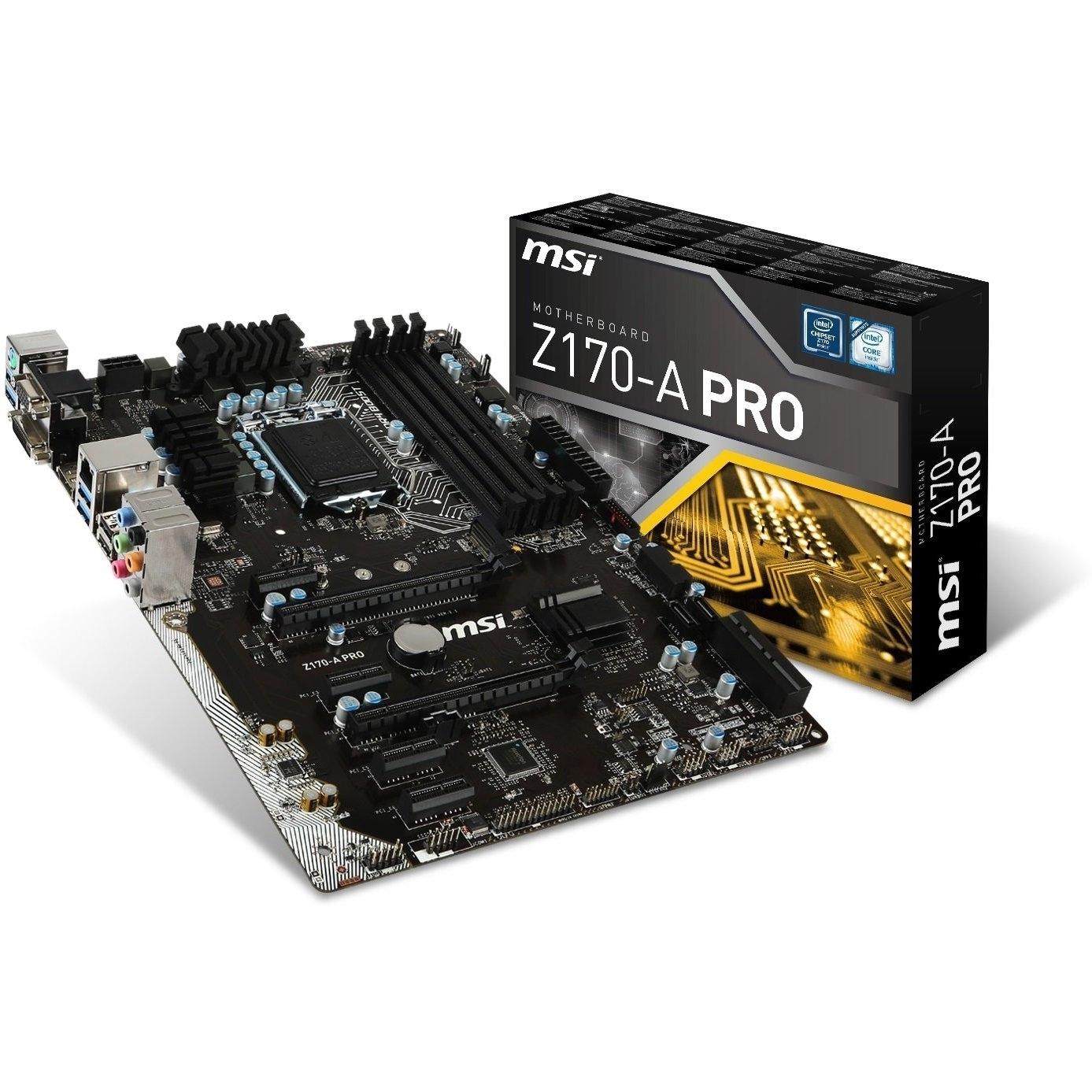

| Model | Z170-A PRO |
| ASIN | B0152T1FQG |
| MPN | Z170-A PRO |
| ACPI version | 5.0 |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Chassis intrusion connector | Yes |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 225 mm |
| DirectX Version | 12.0 |
| DisplayPorts quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Front panel audio connector | Yes |
| LAN controller | Realtek RTL8111H |
| Maximum internal memory | 64 GB |
| Maximum resolution | 4096 x 2304 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel® Z170 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Non-ECC | Yes |
| Number of chassis fan connectors | 3 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 6 |
| Parallel processing technology support | 2-Way CrossFireX |
| PC Health Monitoring | CPU,FAN,Temperature |
| Processor socket | LGA 1151 (Socket H4) |
| Quick installation guide | Yes |
| RAID levels | 0,1,5,10 |
| Supported memory clock speeds | 2133,2400,2600,2800,3000,3200 MHz |
| Supported storage drive interfaces | Serial ATA III |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| Width | 305 mm |
