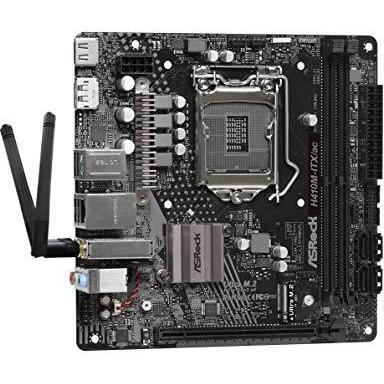

ASRock H410M‑ITX/AC Small Form Factor Intel CPU Board
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | ASRock |
| EAN | 4710483931338 |
| ASIN | B08911KTB3 |
| MPN | H410M-ITX/ac |
| SKU | H410M-ITX/ac |
| 64-bit Support | Yes |
| Addressable RGB | Yes |
| AMD CrossFire Support | N/A |
| Audio | Realtek ALC887 7.1 HD Audio |
| Audio line in ports | 1 x 3.5mm Jack |
| Bluetooth version | 4 |
| Board dimensions | 170 x 170 mm |
| Chassis intrusion connector | 1 x Chassis Intrusion header |
| Chipset | Intel H410 |
| Chipset manufacturer | Intel |
| Cooling fan support | 1 x CPU fan header1 x Chassis/Water Pump fan header1 x Chassis fan header |
| CPU Socket | 1200 |
| Displayport connection | Yes |
| DisplayPorts | 1 x DisplayPort 1.4 |
| Drivers | Yes |
| DVI connection | No |
| Expansion slots | 1 x M.2 Key E 1 x M.2, 22-80, PCIe 1 x PCIe 3.0 x16 |
| Firewire | No |
| Form factor | Mini-ITX |
| Front panel connectors | 1 x Front Panel1 x Front Audio |
| HDMI connection | Yes |
| Integrated Graphics Supported | Yes |
| Integrated Network | Intel I219-V |
| Integrated Sound | Realtek ALC887 |
| Internal USB 3.0 Header | Yes |
| Keyboard/mouse combo port | 1 x PS/2 |
| M.2 Support | Yes |
| Maximum Installed Processors | 0 (1) |
| Maximum memory capacity | 64GB |
| Memory Bus Speed | 2933 / 2800 / 2666 / 2400 / 2133 MHz |
| Memory channel | Dual (2) |
| Memory speed | 2933 MHz |
| Memory Type ECC | ECC/Non-ECC |
| Memory Type R/U | UDIMM (Unbuffered) |
| Motherboard form factor | ITX |
| Motherboard Power Connectors | 4 + 4-Pin |
| Multi GPU Support | No |
| Network Chip | 1 x Intel® I219V (Gigabit LAN) |
| Network Interface Type | 802.11ac WiFi LAN PHY |
| Network Speeds Supported | 10/100/1000 Mbps |
| Number of PCI Express Slots | 1 x PCI Express 3.0 x16 |
| On-board Audio Type | 7.1 |
| On-Board Graphics Connectors | DisplayPort 1.4 HDMI 1.4 |
| On-board RGB Control | ASRock RGB LED |
| Operating Systems Supported | Microsoft Windows 10 64-bit |
| Other Connectors | 1 x M.2, Socket 3, M Key (Type 2280)1 x RGB LED header1 x Addressable LED header |
| Power connector port | 1 x 20+4-pin ATX1 x 4+4-pin EPS |
| Primary GPU Interface | None |
| RAID Support via | Intel® SATA RAID 0/1/10/5 |
| Raid supported | No |
| RGB Header Type | 3-Pin ARGB |
| RJ-45 ports | 1 x RJ-45 |
| SATA III Support | Yes |
| SATA Supported | Yes |
| Software Included | Yes |
| Supported processors | 10th Gen Intel Core Processors |
| USB 3.0 Support | Yes |
| USB 3.1 Support | No |
| USB Connectors | 1 x USB 3.0 header (supports 2 ports)1 x USB 2.0 header (supports 2 ports) |
| VGA connection | No |
| Water Cooled | No |
| Width | 170 mm |
| WiFi Speed | 433 Mbps |
| Wireless Network | Yes |
