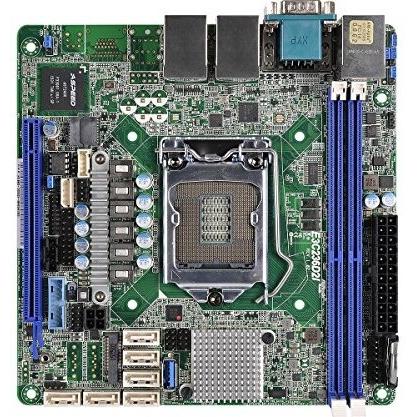

ASRock Rack Motherboard E3C236D2I
235.99 GBP
Intel C236 Mini‑ITX motherboard supports Xeon E3 processors with dual DDR4 slots up to 32 GB, triple Gigabit LAN, IPMI management, M.2 PCIe/SATA, RAID 0/1/5/10, and extensive USB 3.0 and serial I/O for server workloads.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
ASROCK_RACK Asrock Rack E3C236D2I Server Board Intel C236 1151 Mini Itx Ddr4 Dual Gb Lan Ipmi Lan Serial Port
Comp Advance
07-10-2025 14:55:13
| Brand | ASRock |
| EAN | 4717677328820 |
| ASIN | B01B9624AM |
| Model | E3C236D2I |
| MPN | E3C236D2I |
| SKU | E3C236D2I |
| AMD CrossFire Support | Not Supported |
| Audio | N/A |
| BIOS type | UEFI AMI |
| Chipset | Intel C236 |
| Clear CMOS button | Yes |
| COM ports quantity | 1 |
| CPU Socket | 1151 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN ports | 3 |
| Expansion slots | 1 x M.2 PCIe/SATA 1 x PCIe 3.0 x16 |
| Form factor | Mini-ITX |
| HDD interface | Serial ATA III |
| LAN controller | Intel I210 |
| Maximum internal memory | 32768 MB |
| Maximum memory capacity | 32GB (2x16GB) |
| Memory channel | Dual (2) |
| Memory channels | Dual-channel |
| Memory speed | DDR4 - 2133 |
| Memory type | DDR4 |
| Memory Type ECC | ECC/Non-ECC |
| Memory Type R/U | UDIMM (Unbuffered) |
| Network Interface Type | Dual Wired Gigabit LAN (10/100/1000) + Mgmt LAN |
| On-board graphics adapter memory | 256 MB |
| On-Board Graphics Connectors | D-Sub (VGA) |
| Onboard graphics adapter model | Aspeed AST2400 |
| Operating temperature | 10 - 35 °C |
| Primary GPU Interface | PCIe 3.0 (x16) |
| RAID levels | 0,1,5,10 |
| RAID Support via | SATA |
| SATA Support | SATA3 / M.2 |
| Storage Mode Support | RAID 0 RAID 1 RAID 10 RAID 5 |
| Storage temperature | -40 - 70 °C |
| Supported memory clock speeds | 2133 MHz |
| Water Cooled | No |
