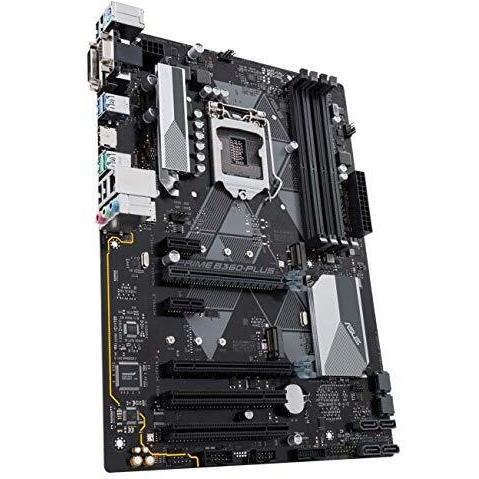

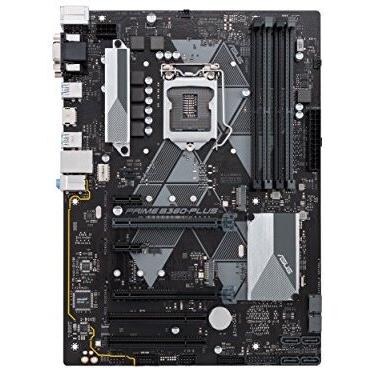

ASUS B360 Motherboard with CSM
Build a stable workstation with the ASUS Prime B360‑Plus/CSM ATX board, offering dual M.2 slots, six SATA III connectors, HDMI and DVI‑D outputs, Gigabit Ethernet, USB 3.1 Gen 2, 7.1‑channel audio, and support for up to 64 GB DDR4 at 2666 MHz.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | ASUS |
| EAN | 4712900980905 |
| Model | 90MB0WB0-M0EAYC |
| MPN | 90MB0WB0-M0EAYC |
| ASIN | B07CM7N9C3 |
| ACPI version | 6.1 |
| ATX Power connector 24-pin | Yes |
| Audio output channels | 7.1 channels |
| BIOS memory size | 128 MB |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel® Pentium® |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 221 mm |
| DVI-D ports | 1 |
| EPS power connector 8-pin | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Front panel audio connector | Yes |
| LAN controller | Realtek RTL8111H |
| Maximum internal memory | 64 GB |
| Maximum resolution | 4096 x 2160 pixels |
| Memory channels | Dual |
| Memory slots type | DIMM |
| Motherboard chipset | Intel® B360 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Non-ECC | Yes |
| Number of chassis fan connectors | 2 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 6 |
| Parallel processing technology support | CrossFireX |
| Processor socket | LGA 1151 (Socket H4) |
| Supported memory clock speeds | 2133,2450,2666 MHz |
| Unbuffered memory | Yes |
| Width | 305 mm |
| Windows operating systems supported | Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64 |
