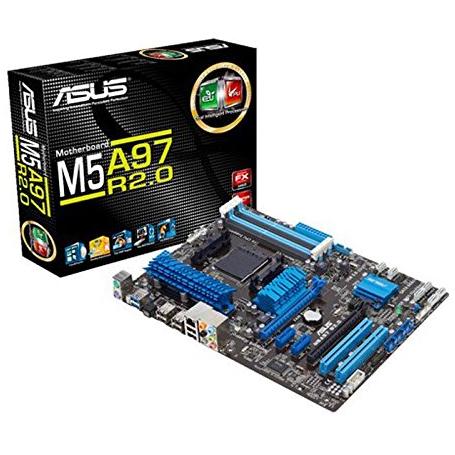

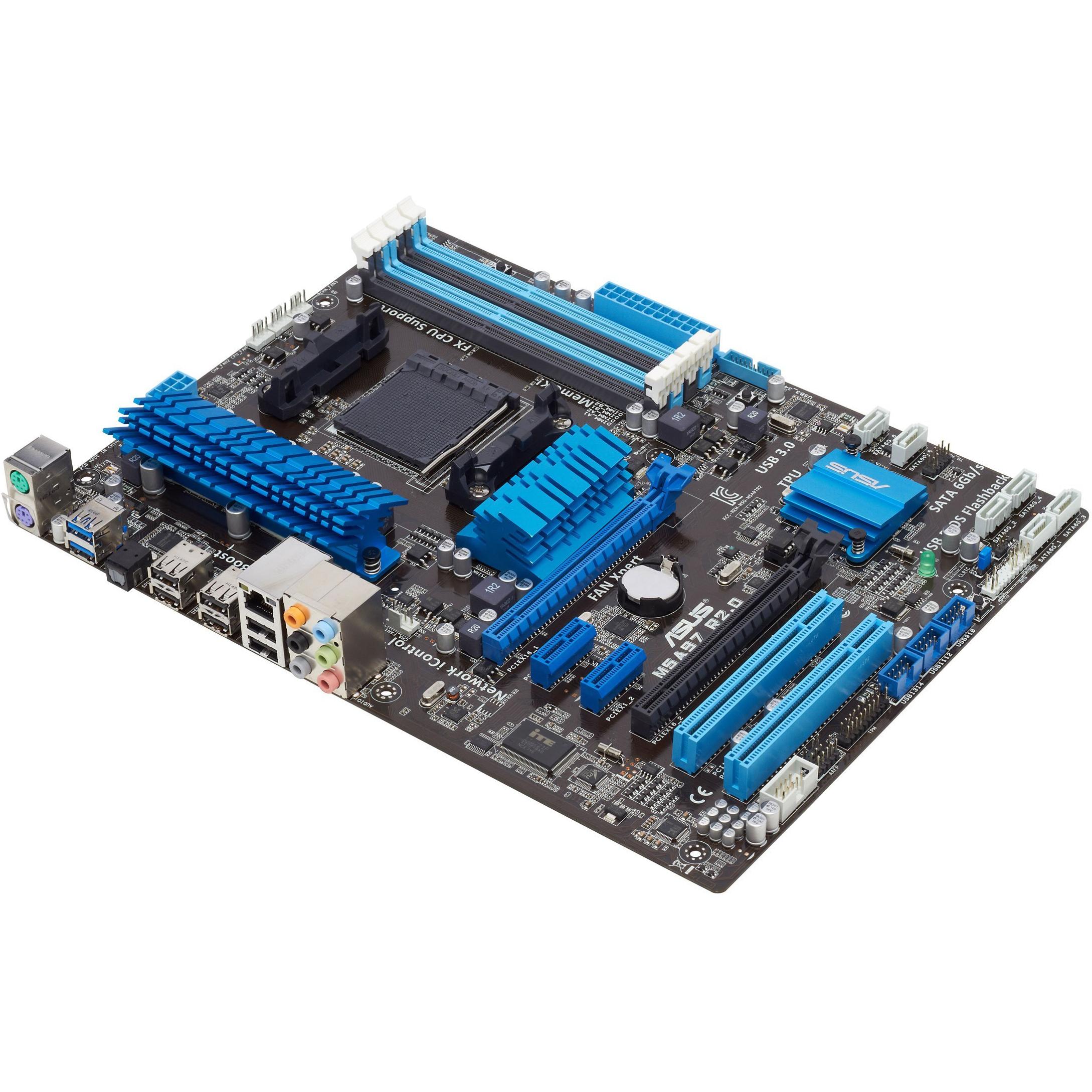

Asus M5A97 R2.0 AMD 970 Motherboard
The Asus M5A97 R2.0 ATX motherboard supports AMD AM3+ CPUs with dual‑channel DDR3 up to 32 GB, offers six SATA III ports, two PCIe x16 for CrossFireX, Realtek ALC887 7.1‑ch audio, Gigabit LAN, USB 3.0 and UEFI BIOS.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | ASUS |
| EAN | 5053973116686 |
| ASIN | B008V9959O |
| Model | M5A97 R2.0 |
| MPN | M5A97 R2.0 |
| ACPI version | 2.0a |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| BIOS memory size | 64 Mbit |
| BIOS type | UEFI |
| Cables included | SATA |
| Clear CMOS jumper | Yes |
| Compatible processor series | AMD Phenom II X2,AMD Phenom II X3,AMD Phenom II X4,AMD Phenom II X6 |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 229 mm |
| Drivers included | Yes |
| ECC | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Front panel audio connector | Yes |
| Headphone outputs | 1 |
| LAN controller | Realtek RTL8111F |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | AMD 970 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Non-ECC | Yes |
| Number of chassis fan connectors | 3 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 6 |
| On-board graphics adapter | No |
| Parallel processing technology support | Quad-GPU CrossFireX |
| PCI Express x1 Slots | 2 |
| Quick installation guide | Yes |
| RAID levels | 0,1,5,10 |
| S/PDIF out connector | Yes |
| S/PDIF out port | Yes |
| Supported memory clock speeds | 1066,1333,1600,1866,2133 MHz |
| Supported storage drive interfaces | Serial ATA III |
| System bus rate | 4.8 GT/s |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| Width | 305 mm |
