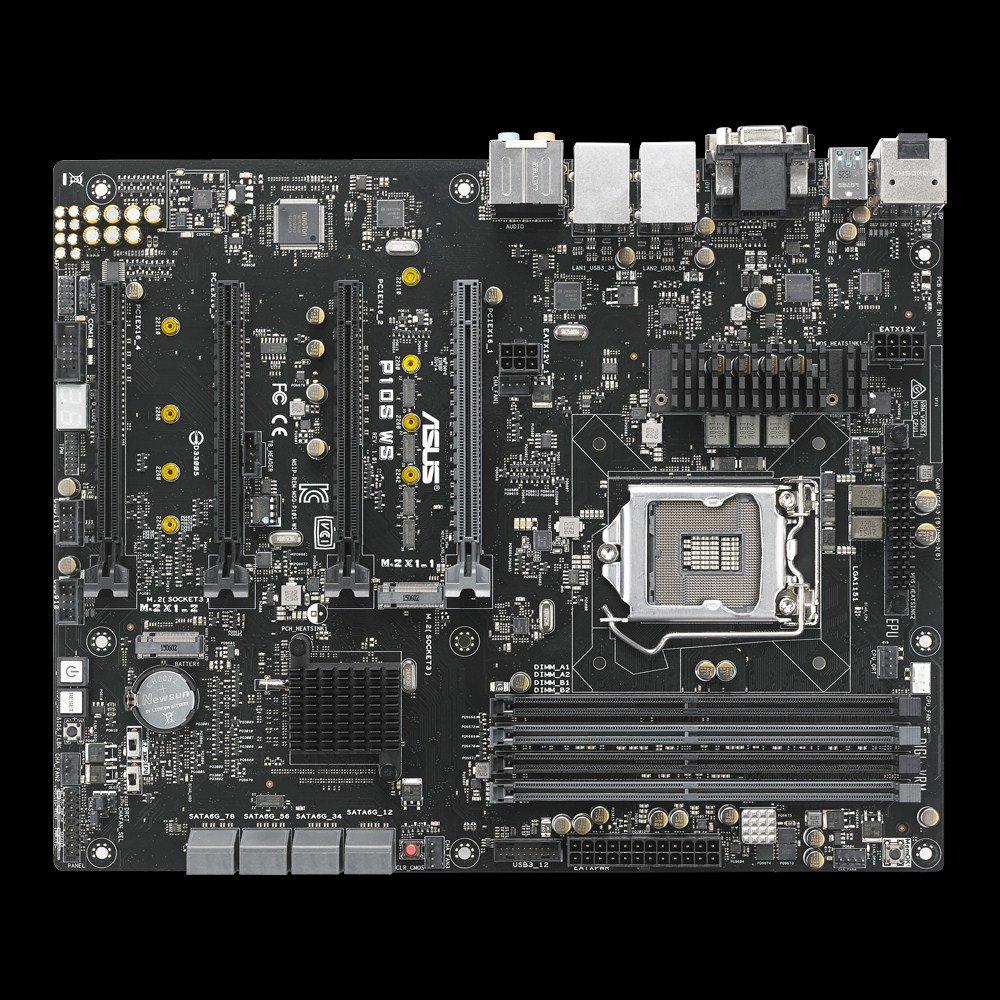

ASUS P10S WS Workstation - Socket 1151
258.99 GBP
Intel C236 ATX motherboard delivers quad‑channel DDR4 up to 64 GB, eight‑channel Realtek audio, dual M.2 NVMe slots, 8 SATA III connectors, 10 GbE plus two Gigabit LAN, single LGA1151 socket, TPM and RAID 0/1/5/10 support.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
Comp Advance
| Brand | ASUS |
| EAN | 4712900268348 |
| ASIN | B01BYMJVMK |
| Model | P10S WS |
| MPN | P10S WS |
| ACPI version | 5.0a |
| ATX Power connector 24-pin | Yes |
| Audio output channels | 8.1 channels |
| BIOS memory size | 16 MB |
| BIOS type | EFI AMI |
| Clear CMOS button | Yes |
| COM ports quantity | 1 |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 244 mm |
| EPS power connector 8-pin | Yes |
| Ethernet interface type | 10 Gigabit Ethernet,Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN ports | 2 |
| Hard drive interface | Serial ATA |
| Intel® Clear Video HD Technology | Yes |
| LAN controller | Intel I210 |
| Maximum internal memory | 65536 MB |
| Memory channels | Quad-channel |
| Microphone in | Yes |
| Motherboard chipset | Intel® C236 |
| Motherboard form factor | ATX |
| Non-ECC | Yes |
| Number of DIMM slots | 4 |
| Number of SATA III connectors | 8 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| RAID levels | 0,1,5,10 |
| RAID support | Yes |
| RAID Support | Yes |
| Supported DIMM module capacities | 1GB,2GB,4GB,8GB,16GB |
| Supported memory clock speeds | 2133 MHz |
| TPM connector | Yes |
| Trusted platform module | Yes |
| USB 2.0 connectors | 3 |
| User guide | Yes |
| User Guide | Yes |
| Wi-Fi | No |
| Width | 305 mm |
