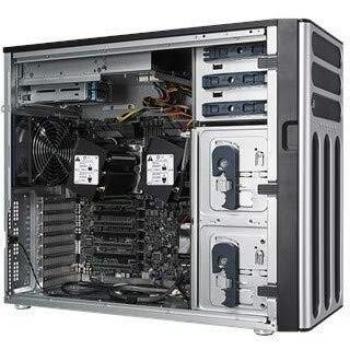

Asus TS700-E7/RS8 Quan LAN Workstation
Powerful dual‑socket Xeon E5‑2600 rack chassis with 800 W PSU, Intel C602 chipset, 16 DDR3 slots up to 512 GB, six SATA III ports, dual Gigabit LAN, AST2300 graphics, and RAID 0/1/5/10 support.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | ASUS |
| EAN | 4716659224792 |
| MPN | 90S81A1010U100UET |
| ASIN | B009KK0966 |
| Model | TS700-E7/RS8 |
| Chassis type | Rack (5U) |
| Compatible processor series | Intel® Xeon® |
| Depth | 545 mm |
| Ethernet interface type | Fast Ethernet,Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Graphics adapter | AST2300 |
| Graphics adapter family | Aspeed |
| Height | 445 mm |
| Intel Xeon series | E5-2600 |
| LAN controller | Intel® I350-AM4 |
| Maximum graphics adapter memory | 16 MB |
| Maximum internal memory | 512 GB |
| Motherboard chipset | Intel® C602 |
| Number of Processors Supported | 2 |
| Number of SATA connectors | 6 |
| Number of storage drives supported | 8 |
| PCI Express slots version | 3.0 |
| Power supply | 800 W |
| Processor family | Intel |
| Processor socket | LGA 2011 (Socket R) |
| RAID levels | 0,1,5,10 |
| Storage drive sizes supported | 3.5" |
| Supported memory types | DDR3-SDRAM |
| Supported storage drive interfaces | Serial ATA II,Serial ATA III |
| USB 2.0 ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Weight | 20 kg |
| Width | 217.5 mm |
