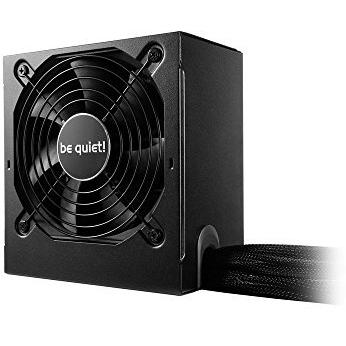

BEQUIET Be Quiet! 600W System Power 9
75.99 GBP
Powerful 600 W ATX PSU delivers dual‑rail +12V up to 48 A, 120 mm fan for quiet cooling, 80 % Bronze efficiency and active PFC. Includes 20+4 ATX, 4+4 CPU, 6 SATA, 4 PCIe connectors, fully wired design.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
Sponsored
Back to the Office
be quiet! System Power 9 power supply unit 600 W 20+4 pin ATX ATX Black
Back to the Office
23-12-2025 22:40:01
| Brand | Be Quiet |
| EAN | 4260052186060 |
| ASIN | B079K5YY31 |
| Model | BN247 |
| MPN | T380697 |
| SKU | T380697 |
| 80 plus certificate | 80 PLUS Bronze |
| ATX version | 2.4 |
| Bearing technology | Sleeve |
| Case colour | Black |
| Combined power (+12V) | 576 W |
| Combined power (+3.3V) | 120 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Connectors | 1 x 4+4-pin ATX 12V 4 x 4-pin Molex 4 x 6+2-pin PCIe 6 x SATA |
| Cooling | Fan |
| CPU Connectors | 1 x 4+4-pin ATX12V |
| Depth | 140 mm |
| Dimensions | 150 x 140 x 86 (WxHxD) |
| Edition | System Power 9 |
| EPS 12V | Yes |
| Fans | 1 x 120mm |
| Frequency Range | 50 Hz |
| Height | 86 mm |
| Hold time | 17 ms |
| Illumination | No |
| Internal +12V Rails | Dual Rail |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Maximum Combined Output +12V | 48 A |
| Maximum Efficiency at 230Vac | 89 % |
| Modular | No |
| Modular cables | No |
| Modularity | Fully Wired |
| Molex connectors | 2 |
| Motherboard Connector | 20+4-pin |
| Motherboard power cable length | 55 cm |
| Motherboard Power Connectors | 4 + 4-Pin |
| Number of sata power connectors | 6 |
| Package type | Retail |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI-E Pin Type | 6+2-Pin |
| Power | 600 W |
| Power factor | 0.95 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Power supply unit (PSU) form factor | ATX |
| Rail 1 +12V | 28 A |
| Safety | CE / CB / TUV / RCM / CU |
| SATA power cable length | 350,550 mm |
| SLI/CrossFire | Yes |
| Standards | OCP / OVP / UVP / SCP / OTP / OPP |
| Sustainability certificates | RoHS, ENERGY STAR |
| Voltage | 200 ~ 240 VAC |
| Weight | 2.03 kg |
| Width | 150 mm |
