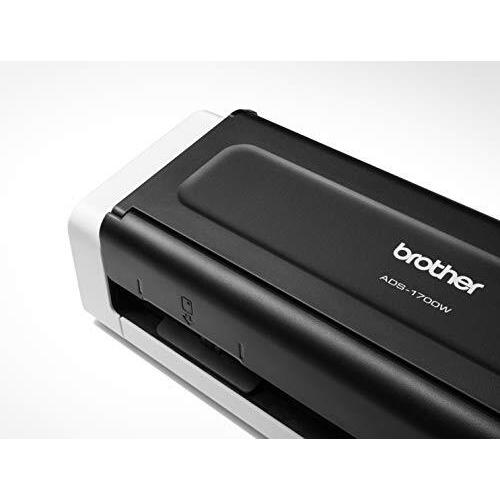

Portable A4 scanner with dual CIS sensors, 600×600 dpi optical resolution and 1200×1200 ppi interpolated, 20‑page automatic feeder, duplex mode, 7.1″ color touch display, Wi‑Fi/Wi‑Fi Direct, USB 3.0, Energy‑Star certified.
| Brand | Brother |
| EAN | 4977766792219 |
| Model | ADS1700WUN1 |
| MPN | ADS1700WUN1 |
| SKU | ADS1700WUN1 |
| ASIN | B07H3B9Z7Q |
| AC adapter included | Yes |
| AC input frequency | 100 - 240 Hz |
| Application | Documents |
| Auto document feeder ADF input capacity | Tot 20 vel |
| Barcode reader | Yes |
| Built-in display | Ja |
| Cables included | AC,USB |
| Certification | GS Mark |
| Colour display | Yes |
| Colour scanning | Yes |
| Depth | 103 mm |
| Display | LCD |
| Display diagonal | 7,1 cm |
| Display Diagonal | 7.11 cm (2.8") |
| Duplex Scanning | central |
| Energy Star certified | Yes |
| Height | 83 mm |
| In stock | 10 Items |
| Input colour depth | 48 bit |
| Input voltage | 50 - 60 V |
| Internal memory | 512 MB |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra |
| Manual | Yes |
| Maximum document size | A4 |
| Maximum duty cycle | 10000 pages per month |
| Maximum scan size | 215.9 x 863 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Output colour depth | 24 bit |
| Package depth | 157 mm |
| Package Height | 200 mm |
| Package width | 380 mm |
| Power consumption (off) | 0.1 W |
| Power consumption (StandBy) | 4.5 W |
| Power supply type | AC |
| Quick start guide | Yes |
| Scan drivers | ICA,SANE,TWAIN,WIA |
| Scan file formats | JPEG,PDF,TIFF |
| Scan to | E-mail,E-mail Server,FTP,File,Image,OCR,USB |
| Scanner type | Document scanner |
| Scanning media types supported | Business Card,Plain paper,Plastic Card,Thick paper |
| Scanning noise level | 62 dB |
| Security algorithms | 64-bit WEP,128-bit WEP,WPA-PSK,WPA2-PSK |
| Sensor type | Dual CIS |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016 |
| Sleep mode | Yes |
| Standard interfaces | USB 2.0,USB 3.2 Gen 1 (3.1 Gen 1),Wireless LAN |
| Touchscreen | Yes |
| USB connector type | Micro-USB,USB Type-B |
| USB port | Yes |
| USB Version | 3.2 Gen 1 (3.1 Gen 1) |
| Web-based management | Yes |
| Weight | 1.41 kg |
| Wi-Fi | Yes |
| Wi-Fi Direct | Yes |
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Width | 300 mm |
