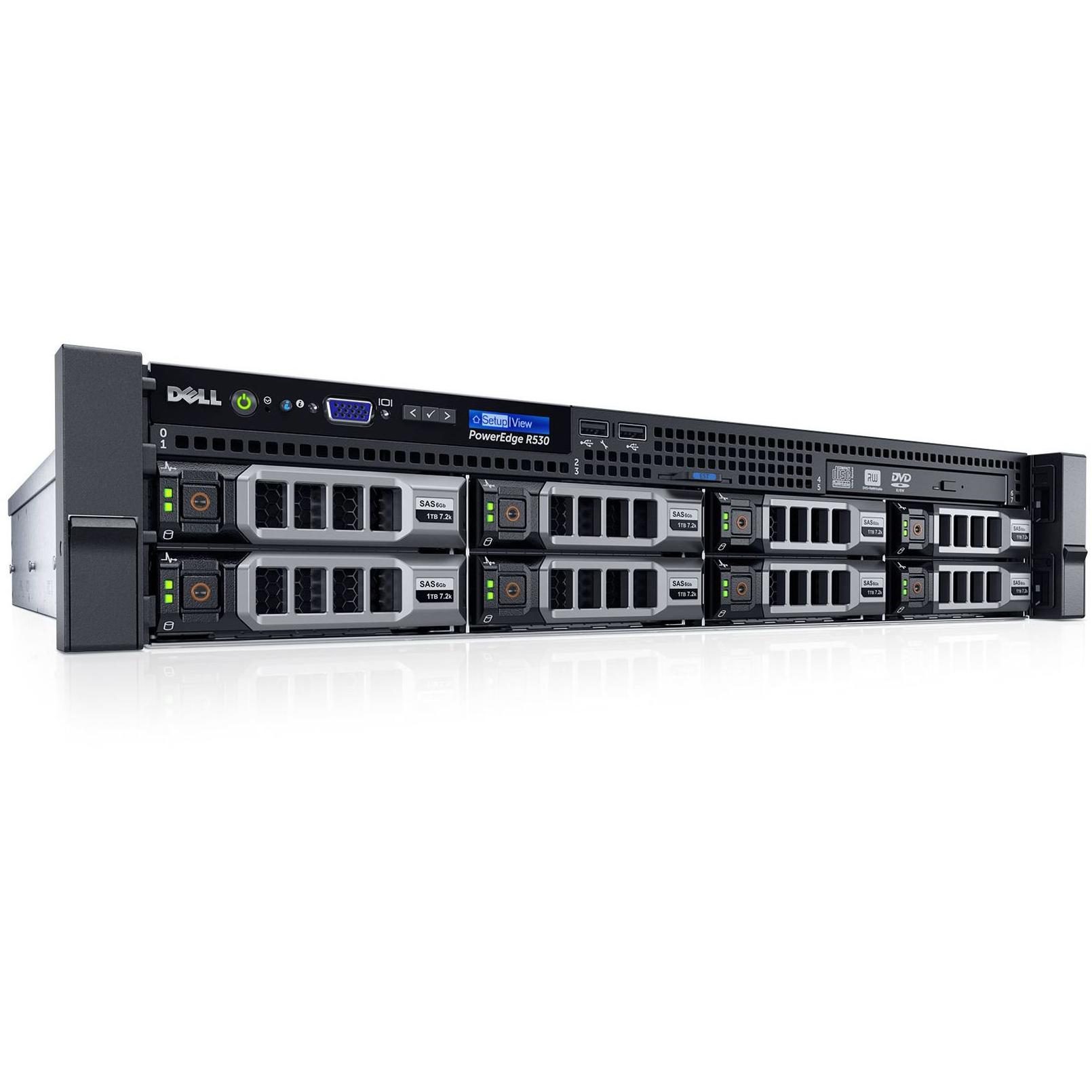

DELL PowerEdge R530 E5-2620V4 Rack Server
The Dell PowerEdge R530 is a compact 2U rack server powered by an Intel Xeon E5‑2620V4 at 2.1 GHz, offering 8 cores, 20 MB Smart Cache and up to 192 GB DDR4 memory for demanding workloads. It features single‑CPU operation, SATA 3.5" storage, PCIe 3.0 slots, Gigabit Ethernet, and built‑in Matrox G200 graphics for management access.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Dell |
| EAN | 5397063830695 |
| ASIN | B01GK6Y06W |
| Model | R530-0695 |
| MPN | R530-0695 |
| Bus Type | QPI |
| Cabling technology | 10/100/1000Base-T(X) |
| Chassis type | Rack (2U) |
| Compatible processor series | Intel® Xeon® |
| Dell E-Value Code | PER53003 |
| Depth | 668 mm |
| ECC | Yes |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Enhanced intel speedstep technology | Yes |
| Ethernet interface type | Fast Ethernet,Gigabit Ethernet |
| Ethernet LAN | Yes |
| Execute disable bit | Yes |
| FSB Parity | No |
| Graphics adapter | G200 |
| Graphics adapter family | Matrox |
| HDD Capacity | 1000 GB |
| HDD interface | Serial ATA |
| HDD size | 3.5" |
| HDD speed | 7200 RPM |
| Height | 86.8 mm |
| Hot-Plug support | Yes |
| Idle states | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel enhanced halt state | Yes |
| Intel flex memory access | No |
| Intel trusted execution technology | Yes |
| Intel TSX-NI | Yes |
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 192 GB |
| Maximum internal memory supported by processor | 1536 GB |
| Maximum number of PCI Express lanes | 40 |
| Memory channels supported by processor | Quad |
| Memory clock speed | 2133 MHz |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory slots | 12 |
| Motherboard chipset | Intel C610 |
| Non-operating altitude | 0 - 12000 m |
| Number of HDDs installed | 1 |
| Number of HDDs supported | 8 |
| Operating altitude | 0 - 3048 m |
| Optical drive type | DVD±RW |
| PCI Express configurations | x4, x8, x16 |
| PCI Express slots version | 3.0 |
| Processor ARK ID | 92986 |
| Processor boost frequency | 3 GHz |
| Processor cache | 20 MB |
| Processor cache type | Smart Cache |
| Processor code | SR2R6 |
| Processor codename | Broadwell |
| Processor family | Intel® Xeon® E5 v4 |
| Processor frequency | 2.1 GHz |
| Processor lithography | 14 nm |
| Processor manufacturer | Intel |
| Processor model | E5-2620V4 |
| Processor operating modes | 64-bit |
| Processor package size | 52.5 x 51 mm |
| Processor series | Intel Xeon E5-2600 v4 |
| Processor socket | LGA 2011-v3 |
| RAID support | Yes |
| Stepping | R0 |
| Tcase | 74 °C |
| Thermal monitoring technologies | Yes |
| Width | 482.4 mm |
