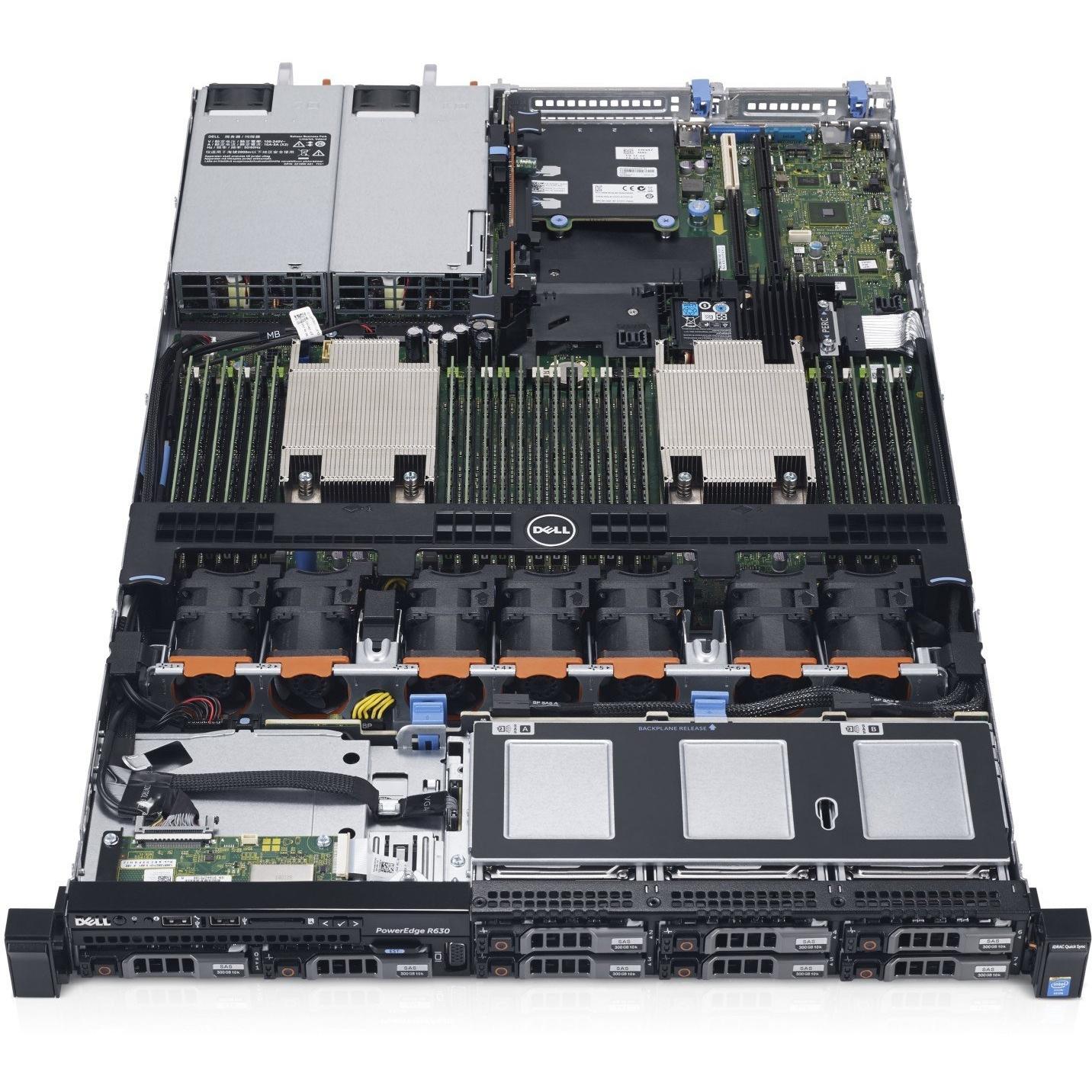

DELL PowerEdge R630 2.2 GHz Server with Intel Xeon E5 v4 Processor - Rack Servers
Dual‑core Intel Xeon E5‑2650V4 at 2.2 GHz powers this 1U rack server, supporting up to 768 GB DDR4, hot‑swap SAS drives, Gigabit Ethernet, LCD console, ECC memory and full RAID 0–60 for robust workloads.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Dell |
| EAN | 5397063830701 |
| ASIN | B01GKJW1EW |
| Model | R630-0701 |
| MPN | R630-0701 |
| Built-in display | Yes |
| Bus Type | QPI |
| Cabling technology | 10/100/1000Base-T(X) |
| Card reader integrated | Yes |
| Chassis type | Rack (1U) |
| Compatible memory cards | SD |
| Compatible processor series | Intel® Xeon® |
| Dell E-Value Code | PER63005a |
| Depth | 700.5 mm |
| Display | LCD |
| ECC | Yes |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Enhanced intel speedstep technology | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Execute disable bit | Yes |
| FSB Parity | No |
| HDD Capacity | 300 GB |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD size | 2.5" |
| Height | 42.8 mm |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Idle states | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel enhanced halt state | Yes |
| Intel flex memory access | No |
| Intel trusted execution technology | Yes |
| Intel TSX-NI | Yes |
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| LAN controller | Broadcom 5720 |
| Maximum internal memory | 768 GB |
| Maximum internal memory supported by processor | 1536 GB |
| Maximum number of PCI Express lanes | 40 |
| Maximum number of SMP processors | 2 |
| Maximum storage capacity | 14 TB |
| Memory channels supported by processor | Quad |
| Memory clock speed | 2133 MHz |
| Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
| Memory slots | 24 |
| Motherboard chipset | Intel C610 |
| Non-operating altitude | 0 - 12000 m |
| Number of HDDs supported | 8 |
| Operating altitude | 0 - 3048 m |
| Optical drive type | DVD-RW |
| PCI Express configurations | x4, x8, x16 |
| PCI Express slots version | 3.0 |
| Power supply | 750 W |
| Power supply input frequency | 50 - 60 Hz |
| Processor ARK ID | 91767 |
| Processor boost frequency | 2.9 GHz |
| Processor cache type | Smart Cache |
| Processor code | SR2N3 |
| Processor codename | Broadwell |
| Processor cores | 12 |
| Processor family | Intel® Xeon® E5 v4 |
| Processor frequency | 2.2 GHz |
| Processor manufacturer | Intel |
| Processor model | E5-2650V4 |
| Processor operating modes | 64-bit |
| Processor package size | 52.5 x 51 mm |
| Processor series | Intel Xeon E5-2600 v4 |
| Processor socket | LGA 2011-v3 |
| Rack mounting | Yes |
| RAID levels | 0,1,5,6,10,50,60 |
| RAID support | Yes |
| Stepping | M0 |
| Supported instruction sets | AVX 2.0 |
| Supported storage drive interfaces | SAS,Serial ATA |
| System bus rate | 9.6 GT/s |
| Tcase | 80 °C |
| Thermal monitoring technologies | Yes |
| Width | 482.3 mm |
