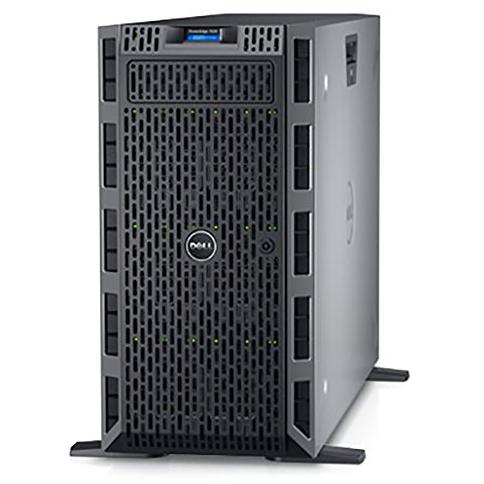

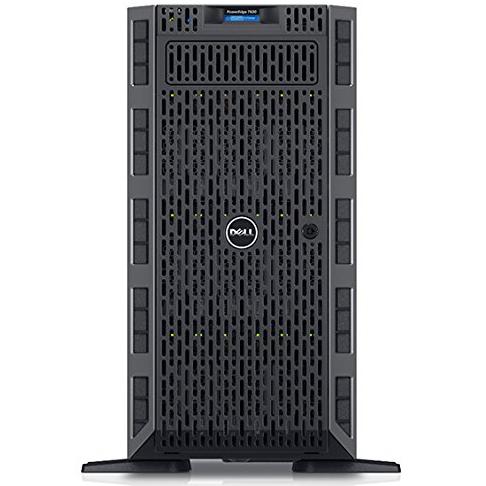

DELL PowerEdge T630 E5-2609V3 Tower
The Dell PowerEdge T630 tower houses a 1.9 GHz Xeon E5‑2609V3 with 15 MB Smart Cache, 8 GB DDR4 ECC memory, and dual PCIe lanes for expansion. It supports hot‑plug SAS drives, Gigabit Ethernet, and Windows/Linux servers.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Dell |
| EAN | 5397063774173 |
| ASIN | B01DTMXYHG |
| Model | T630-4173 |
| MPN | T630-4173 |
| Bus Type | QPI |
| Cabling technology | 10/100/1000Base-T(X) |
| Chassis type | Tower (5U) |
| Depth | 750.9 mm |
| ECC | Yes |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Enhanced intel speedstep technology | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Execute disable bit | Yes |
| FSB Parity | No |
| Graphics adapter | G200 |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD size | 3.5" |
| Height | 87.3 mm |
| Hot-Plug support | Yes |
| Idle states | Yes |
| Intel 64 | Yes |
| Intel clear video technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel enhanced halt state | Yes |
| Intel Fast Memory Access | No |
| Intel FDI Technology | No |
| Intel flex memory access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel rapid storage technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel trusted execution technology | Yes |
| Intel TSX-NI | No |
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum graphics adapter memory | 16 MB |
| Maximum internal memory | 768 GB |
| Maximum number of PCI Express lanes | 40 |
| Memory channels supported by processor | Quad |
| Memory clock speed | 2133 MHz |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory slots | 24 |
| Motherboard chipset | Intel® C612 |
| Number of HDDs installed | 1 |
| Number of QPI links | 2 |
| Operating system installed | No |
| Optical drive type | DVD±RW |
| PCI Express configurations | x4, x8, x16 |
| PCI Express slots version | 3.0 |
| Processor ARK ID | 81897 |
| Processor cache | 15 MB |
| Processor cache type | Smart Cache |
| Processor codename | Haswell |
| Processor cores | 6 |
| Processor family | Intel Xeon E5 v3 |
| Processor frequency | 1.9 GHz |
| Processor lithography | 22 nm |
| Processor model | E5-2609V3 |
| Processor operating modes | 64-bit |
| Processor package size | 52.5 mm |
| Processor series | Intel Xeon E5-2600 v3 |
| Processor socket | LGA 2011-v3 |
| RAID support | Yes |
| Supported instruction sets | AVX 2.0 |
| Supported storage drive interfaces | Serial ATA |
| Tcase | 70.9 °C |
| Thermal monitoring technologies | Yes |
| Total storage capacity | 1000 GB |
| Width | 482 mm |
