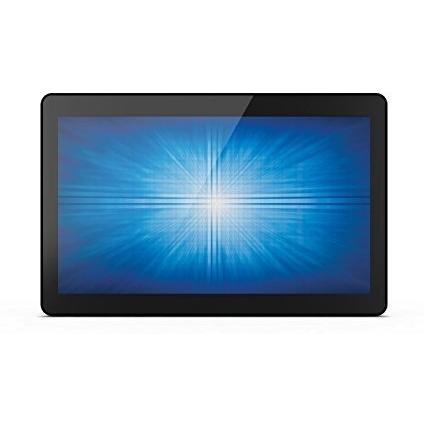

Elo Touch E222775 15i2 15" LED Display
A sleek black all‑in‑one PC featuring a 15.6” Full HD touch screen, an Intel Core i5‑6500TE processor, 4 GB DDR3L RAM, 128 GB SSD, built‑in speakers, Wi‑Fi, Bluetooth 4, and Ethernet for versatile use.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Elo Touch Solution |
| EAN | 0834619007545 |
| ASIN | B01M09QYA8 |
| Model | E222775 |
| MPN | E222775 |
| SKU | E222775 |
| AC adapter input voltage | 100 |
| Aspect ratio | 16:9 |
| Bluetooth version | 4 |
| Built-in speakers | Yes |
| Bus Type | DMI3 |
| Certification | UL/cUL, FCC, TUV, CB, CE, VCCI |
| Colour | Black |
| Depth | 39 mm |
| Display brightness | 300 cd/m² |
| Display diagonal | 15.6" |
| Display resolution | 1920x1080 |
| Ethernet LAN | Yes |
| Ethernet LAN ports | 1 |
| Graphics & IMC lithography | 14 nm |
| Height | 249 mm |
| Internal memory | 2048 MB |
| Maximum internal memory | 8192 MB |
| Maximum internal memory supported by processor | 65536 MB |
| Maximum PCI Express lanes | 16 |
| Memory channels supported by processor | Dual |
| Memory clock speed | 1600 MHz |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Memory slots type | SO-DIMM |
| Memory types supported by processor | DDR3L-SDRAM,DDR4-SDRAM |
| Memory voltage supported by processor | 1.35 V |
| On-board graphics adapter DirectX version | 12 |
| On-board graphics adapter dynamic frequency | 1000 MHz |
| On-board graphics adapter family | Intel® HD Graphics |
| Onboard graphics adapter model | Intel® HD Graphics 530 |
| Operating relative humidity | 20 - 80 % |
| Operating system installed | No |
| Operating temperature | 0 - 35 °C |
| Optical drive type | No |
| Panel type | TFT |
| Processor ARK ID | 88186 |
| Processor boost frequency | 3.3 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Processor code | SR2LR |
| Processor codename | Skylake |
| Processor model | i5-6500TE |
| Processor operating modes | 64-bit |
| Processor socket | LGA 1151 (Socket H4) |
| Screen shape | Flat |
| Solid-state drive capacity | 131072 MB |
| Stepping | R0 |
| Storage media | SSD |
| Storage relative humidity | 5 - 95 % |
| Storage temperature | -20 - 60 °C |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| System bus rate | 8 GT/s |
| Thermal design power | 35 W |
| Tilt angle range | 85 - 170° |
| Touch technology | Multi-touch |
| Touchscreen | Yes |
| Wall mountable | Yes |
| Weight | 2.56 kg |
| Wi-Fi | Yes |
| Wi-Fi standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Width | 387 mm |
