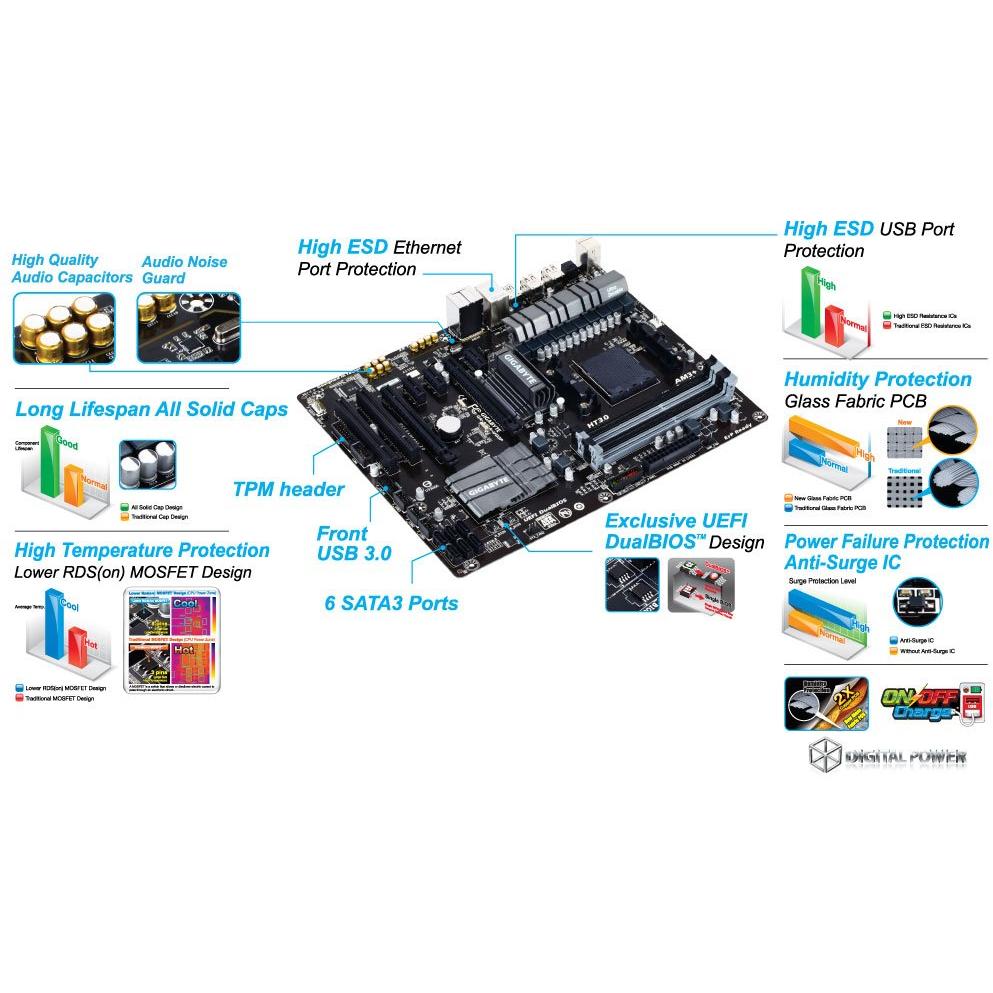

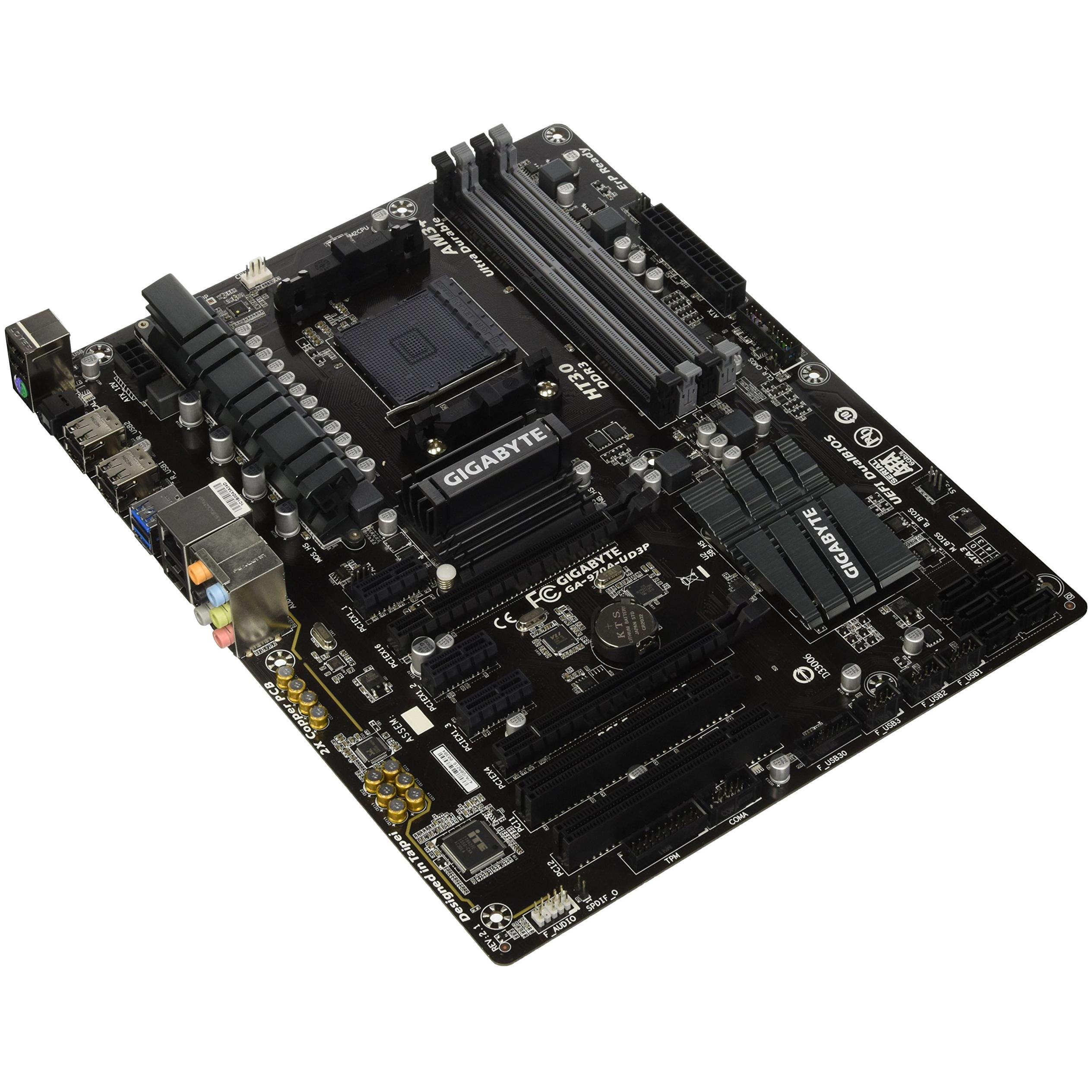

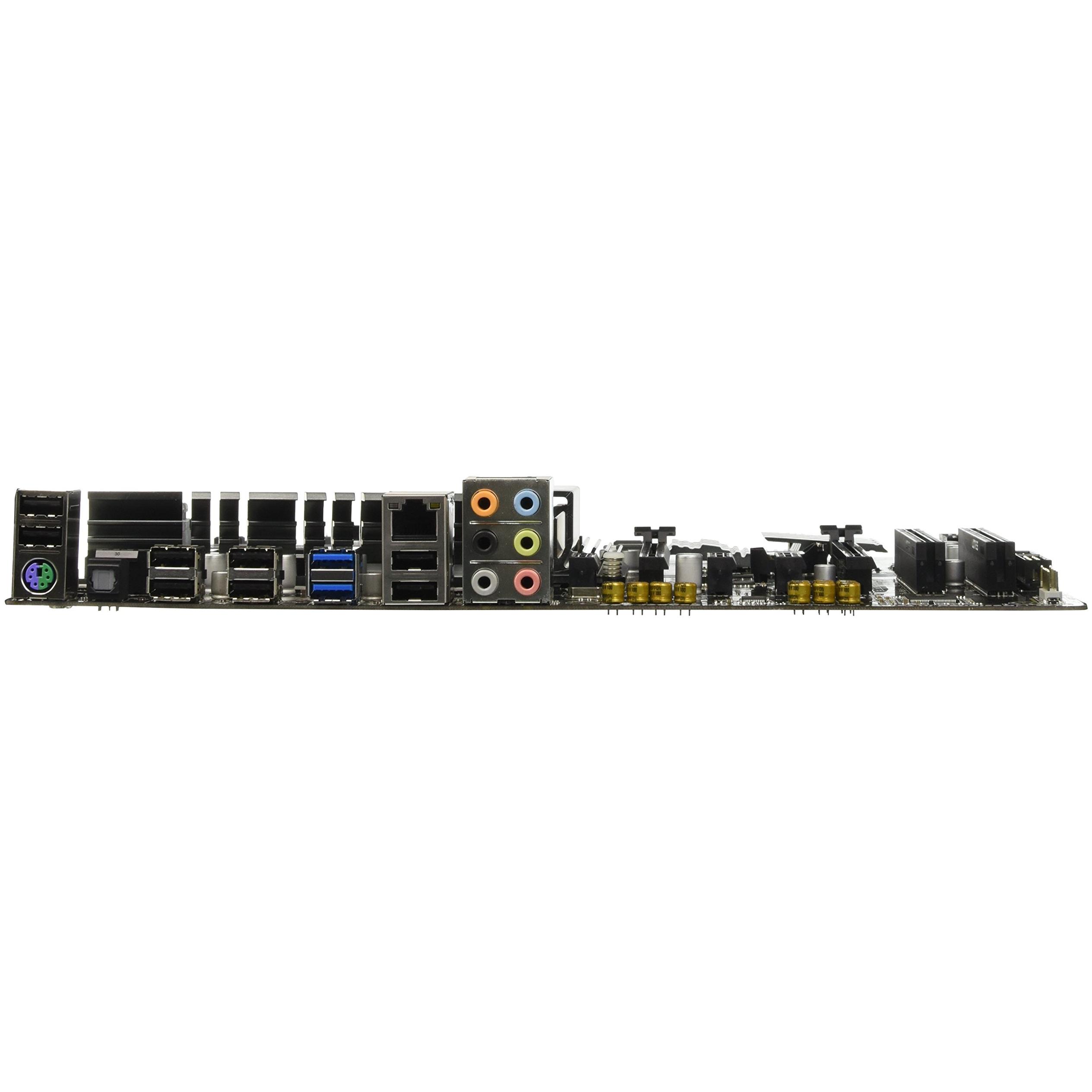

Gigabyte 970A-UD3P Gigabit Ethernet LAN Motherboard
Gigabyte 970A‑UD3P offers a solid AM3+ platform with dual‑channel DDR3 up to 32 GB, six SATA III connectors, 7.1‑channel VIA audio, two PCIe slots, and Gigabit Ethernet for reliable connectivity.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Gigabyte |
| EAN | 0172304258491 |
| ASIN | B00F5R9O46 |
| Model | GA-970A-UD3P |
| MPN | GA-970A-UD3P |
| ACPI version | 2.0a |
| Audio chip | VIA VT2021 |
| Audio output channels | 7.1 channels |
| BIOS memory size | 32 Mbit |
| BIOS type | EFI AMI |
| Clear CMOS jumper | Yes |
| Component for | PC |
| Cooling type | Passive |
| CPU fan connector | Yes |
| Depth | 244 mm |
| Digital Audio Optical Out | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Front panel audio connector | Yes |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | AMD 970 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Number of chassis fan connectors | 2 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 6 |
| PC Health Monitoring | CPU,FAN,Power supply,Temperature |
| Processor socket | Socket AM3+ |
| RAID levels | 0,1,5,10,JBOD |
| S/PDIF out connector | Yes |
| S/PDIF out port | Yes |
| Supported memory clock speeds | 1066,1333,1600,1866,2000 MHz |
| Supported storage drive interfaces | Serial ATA III |
| System bus rate | 4.8 GT/s |
| TPM connector | Yes |
| USB 2.0 ports quantity | 8 |
| Width | 305 mm |
