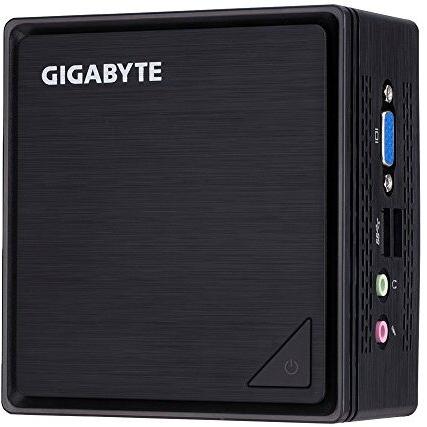

Gigabyte BRIX Ultra Compact Barebone Mini PC Kit, GB-BPCE-3350C (rev. 1.0), Dual Core Passive Cooled, Intel Celeron N3350 1.10GHz, BGA 1296, Black (Requires HDD/SSD & RAM)
Ultra‑compact Gigabyte BRIX barebone houses a dual‑core Intel Celeron N3350 with passive heatsink, one DDR3L SO‑DIMM slot, HDMI 1.4 and VGA outputs, Gigabit Ethernet, Wi‑Fi 5, Bluetooth 4.0, four USB 3.0 ports, and VESA mounting for flexible deployment.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Gigabyte |
| EAN | 4719331262181 |
| ASIN | B06XNLL9T2 |
| Model | GB-BPCE-3350C |
| MPN | GB-BPCE-3350C |
| AC adapter output current | 2.1 A |
| AC adapter output voltage | 19 |
| AC input voltage | 100 - 240 |
| ACPI version | 5.0 |
| ATX Power connector 24-pin | Yes |
| Audio output channels | 5.1 channels |
| Audio system | Realtek ALC891 |
| Base GPU Speed | N/A |
| BIOS memory size | 32 MB |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 4 |
| Built-in processor | Yes |
| Burst frequency | 2.4 GHz |
| Cables included | SATA |
| Card reader integrated | No |
| Chassis type | 0.69L sized PC |
| Chipset | System-on-Chip |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Clock speed | 1.1 GHz |
| Colour | Black |
| Compatible operating systems | WIN10 64bit |
| Component for | PC |
| Connectivity technology | Wired |
| CPU Cooler | Passive Heatsink |
| CPU fan connector | Yes |
| CPU Included | Yes |
| CPU Model | N3350 |
| CPU Socket | Integrated CPU |
| CPU Type | Intel Celeron |
| DC-in jack | Yes |
| Depth | 114.4 mm |
| Dimensions | 107.6 x 56.1 x 114.4 (mm WxHxD) |
| Discrete GPU | No |
| Discrete graphics support | Yes |
| DisplayPort version | 1.2 |
| Displayports quantity | 1 |
| Displays Supported | 3 |
| Drive bays | 1 x 2.5" Internal (up to 9.5mm thickness) |
| ECC | Yes |
| Embedded options available | No |
| Enhanced intel speedstep technology | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Execute disable bit | Yes |
| Expansion slots | 1 x M.2, 22-30 (Occupied by WiFi Card) |
| Form factor | mini PC |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Graphics adapter | HD Graphics 500 |
| Graphics adapter family | Intel |
| Graphics interface | On-board |
| HDCP | Yes |
| HDMI version | 1.4 |
| Height | 56.1 mm |
| Idle states | Yes |
| Intel 64 | Yes |
| Intel clear video technology | Yes |
| Intel Extreme Memory Profile XMP | Yes |
| Intel Optane Memory Ready | Yes |
| Intel rapid storage technology | No |
| Intel smart connect technology | No |
| Intel Stable Image Platform Program | No |
| Intel trusted execution technology | No |
| Intel Virtualization Technology for Directed I/O | Yes |
| Intel VT-x with Extended Page Tables | Yes |
| Intel® AES New instructions | Yes |
| Intel® Anti-Theft Technology | No |
| Intel® Clear Video HD Technology | Yes |
| Intel® High Definition Audio | Yes |
| Intel® Hyper Threading Technology | No |
| Intel® Identity Protection Technology | Yes |
| Intel® Insider™ | No |
| Intel® InTru™ 3D Technology | No |
| Intel® OS Guard | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage | No |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® vPro™ Technology | No |
| Intel® Wireless Display | No |
| Internal I/O | 1 x SATA III - 6Gb/s |
| Keyboard / mouse included | No |
| L2 cache | 2 MB |
| LAN controller | Realtek RTL8111HS |
| Manual | Yes |
| Maximum GPU Resolution | 3840x2160 @30Hz |
| Maximum graphics adapter memory | 1024 MB |
| Maximum internal memory | 8 GB |
| Maximum memory capacity | 8GB (1x8GB) |
| Maximum resolution | 3840 x 2160 pixels |
| Memory channels | Dual |
| Memory included | No |
| Memory slots type | SO-DIMM |
| Memory speed | DDR3L - 1333 DDR3L - 1600 DDR3L - 1866 |
| Memory Type ECC | Non-ECC |
| Memory Type R/U | UDIMM (Unbuffered) |
| Memory voltage | 1.35 V |
| MIC port | Yes |
| Microphone in | Yes |
| Motherboard form factor | Bespoke/Custom |
| Multi-GPU Configuration | No |
| Network Chip | 1 x Intel 802.11ac WiFi/ BT4.2 Module (433Mbps) 1 x Realtek RTL8111HS (Gigabit LAN) |
| Network Interface Type | 802.11ac WiFi LAN Wired Gigabit LAN (10/100/1000) |
| Non-ECC | Yes |
| On-board graphics adapter | Yes |
| On-board/Integrated Graphics | Yes |
| Operating system | O/S Not Included - Please Buy Separately |
| Operating system included | No |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| PC health monitoring | Fan, Temperature, Voltage |
| PCI Express slots version | 2.0 |
| Power source type | ATX |
| Processor boost frequency | 2.40 GHz |
| Processor frequency | 1.10 GHz |
| Processor socket | BGA 1296 |
| Product Type | Mini PC barebone |
| Quick installation guide | Yes |
| RAID levels | 0, 1, 5, 10 |
| RAID Support | Not Supported |
| Remote control included | No |
| S/PDIF out port | Yes |
| Storage drive included | No |
| Storage drive interface | Serial ATA III |
| Storage drive sizes supported | 2.5" |
| Supported memory clock speeds | 1333,1600,1866 MHz |
| Supported memory types | DDR3-SDRAM,DDR3L-SDRAM |
| Supported storage drive types | HDD |
| Thermal design power | 6 W |
| Thermal monitoring technologies | Yes |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| Unlocked CPU | No |
| VESA Mountable | Yes |
| VESA Mounting | Yes |
| VESA mounting | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | IEEE 802.11ac |
| Width | 107.6 mm |
| Wired network | Yes |
