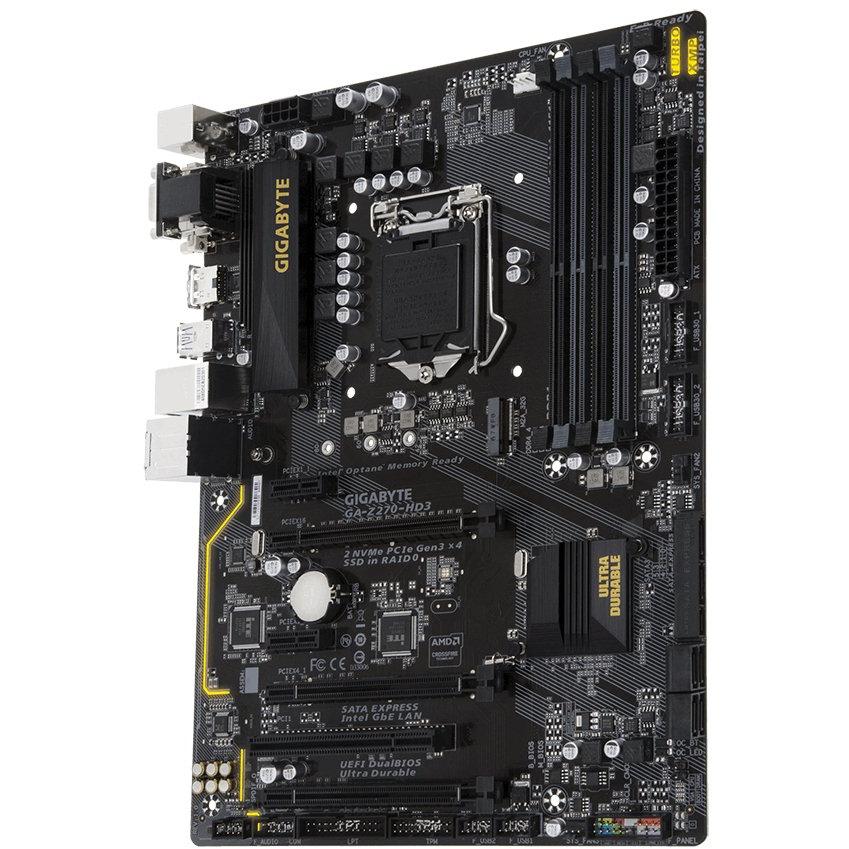

GIGABYTE GA-Z270-HD3 Motherboard
108.99 GBP
Durable ATX motherboard powered by Intel Z270, it supports up to 64 GB DDR4 dual‑channel memory, six SATA III drives, triple PCIe x16 slots for GPUs, and features USB 3.1 Gen 1, HDMI, DVI-D, Ethernet, 7.1 audio, and TPM support.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
Comp Advance
| Brand | Gigabyte |
| EAN | 4719331848330 |
| ASIN | B01MUG09MD |
| Model | GA-Z270-HD3 |
| MPN | GA-Z270-HD3 |
| ACPI version | 5.0 |
| Audio output channels | 7.1 channels |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 305 mm |
| DVI-D ports quantity | 1 |
| Ethernet LAN | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Linux operating systems supported | Yes |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel® Z270 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Non-ECC | Yes |
| Number of chassis fan connectors | 3 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 6 |
| Parallel processing technology support | CrossFireX |
| PCI Express x1 Slots | 2 |
| Processor socket | LGA 1151 (Socket H4) |
| RAID levels | 0,1,5,10 |
| S/PDIF out connector | Yes |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866 MHz |
| Supported storage drive types | HDD,SSD |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| Width | 225 mm |
