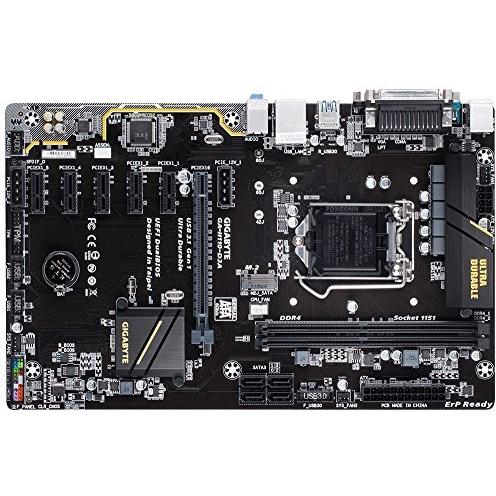

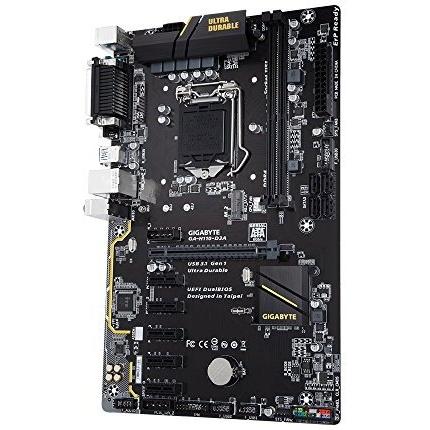

GIGABYTE Intel H110 Crypto Mining Board
Gigabyte H110‑D3A supports Intel LGA1151 CPUs with dual DDR4 slots up to 32 GB, a single M.2 slot for NVMe, PCIe 3.0 x16 GPU expansion, Gigabit Ethernet, Realtek ALC887 audio, USB 3.1 Gen 1 and UEFI BIOS for stable mining setups.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
Gigabyte H110-D3A, Intel (LGA1151) DDR4 m.2 GB LAN, ATX Motherboard
tab-retail.co.uk
16-11-2025 10:14:14
Comp Advance
| Brand | Gigabyte |
| EAN | 4719331801847 |
| ASIN | B072NDFT1D |
| Model | GA-H110-D3A |
| MPN | GA-H110-D3A |
| ACPI version | 5.0 |
| AMD CrossFire Support | Not Supported |
| ATX Power connector 24-pin | Yes |
| Audio | 7.1 Channel HD Audio |
| Audio chip | Realtek ALC887 |
| BIOS memory size | 64 Mbit |
| BIOS type | UEFI AMI |
| Board dimensions | 305 x 190 mm |
| Bundled software | Norton Internet Security, cFosSpeed |
| Chipset | Intel H110 |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Component for | PC |
| CPU fan connector | Yes |
| CPU Socket | 1151 |
| Depth | 190 mm |
| ECC | Yes |
| EPS power connector 8-pin | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN ports | 1 |
| Expansion slots | 1 x M.2, 22-42/60/80, PCIe 5 x PCIe 2.0 x1 1 x PCIe 3.0 x16 |
| Form factor | ATX |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Graphics adapter | HD Graphics |
| Graphics adapter family | Intel |
| Intel Extreme Memory Profile XMP | Yes |
| Maximum graphics adapter memory | 1000 MB |
| Maximum internal memory | 32768 MB |
| Maximum resolution | 1920 x 1200 pixels |
| Memory channel | Dual (2) |
| Memory channels | Dual |
| Memory slots type | DIMM |
| Memory speed | DDR4 - 2133 DDR4 - 2400 |
| Memory type | DDR4 |
| Memory Type ECC | Non-ECC |
| Memory Type R/U | UDIMM (Unbuffered) |
| Microphone in | Yes |
| Network Interface Type | Wired Gigabit LAN (10/100/1000) |
| Non-ECC | Yes |
| Number of chassis fan connectors | 3 |
| On-board graphics adapter | Yes |
| On-Board Graphics Connectors | D-Sub (VGA) |
| PC Health Monitoring | FAN,Temperature,Voltage |
| PCI Express x1 Gen 2.x slots | 5 |
| Primary GPU Interface | PCIe (x16) |
| Processor socket | LGA 1151 (Socket H4) |
| QPI Speed | N/A |
| Rear I/O Connectors | 1 x Parallel (LPT) 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x Serial (COM) |
| Supported memory clock speeds | 2133,2400 MHz |
| TPM connector | Yes |
| Water Cooled | No |
| Width | 305 mm |
