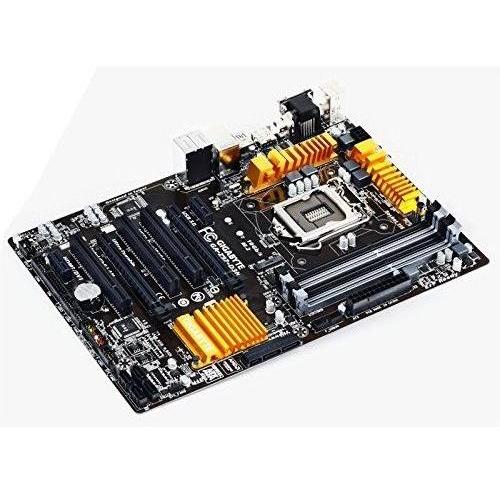

Gigabyte Z97-D3H Z97 Motherboard
Build a powerful desktop with the Gigabyte Z97‑D3H ATX board, powered by Intel Z97, supporting up to 32 GB DDR3 dual‑channel, Realtek ALC1150 7.1‑ch audio, HDMI 1.4a, USB 3.0, SATA RAID, and a single PCIe x16 slot for GPUs.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Gigabyte |
| EAN | 4719331816643 |
| ASIN | B00K9R1MYW |
| MPN | GA-Z97-D3H |
| Model | Z97-D3H |
| ACPI version | 5.0 |
| Audio chip | Realtek ALC1150 |
| Audio output channels | 7.1 channels |
| BIOS memory size | 64 Mbit |
| BIOS type | UEFI AMI |
| Bluetooth | No |
| Compatible processor series | Intel® Celeron® |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 214 mm |
| DVI-D ports quantity | 1 |
| Ethernet LAN | Yes |
| Front panel audio connector | Yes |
| HDMI version | 1.4a |
| Headphone outputs | 6 |
| Maximum graphics adapter memory | 1000 MB |
| Maximum internal memory | 32 GB |
| Maximum resolution | 4096 x 2160 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel® Z97 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Non-ECC | Yes |
| Number of memory slots | 4 |
| Number of SATA connectors | 7 |
| PCI Express x1 Slots | 2 |
| PCI slots | 3 |
| Processor socket | LGA 1150 (Socket H3) |
| RAID levels | 0,1,5,10 |
| S/PDIF out connector | Yes |
| Supported memory clock speeds | 1333,1600 MHz |
| Supported storage drive interfaces | Serial ATA |
| TPM connector | Yes |
| Width | 305 mm |
| Windows operating systems supported | Yes |
