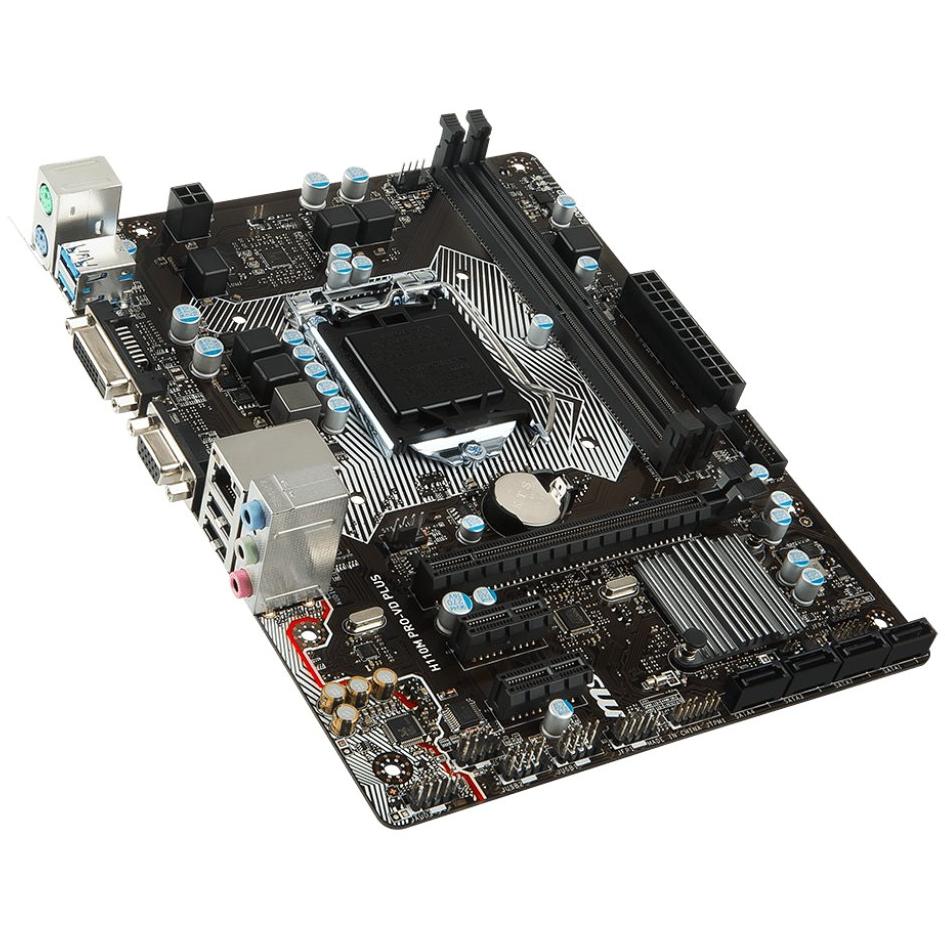

H110M‑PRO Plus Intel 6th Gen Board
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | MSI |
| EAN | 4719072461058 |
| ASIN | B01GGBQ39S |
| Model | H110M PRO-VD PLUS |
| MPN | H110M PRO-VD PLUS |
| ACPI version | 5.0 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| BIOS memory size | 64 Mbit |
| BIOS type | UEFI AMI |
| Chassis intrusion connector | Yes |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 173 mm |
| DVI-D ports quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| LAN controller | Realtek RTL8111H |
| Maximum internal memory | 32 GB |
| Maximum resolution | 2048 x 1536 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel® H110 |
| Motherboard chipset family | Intel |
| Motherboard form factor | Micro ATX |
| Non-ECC | Yes |
| Number of memory slots | 2 |
| Number of SATA III connectors | 4 |
| Power source type | ATX |
| Processor socket | LGA 1151 (Socket H4) |
| Supported memory clock speeds | 2133 MHz |
| Supported storage drive interfaces | Serial ATA III |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| Width | 226 mm |
