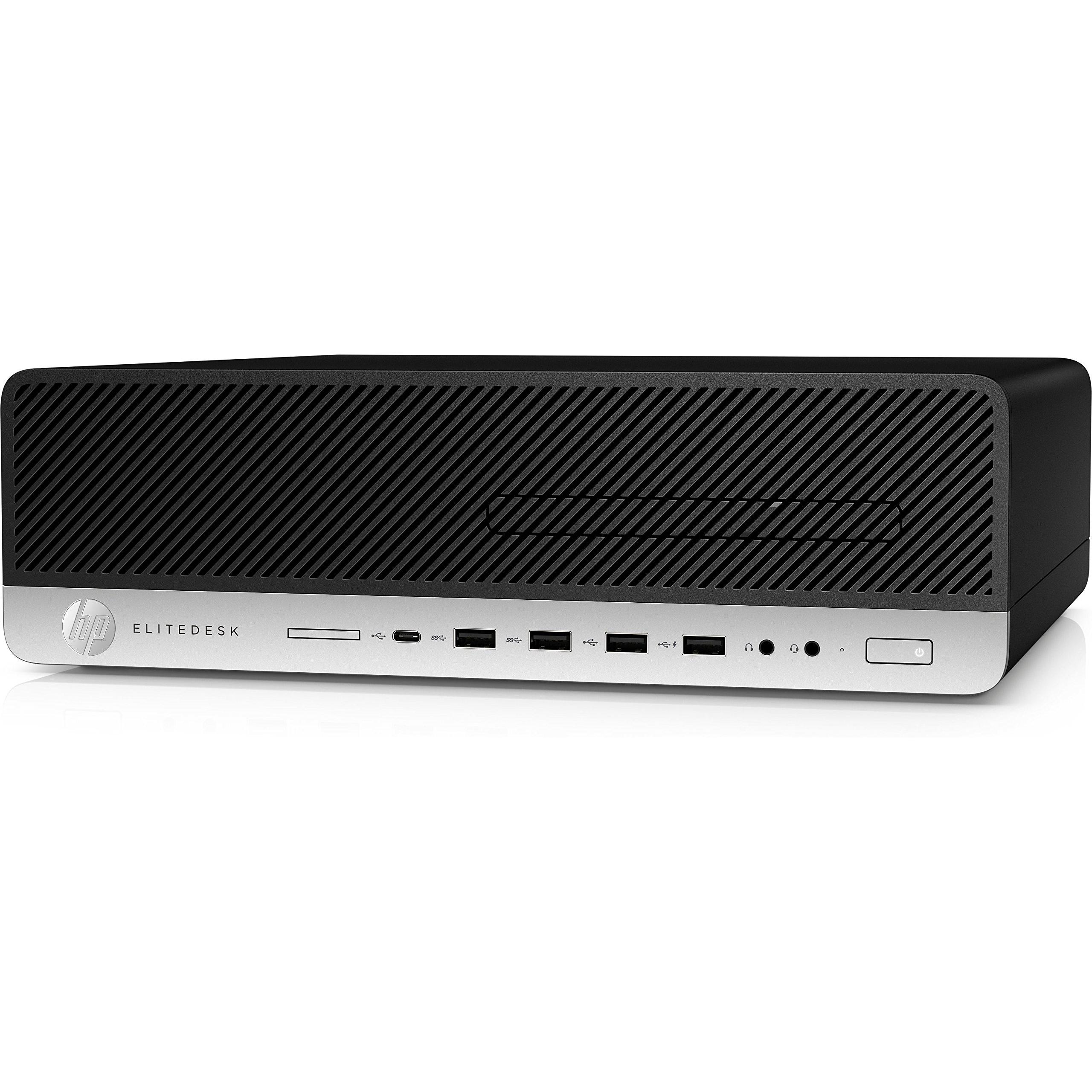

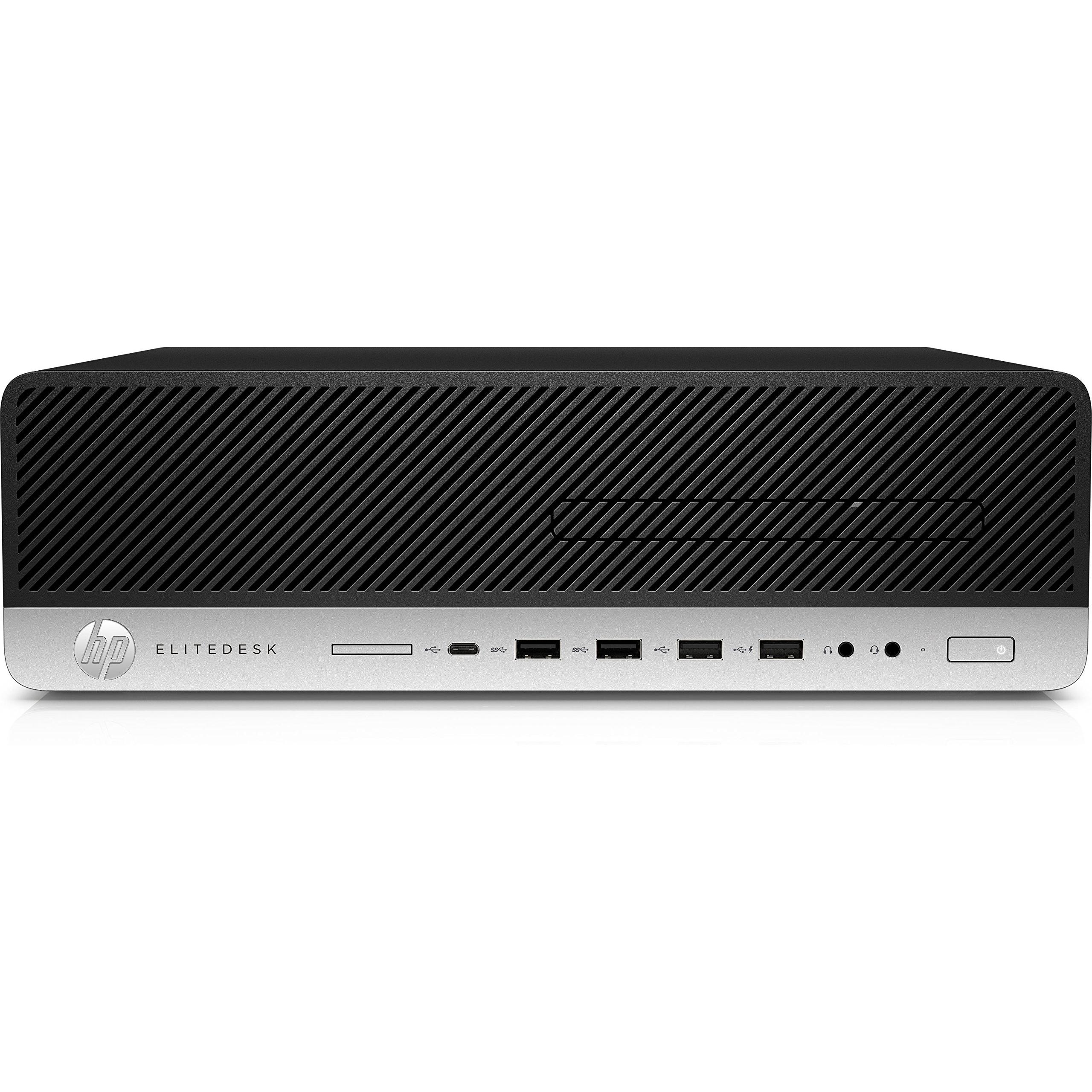

HP EliteDesk 800 G3 Small Form Factor Core i5-7500 Desktop Computer
Efficiently handle office workloads with the HP EliteDesk 800 G3 SFF, powered by a 3.4 GHz Intel Core i5‑7500, 8 GB DDR4, and a 256 GB SSD. Dual DisplayPort outputs support high‑resolution displays, while integrated Gigabit Ethernet, Realtek audio, and multiple USB ports provide connectivity in a compact 100 mm wide chassis.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | HP |
| EAN | 0190781877806 |
| Model | 1HK66EA |
| MPN | 1HK66EA |
| ASIN | B06W2KL8DL |
| Audio chip | Realtek ALC221 |
| Bus Type | DMI3 |
| Chassis type | SFF |
| Country of origin | China |
| Depth | 338 mm |
| Discrete graphics adapter | No |
| Discrete graphics adapter model | Not available |
| Display included | No |
| DisplayPorts quantity | 2 |
| DVI port | No |
| ECC supported by processor | No |
| Embedded options available | No |
| Enhanced intel speedstep technology | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Execute disable bit | Yes |
| Headphone outputs | 1 |
| Height | 308 mm |
| HP ePrint | Yes |
| HP Support Assistant | Yes |
| Idle states | Yes |
| Intel 64 | Yes |
| Intel clear video technology | Yes |
| Intel enhanced halt state | Yes |
| Intel segment tagging | Enterprise |
| Intel trusted execution technology | Yes |
| Intel TSX-NI | Yes |
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Keyboard included | No |
| Line-in | Yes |
| Line-out | Yes |
| Maximum internal memory | 64 GB |
| Maximum number of PCI Express lanes | 16 |
| Memory channels | Dual-channel |
| Memory clock speed | 2400 MHz |
| Memory clock speeds supported by processor | 1333,1600,2133,2400 MHz |
| Memory types supported by processor | DDR3L-SDRAM,DDR4-SDRAM |
| Memory voltage supported by processor | 1.35 V |
| Microphone in | No |
| Motherboard chipset | Intel® Q270 |
| Mouse included | No |
| On-board graphics adapter | Yes |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter ID | 5912 |
| On-board graphics adapter model | Intel® HD Graphics 630 |
| On-board graphics adapter OpenGL version | 4.4 |
| Operating system installed | Windows 10 Pro |
| Optical drive type | DVD±RW |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| PCI Express slots version | 3.0 |
| Power supply | 180 W |
| Processor ARK ID | 97123 |
| Processor boost frequency | 3.8 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Processor code | SR335 |
| Processor codename | Kaby Lake |
| Processor family | 7th gen Intel® Core™ i5 |
| Processor lithography | 14 nm |
| Processor manufacturer | Intel |
| Processor model | i5-7500 |
| Processor package size | 37.5 x 37.5 mm |
| Processor socket | LGA 1151 (Socket H4) |
| Product Type | PC |
| SSD Capacity | 256 GB |
| SSD interface | Serial ATA |
| Stepping | B0 |
| Storage media | SSD |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Thermal monitoring technologies | Yes |
| Thermal solution specification | PCG 2015C |
| Tjunction | 100 °C |
| Weight | 5.31 kg |
