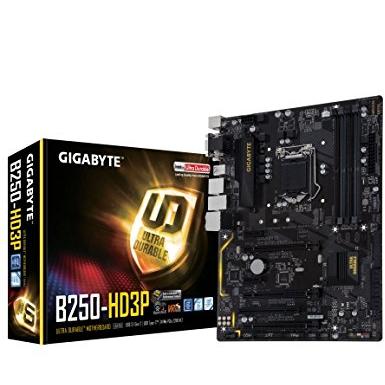

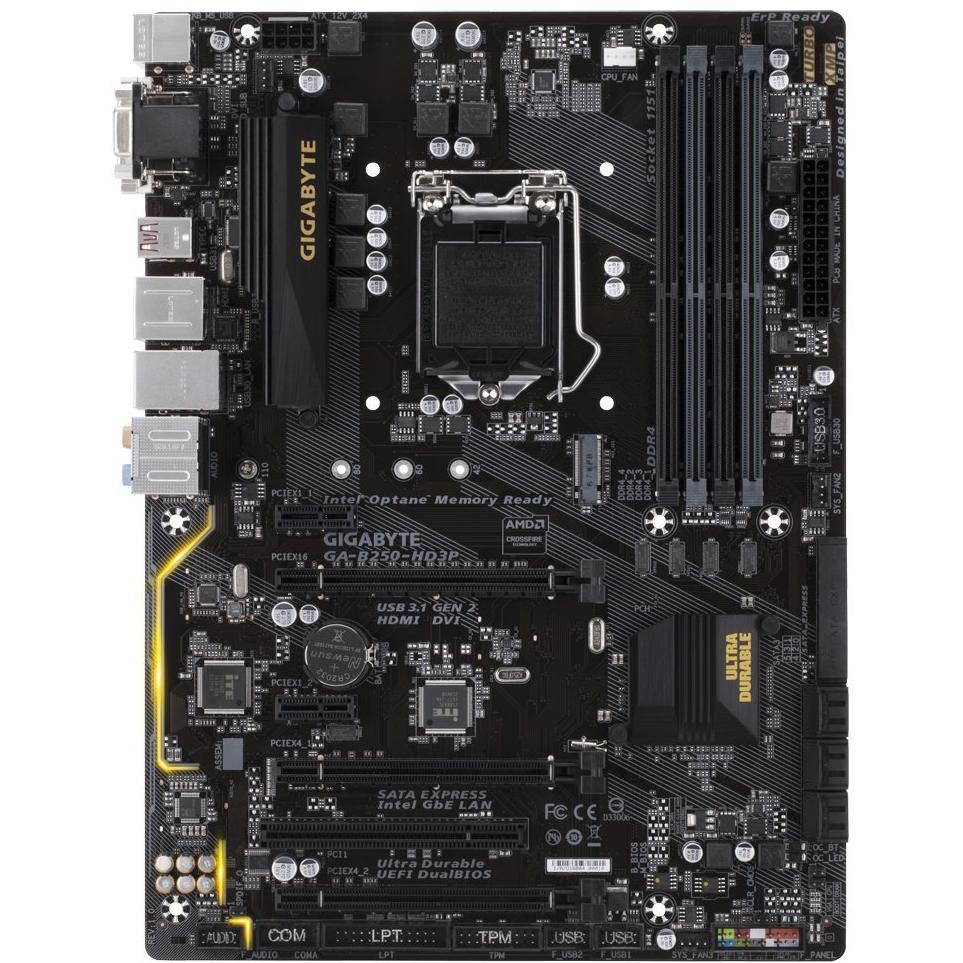

Intel 7th Gen CPU Platform – GA‑B250‑HD3P Motherboard
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Gigabyte |
| EAN | 4719331847258 |
| ASIN | B01NBP032T |
| Model | GA-B250-HD3P |
| MPN | GA-B250-HD3P |
| ACPI version | 5.0 |
| Audio output channels | 7.1 channels |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 305 mm |
| DVI-D ports quantity | 1 |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Linux operating systems supported | Yes |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel® B250 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Non-ECC | Yes |
| Number of memory slots | 4 |
| Number of SATA III connectors | 6 |
| PCI Express x1 Slots | 2 |
| Processor socket | LGA 1151 (Socket H4) |
| S/PDIF out connector | Yes |
| Supported memory clock speeds | 2133,2400 MHz |
| Supported storage drive types | HDD,SSD |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| Width | 225 mm |
