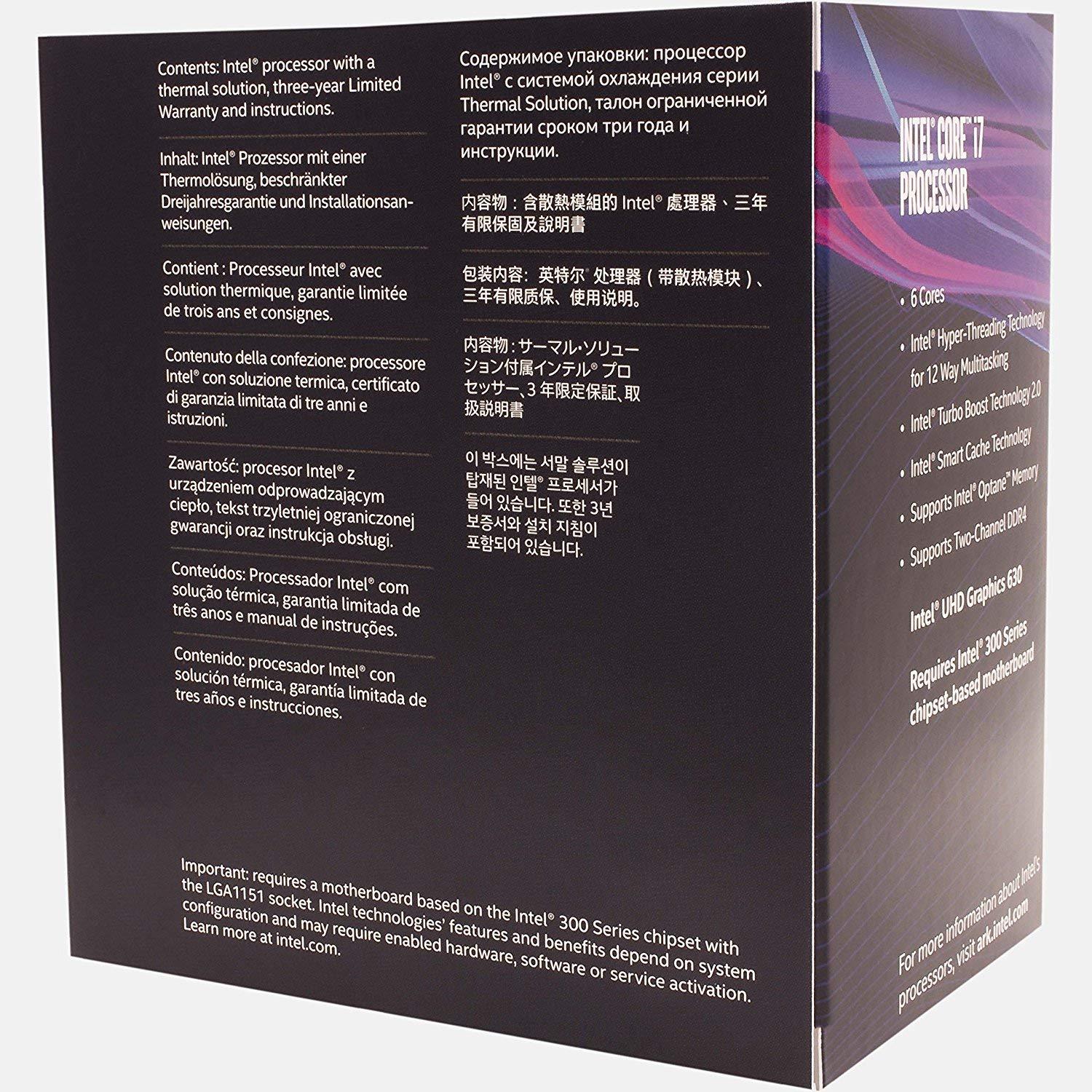

Intel BX80684I78700 Core i7-8700 Hexa-Core Processor
Six‑core, twelve‑thread Intel Core i7‑8700 runs at 3.2 GHz base and boosts to 4.6 GHz, featuring 12 MB Smart Cache and UHD 630 graphics for 4K@60Hz; supports DDR4‑2666 dual‑channel, 65W TDP, LGA1151 socket.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Intel |
| EAN | 5032037108591 |
| ASIN | B07598HLB4 |
| Model | BX80684I78700 |
| MPN | BX80684I78700 |
| Architecture | 64-bit |
| Box | Yes |
| Bus bandwidth | 8 |
| Bus Type | DMI3 |
| Bus type units | GT/s |
| Cache | 12 MB |
| Component for | PC |
| Cooler included | Yes |
| Core count | Hexa Core |
| CPU Brand | Intel |
| CPU Family | Intel Core i7 |
| CPU Socket | Socket 1151 |
| CPU Speed | 3.2 GHz |
| ECC | No |
| Embedded options available | Yes |
| Enhanced intel speedstep technology | Yes |
| Execute disable bit | Yes |
| Execution units | 24 |
| Form factor | Processor |
| Graphics chipset | Intel HD Graphics |
| Idle states | Yes |
| Integrated Graphics | Yes |
| Intel 64 | Yes |
| Intel clear video technology | Yes |
| Intel enhanced halt state | Yes |
| Intel Identity Protection Technology version | 1 |
| Intel trusted execution technology | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| L1 Cache | 384 KB |
| L2 cache | 1.5 MB |
| Launch date | Q4'17 |
| Market segment | DT |
| Maximum internal memory | 65536 MB |
| Maximum memory | 128 GB |
| Maximum number of PCI Express lanes | 16 |
| Maximum resolution & refresh rate (DisplayPort) | 4096x2304@60Hz |
| Memory channels | Dual-channel |
| Memory channels supported by processor | Dual |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Number of cores | 6 |
| On-board graphics adapter | Yes |
| On-board graphics adapter 4K support | Yes |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter dynamic frequency | 1200 MHz |
| On-board graphics adapter ID | 0x3E92 |
| On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel) | 4096 x 2304 pixels |
| On-board graphics adapter model | Intel® UHD Graphics 630 |
| On-board graphics adapter outputs supported | DisplayPort,Embedded DisplayPort (eDP),HDMI |
| On-board graphics adapter refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| Package depth | 116 mm |
| Package Height | 101 mm |
| Package width | 70 mm |
| PCI Express CEM Revision | 3.0 |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| Processor ARK ID | 126686 |
| Processor boost frequency | 4.6 GHz |
| Processor brand name | 8th Gen Intel Core i78th Gen Intel Core i7 Processor |
| Processor cache type | Smart Cache |
| Processor codename | Coffee Lake |
| Processor family | 8th gen Intel® Core™ i7 |
| Processor lithography | 14 nm |
| Processor model | i7-8700 |
| Processor number | 8700 |
| Processor package size | 37.5 x 37.5 mm |
| Processor socket | LGA 1151 (Socket H4) |
| Product family | Intel Core Processors |
| Status | Launched |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Thermal design power | 65 W |
| Thermal monitoring technologies | Yes |
| Thermal solution specification | PCG 2015C |
