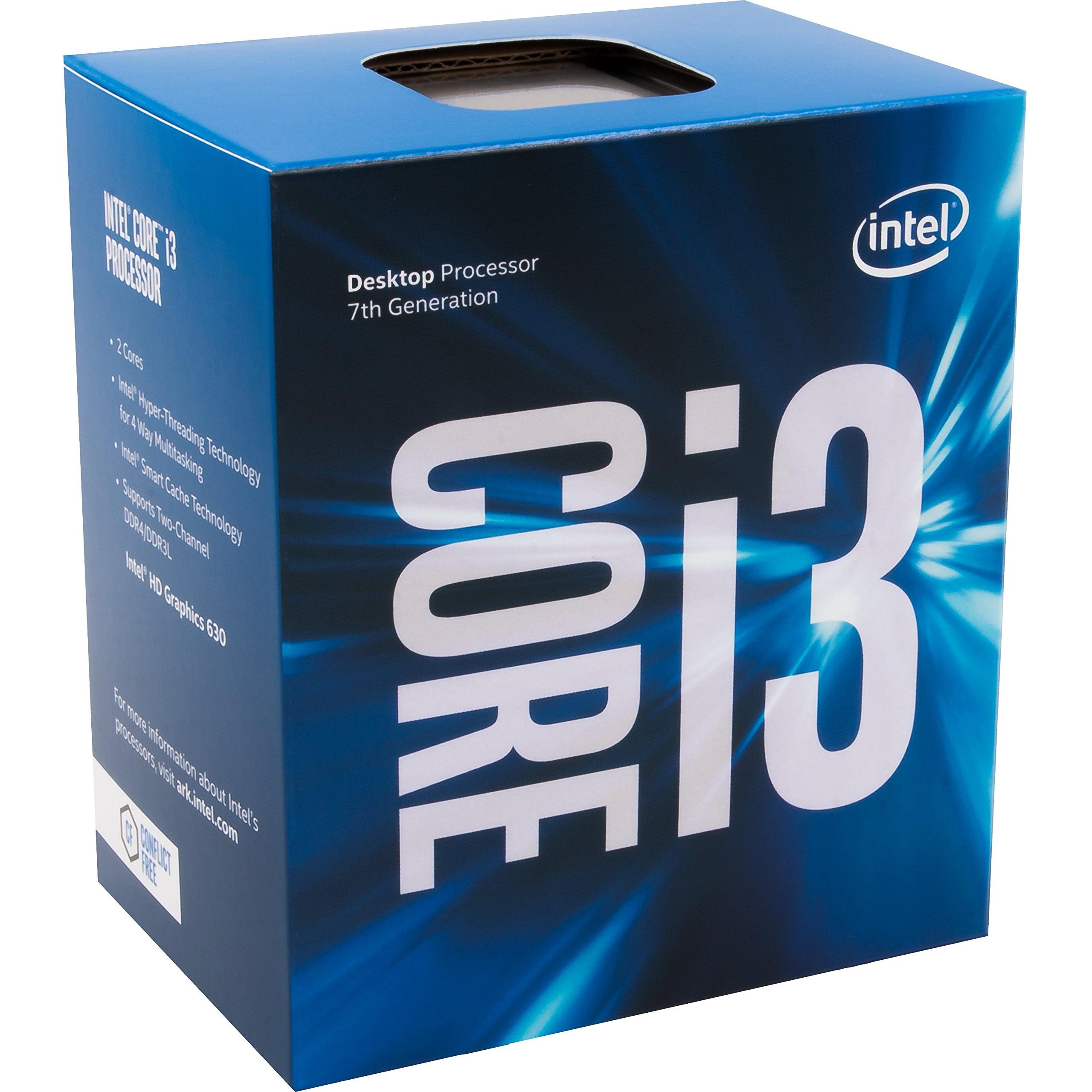

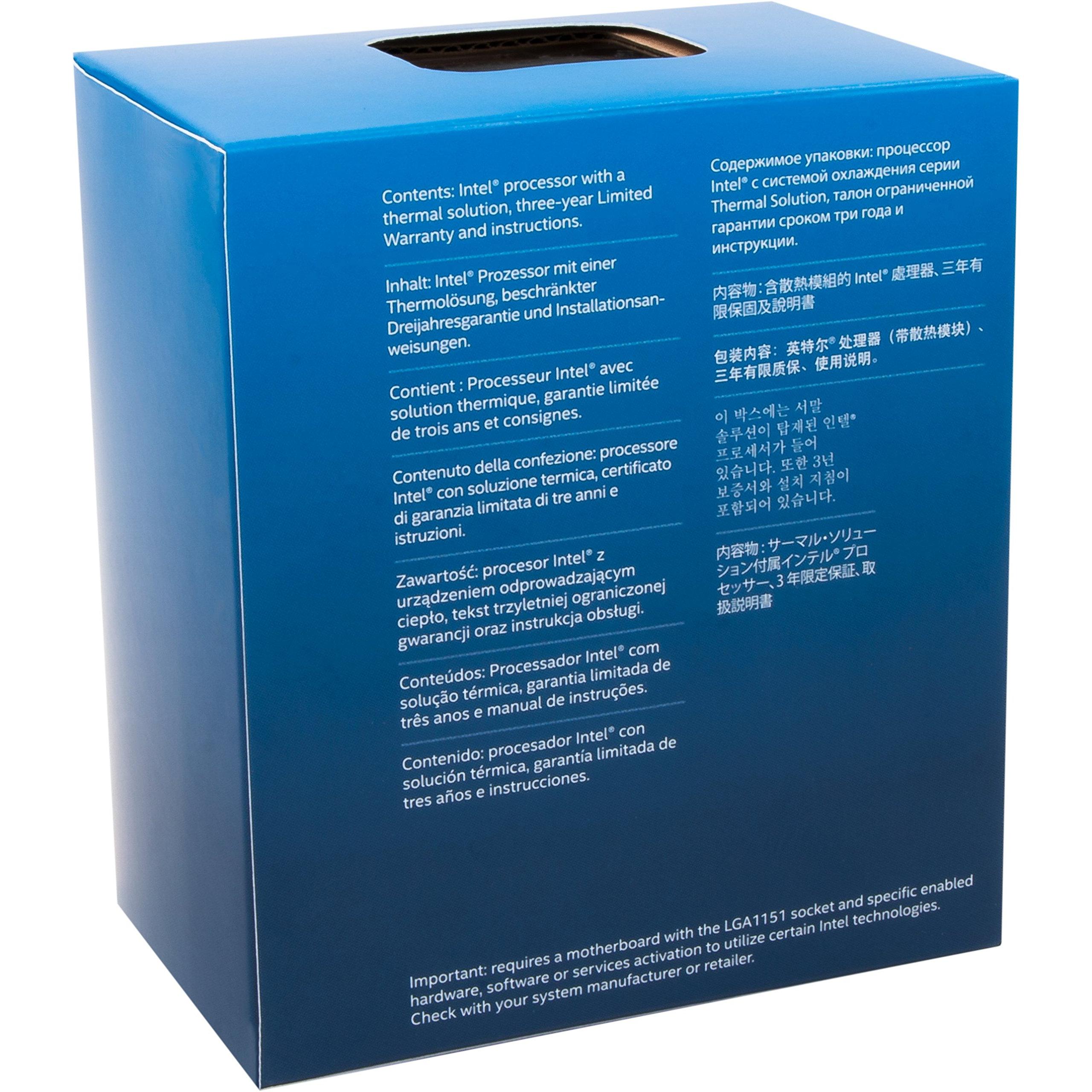

Intel Core i3-7100 SR35C 3.90GHz Quad-Core CPU
Powerful yet compact, the Intel Core i3‑7100 runs at 3.9 GHz with two cores and four threads, backed by a 3 MB Smart Cache. Its HD 630 graphics support 4K@60Hz, while the 14 nm Kaby Lake design delivers efficient performance in LGA1151 systems.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Intel |
| EAN | 5032037096171 |
| ASIN | B01NCESRJX |
| Model | BX80677I37100 |
| MPN | BX80677I37100 |
| SKU | BX80677I37100 |
| Architecture | 64-bit |
| Box | Yes |
| Bus bandwidth | 8 |
| Bus Type | DMI3 |
| Bus type units | GT/s |
| Cache | 4 MB |
| Component for | PC |
| Conflict free processor | Yes |
| Cooling | Cooler included |
| Core count | Dual Core |
| Core name | Kaby Lake |
| CPU Brand | Intel |
| CPU Socket | Socket 1151 |
| CPU Speed | 3.9 GHz |
| ECC | Yes |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Enhanced intel speedstep technology | Yes |
| Execute disable bit | Yes |
| Form factor | Processor |
| Generation | 7th Generation |
| Graphics chipset | Intel HD 630 |
| Harmonized System HS code | 8542310001 |
| Idle states | Yes |
| Integrated Graphics | Yes |
| Intel 64 | Yes |
| Intel clear video technology | Yes |
| Intel enhanced halt state | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Optane Memory Ready | Yes |
| Intel Software Guard Extensions | Yes |
| Intel Stable Image Platform Program | No |
| Intel Stable Image Platform Program SIPP version | 0.00 |
| Intel trusted execution technology | No |
| Intel TSX-NI | No |
| Intel Virtualization Technology | Yes |
| Intel Virtualization Technology for Directed I/O | Yes |
| Intel VT-x with Extended Page Tables | Yes |
| Intel® AES New instructions | Yes |
| Intel® Clear Video HD Technology | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices | Yes |
| Intel® Hyper Threading Technology | Yes |
| Intel® Identity Protection Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® vPro™ Technology | No |
| Launch date | Q1'17 |
| Market segment | DT |
| Maximum CPU configuration | 1 |
| Maximum internal memory | 65536 MB |
| Maximum number of PCI Express lanes | 16 |
| Maximum resolution & refresh rate (DisplayPort) | 4096x2304@60Hz |
| Memory channels | Dual |
| Memory clock speeds supported by processor | 1333,1600,2133,2400 MHz |
| Memory types supported by processor | DDR3L-SDRAM,DDR4-SDRAM |
| Name | Intel Core i3-7100 |
| Number of cores | 2 |
| On-board graphics adapter | Yes |
| On-board graphics adapter 4K support | Yes |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter dynamic frequency | 1100 MHz |
| On-board graphics adapter ID | 0x5912 |
| On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel) | 4096 x 2304 pixels |
| On-board graphics adapter OpenGL version | 4.4 |
| On-board graphics adapter outputs supported | DisplayPort,Embedded DisplayPort (eDP),HDMI |
| On-board graphics adapter refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics adapter refresh rate at maximum resolution (HDMI) | 24 Hz |
| Package depth | 116 mm |
| Package Height | 101 mm |
| Package type | Retail |
| Package width | 70 mm |
| PCI Express CEM Revision | 3.0 |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| Processor ARK ID | 97455 |
| Processor brand name | 7th Gen Intel Core i3 processors |
| Processor cache type | Smart Cache |
| Processor code | SR35C |
| Processor lithography | 14 nm |
| Processor number | 7100 |
| Processor package size | 37.5 x 37.5 mm |
| Processor socket | LGA 1151 (Socket H4) |
| Status | Launched |
| Stepping | S0 |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Thermal design power | 51 W |
| Thermal monitoring technologies | Yes |
| Thermal solution specification | PCG 2015C |
| Video decoding | Yes |
