  2. Intel MEMPEK1W016GAXT 16GB M.2 PCI Express 3.0 Internal Solid State Drive
  • #
  • #
  • #
  • #
  • #
  • #
  • #

Intel MEMPEK1W016GAXT 16GB M.2 PCI Express 3.0 Internal Solid State Drive

47.88 GBP 25.00 GBP 48% Off

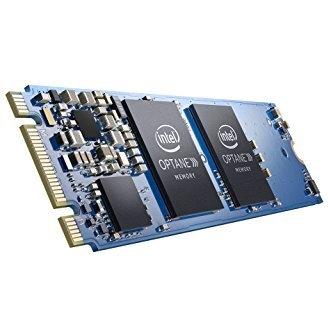

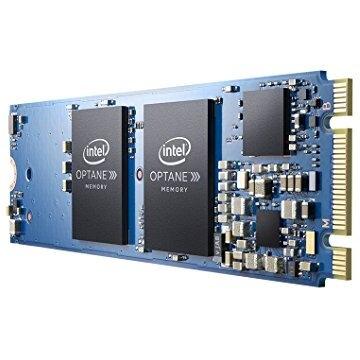

Intel Optane Memory 16 GB M.2 2280 offers 900 MB/s read, 145 MB/s write, 190k random read IOPS and 35k write IOPS via PCIe 3.0 x2 NVMe, delivering instant boot and rapid application launch with low power consumption.

Share:
Brand Intel
EAN 5032037099950
ASIN B06XSMTN31
Model MEMPEK1W016GAXT
MPN MEMPEK1W016GAXT
SKU MEMPEK1W016GAXT
.Shock Tolerance operating 1500 g @ 0.5 ms
Capacity 16384 MB
Colour Black, Blue
Compatible Bay M.2 2280
Compliant Standards RoHS
Component for PC
Depth 80 mm
Device type Solid state drive - internal
End-to-End Data Protection Yes
Enhanced Power Loss Data Protection technology No
Height 1.5 mm
Intel Rapid Start Technology Yes
Interface PCI Express 3.0
Interfaces 1 x PCI Express 3.0 x2 (NVMe) - M.2 Card
Internal data rate 900 MBps (read) / 145 MBps (write)
Launch date Q1'17
Maximum operating temperature 70 °C
Mean time between failures 1600000 h
NAND Flash Memory Type 20nm
Non-operating vibration 3.13 G
Non-recoverable errors 1 per 10^15
NVM Express NVMe supported Yes
NVMe Yes
Operating shock 1500 G
Operating vibration 2.17 G
OS Required Windows 10 (64-bit)
Power consumption (read) 3.5 W
Power consumption idle 1 W
Random read (100% span) 190000 IOPS
Random write (100% span) 35000 IOPS
Read latency 7 µs
Read speed 900 MB/s
Solid-state drive capacity 16 GB
SSD ARK ID 97544
SSD Endurance 182.5 TB
SSD form factor M.2
Status Launched
Vibration tolerance non-operating 3.13 g @ 5-800 Hz
Vibration tolerance operating 2.17 g @ 5-800 Hz
Weight 40 g
Write latency 18 µs
Write speed 145 MB/s
