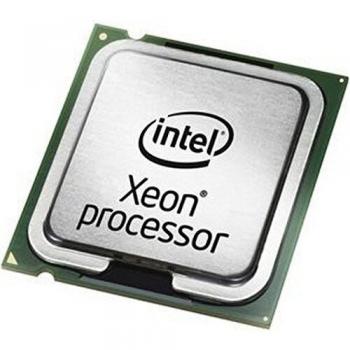

Intel Xeon E3-1230V6 8MB Cache Processor
Quad‑core Intel Xeon E3‑1230 v6 runs at 3.5 GHz with Turbo Boost to 3.9 GHz, delivering 8 MB Smart Cache and Hyper‑Threading for eight threads. It supports dual‑channel DDR4/DDR3L memory up to 64 GB, PCIe 3.0 x16, LGA1151 socket and a 72W TDP in a boxed package.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Intel |
| EAN | 5032037094665 |
| ASIN | B01MZBMGWZ |
| MPN | Xeon E3-1230V6 |
| SKU | BX80677E31230V6 |
| Model | Xeon E3-1230V6 |
| Architecture | Kaby Lake |
| Bus bandwidth | 8 |
| Bus Type | DMI3 |
| Bus type units | GT/s |
| Component for | Server/Workstation |
| Conflict free processor | Yes |
| Cooler included | No |
| CPU Brand | Intel |
| CPU Cores | Quad Core |
| CPU Socket | Socket 1151 |
| CPU Speed | 3.5 GHz |
| CPU Type | Intel Xeon |
| ECC | Yes |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Enhanced intel speedstep technology | Yes |
| Execute disable bit | Yes |
| Form factor | CPU |
| Graphics output | N/A |
| Harmonized System HS code | 8542310001 |
| Idle states | Yes |
| Integrated Graphics | No |
| Intel 64 | Yes |
| Intel clear video technology | No |
| Intel enhanced halt state | Yes |
| Intel Optane Memory Ready | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions | Yes |
| Intel trusted execution technology | Yes |
| Intel TSX-NI | Yes |
| Intel Virtualization Technology | Yes |
| Intel Virtualization Technology for Directed I/O | Yes |
| Intel VT-x with Extended Page Tables | Yes |
| Intel® AES New instructions | Yes |
| Intel® Clear Video HD Technology | No |
| Intel® Clear Video Technology for Mobile Internet Devices | No |
| Intel® Hyper Threading Technology | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® vPro™ Technology | Yes |
| L1 Cache | 256 KB |
| L2 cache | 1 MB |
| Launch date | Q1'17 |
| Market segment | SRV |
| Maximum internal memory | 65536 MB |
| Maximum internal memory supported by processor | 64 GB |
| Maximum PCI Express lanes | 16 |
| Memory bandwidth supported by processor | 37.5 GB/s |
| Memory channels | Dual |
| Memory clock speeds supported by processor | 1866,2400 MHz |
| Memory types supported by processor | DDR3L,DDR4-SDRAM |
| Number of cores | 4 |
| On-board graphics adapter | No |
| On-board graphics adapter 4K support | No |
| PCI Express CEM revision | 3.0 |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| Processor ARK ID | 97474 |
| Processor boost frequency | 3.9 GHz |
| Processor cache type | Smart Cache |
| Processor lithography | 14 nm |
| Processor model | E3-1230 v6 |
| Processor number | 1230 v6 |
| Processor package size | 37.5 x 37.5 mm |
| Processor socket | LGA 1151 (Socket H4) |
| Status | Launched |
| Stepping | B0 |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Thermal design power | 72 W |
| Thermal monitoring technologies | Yes |
| VID voltage range | 0.55 - 1.52 V |
