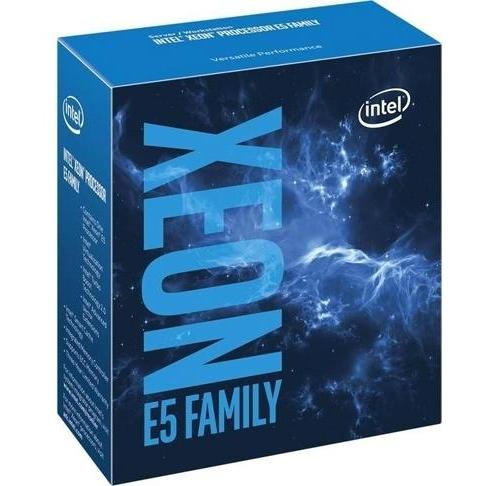

Intel Xeon E5-2650 v4 2.20 GHz CPU
1198.80 GBP
12‑core Xeon E5‑2650 v4 runs at 2.20 GHz with turbo to 2.90 GHz, featuring 30 MB Smart Cache and 24 threads. It supports quad‑channel DDR4 up to 2400 MHz, 105 W TDP, and fits LGA2011‑v3 sockets for robust server performance.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
IntelXeon E5-2650v4 2.20GHz 12-Core with Hyperthreading (Socket 2011-3) - Retail
Overclockers
25-08-2023 14:08:13
| Brand | Intel |
| EAN | 5032037083072 |
| ASIN | B01FXV89OY |
| Model | BX80660E52650V4 |
| MPN | BX80660E52650V4 |
| Box | Yes |
| Bus bandwidth | 9.6 |
| Bus Type | QPI |
| Bus type units | GT/s |
| Component for | Server/Workstation |
| ECC | Yes |
| Embedded options available | Yes |
| Enhanced intel speedstep technology | Yes |
| Execute disable bit | Yes |
| Idle states | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel enhanced halt state | Yes |
| Intel flex memory access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel trusted execution technology | Yes |
| Intel TSX-NI | Yes |
| Launch date | Q1'16 |
| Market segment | SRV |
| Maximum internal memory | 1572864 MB |
| Maximum internal memory supported by processor | 1536 GB |
| Maximum number of PCI Express lanes | 40 |
| Memory channels | Quad-channel |
| Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Number of QPI links | 2 |
| On-board graphics adapter | No |
| Package depth | 101 mm |
| Package Height | 44 mm |
| PCI Express CEM Revision | 3.0 |
| Processor ARK ID | 91767 |
| Processor boost frequency | 2.9 GHz |
| Processor brand name | Intel Xeon |
| Processor cache type | Smart Cache |
| Processor code | SR2N3 |
| Processor codename | Broadwell |
| Processor cores | 12 |
| Processor family | Intel® Xeon® E5 v4 |
| Processor frequency | 2.2 GHz |
| Processor lithography | 14 nm |
| Processor manufacturer | Intel |
| Processor model | E5-2650V4 |
| Processor operating modes | 64-bit |
| Processor package size | 45 x 52.5 mm |
| Processor series | Intel Xeon E5-2600 v4 |
| Processor socket | LGA 2011-v3 |
| Processor threads | 24 |
| Product Type | Processor |
| Status | Launched |
| Stepping | M0 |
| Supported instruction sets | AVX 2.0 |
| Tcase | 80 °C |
| Thermal monitoring technologies | Yes |
| VID voltage range | 0 - 0 V |
Related products

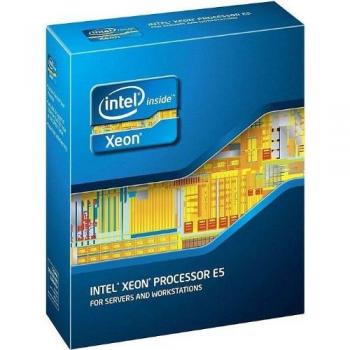

Intel Xeon E5-2650 v2 20M Cache
