Intellinet 545075 Bi-Directional Single Mode Media Converter

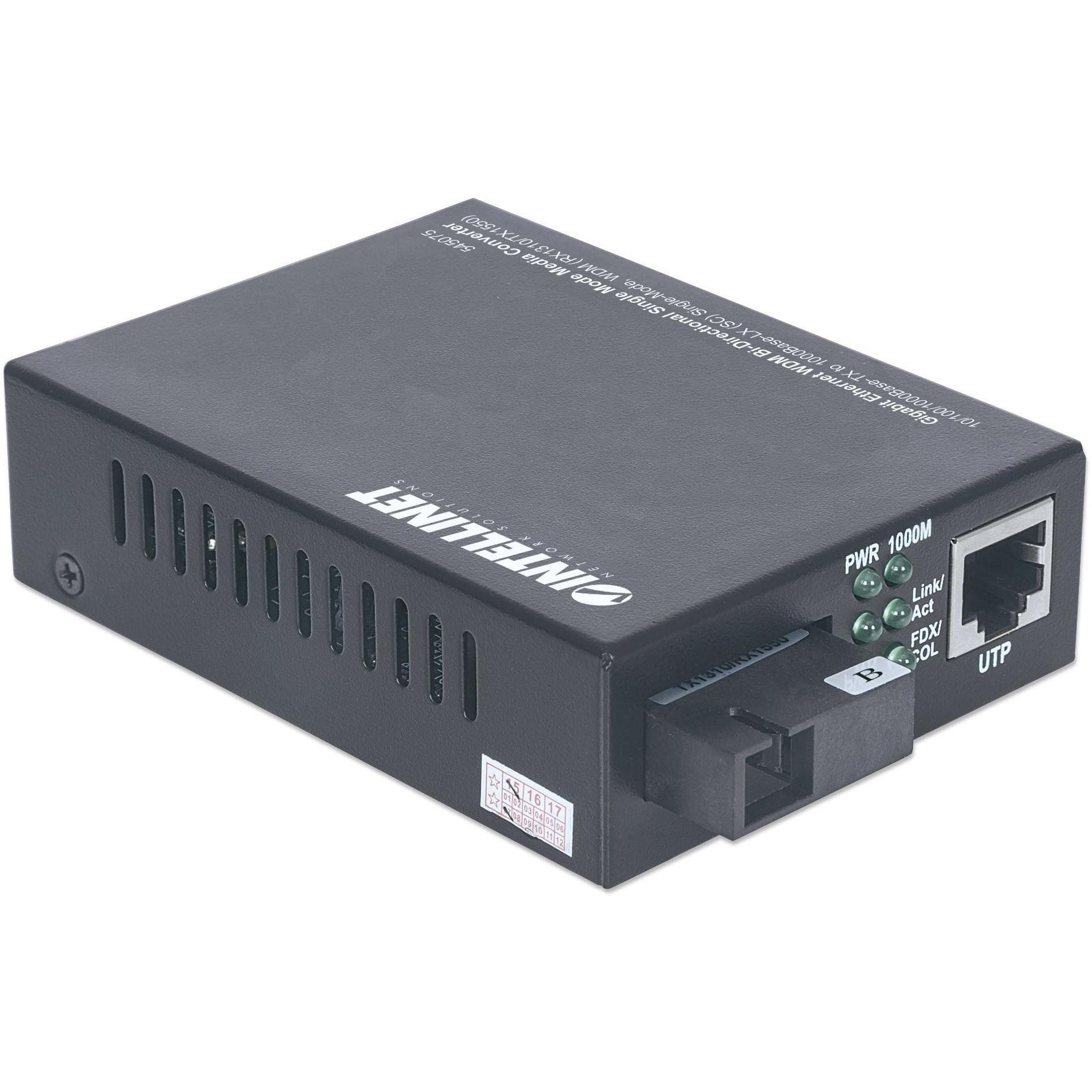

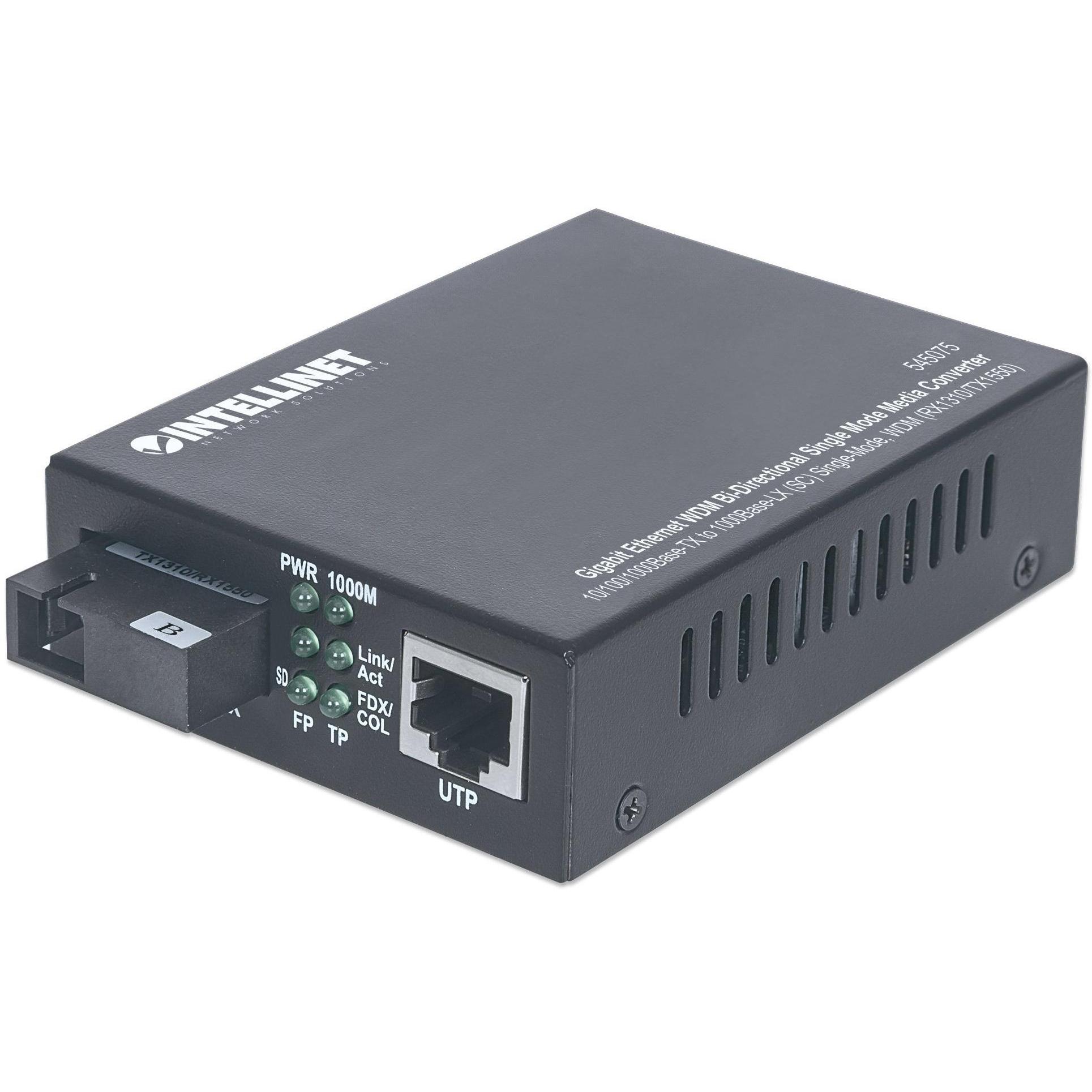

A sleek black converter turns RJ‑45 Gigabit Ethernet into a single‑mode fiber link with an SC port, delivering 10/100/1000 Mbps over 20 km at 1550 nm WDM (RX1310/TX1550). It auto‑MDI/MDIX, runs on 12 V DC, and complies with IEEE 802.3 standards.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Intellinet |
| EAN | 0766623545075 |
| Model | 545075 |
| MPN | 545075 |
| SKU | 545075 |
| ASIN | B001P872W0 |
| Auto MDI/MDI-X | Yes |
| Cable types supported | Cat5,Fiber |
| Certification | FCC Class A, CE |
| Connectivity technology | Wired |
| DC-in jack | Yes |
| Depth | 105 mm |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| External power adapter | Yes |
| Fiber ethernet cabling technology | 1000BASE‑LX |
| Fiber mode structure | Single-mode |
| Fiber optic connector | SC |
| Fiber ports quantity | 1 |
| Height | 25 mm |
| Housing material | Metal |
| Input current | 1.2 A |
| Internal | No |
| LED indicators | Status |
| Manual | Yes |
| Maximum transfer distance | 20000 m |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z |
| Sensitivity | -22 dBmW |
| Wavelength | 1550 nm |
| Weight | 170 g |
| Width | 69 mm |
