Lenovo ThinkStation P320 Intel HD Graphics 630 Workstation

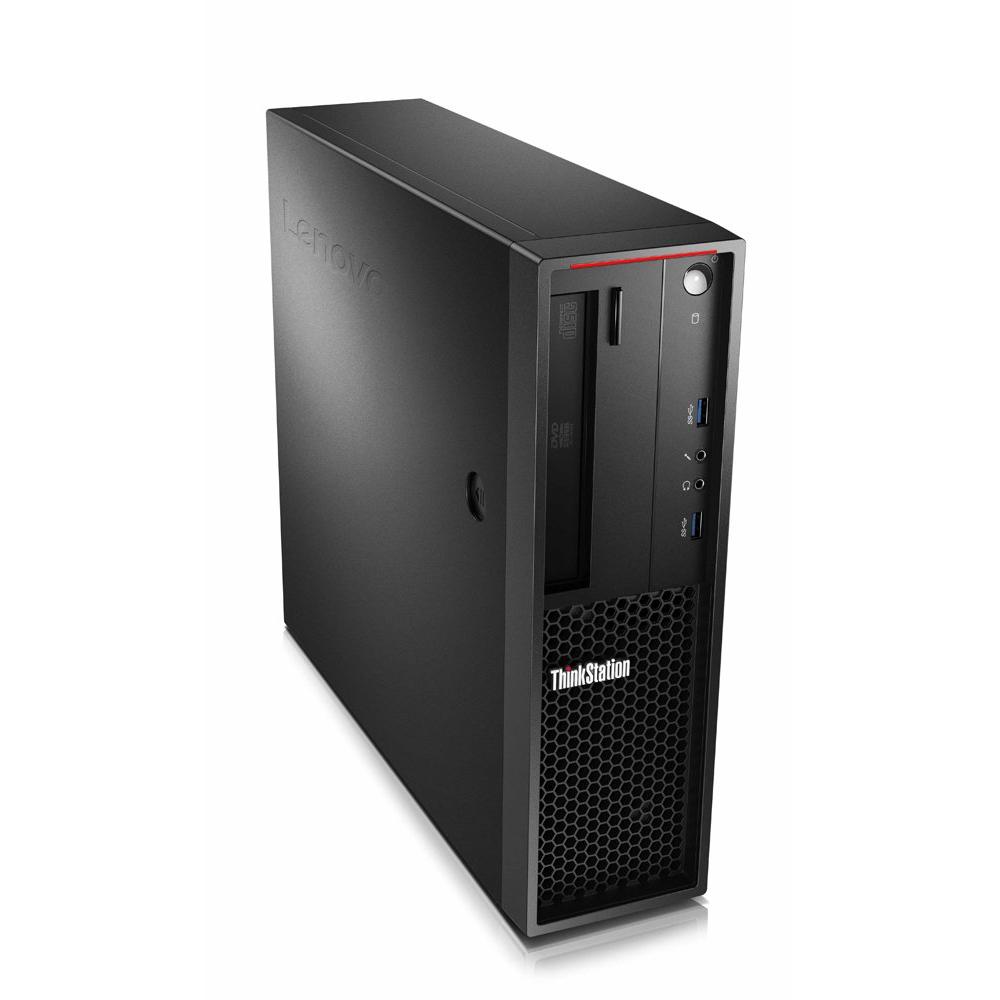

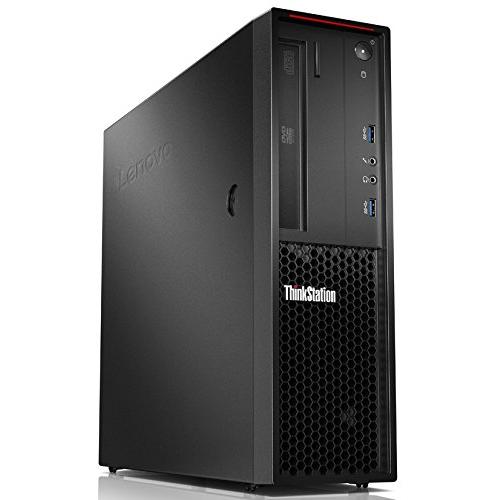

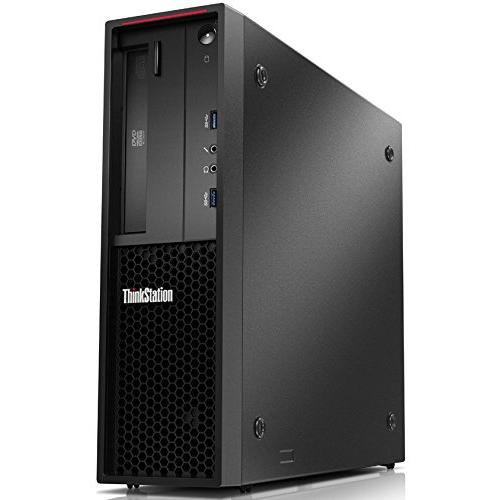

Compact SFF workstation powered by a 3.6 GHz Intel Core i7‑7700, 8 GB DDR4, and a 1 TB HDD, delivering swift multitasking for CAD or video editing. Integrated HD 630 graphics supports dual DisplayPort outputs, while Realtek ALC662 audio ensures clear sound. The system features Gigabit Ethernet, a DVD±RW drive, and energy‑efficient design with GREENGUARD certification.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Lenovo |
| EAN | 0191545341663 |
| Model | 30BK0002UK |
| MPN | 30BK0002UK |
| ASIN | B075FBXNNZ |
| Audio chip | Realtek ALC662 |
| Bus Type | DMI3 |
| Cables included | AC |
| Cabling technology | 10/100/1000Base-T(X) |
| Card reader integrated | Yes |
| Certification | GREENGUARD |
| Chassis type | SFF |
| Depth | 394.5 mm |
| Discrete graphics adapter | No |
| Discrete graphics adapter model | Not available |
| Display included | No |
| DisplayPorts quantity | 2 |
| DVI port | No |
| ECC supported by processor | No |
| Embedded options available | No |
| Energy Star certified | Yes |
| Enhanced intel speedstep technology | Yes |
| EPEAT Compliance | Gold |
| Ethernet LAN | Yes |
| Execute disable bit | Yes |
| HDD Capacity | 1000 GB |
| HDD interface | Serial ATA III |
| HDD size | 3.5" |
| HDD speed | 7200 RPM |
| Headphone outputs | 1 |
| Height | 338 mm |
| Idle states | Yes |
| Intel 64 | Yes |
| Intel clear video technology | Yes |
| Intel enhanced halt state | Yes |
| Intel trusted execution technology | Yes |
| Intel TSX-NI | Yes |
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Keyboard included | Yes |
| Line-in | Yes |
| Line-out | Yes |
| Manual | Yes |
| Maximum internal memory | 64 GB |
| Maximum number of PCI Express lanes | 16 |
| Memory channels | Dual-channel |
| Memory clock speed | 2400 MHz |
| Memory clock speeds supported by processor | 1333,1600,2133,2400 MHz |
| Memory types supported by processor | DDR3L,DDR4-SDRAM |
| Memory voltage supported by processor | 1.35 V |
| Microphone in | Yes |
| Motherboard chipset | Intel® C236 |
| Mouse included | Yes |
| Non-ECC | Yes |
| On-board graphics adapter | Yes |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter ID | 0x5912 |
| On-board graphics adapter model | Intel® HD Graphics 630 |
| On-board graphics adapter OpenGL version | 4.4 |
| Operating system installed | Windows 10 Pro |
| Optical drive type | DVD±RW |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| PCI Express slots version | 3.0 |
| Placement supported | Horizontal/Vertical |
| Power supply | 210 W |
| Power supply input frequency | 50 - 60 Hz |
| Power supply input voltage | 100 - 240 V |
| Processor ARK ID | 97128 |
| Processor boost frequency | 4.2 GHz |
| Processor cache type | Smart Cache |
| Processor codename | Kaby Lake |
| Processor family | 7th gen Intel® Core™ i7 |
| Processor frequency | 3.6 GHz |
| Processor lithography | 14 nm |
| Processor manufacturer | Intel |
| Processor model | i7-7700 |
| Processor package size | 37.5 x 37.5 mm |
| Processor socket | LGA 1151 (Socket H4) |
| Product Type | Workstation |
| RoHS compliance | Yes |
| Stepping | B0 |
| Storage media | HDD |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Thermal monitoring technologies | Yes |
| Thermal solution specification | PCG 2015C |
| Tjunction | 100 °C |
| Wake-on-LAN ready | Yes |
| Weight | 7.9 kg |
| Wi-Fi | No |
| Width | 102 mm |
