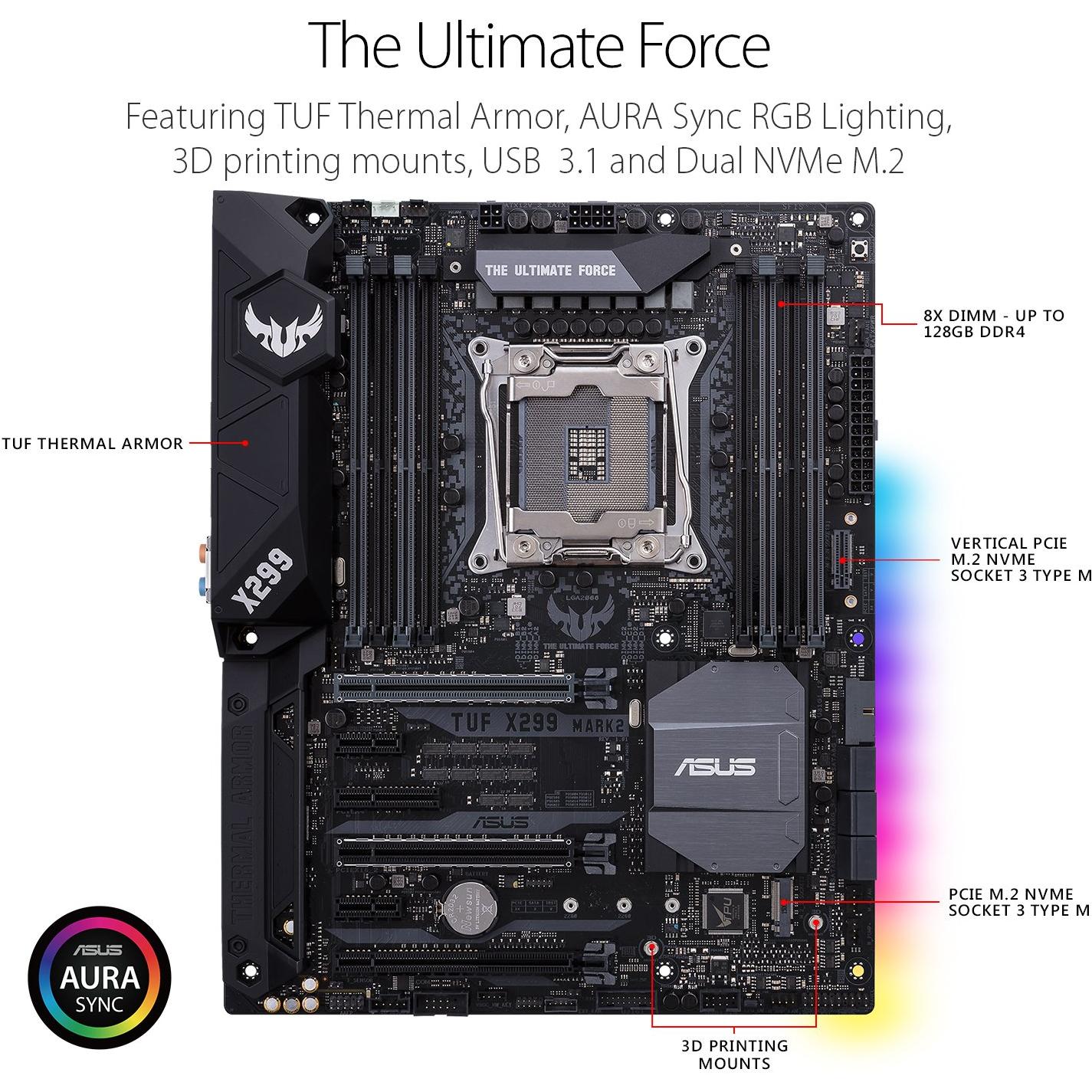

LGA2066 PowerBoard
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | ASUS |
| EAN | 4712900775174 |
| MPN | TUF X299 MK2 |
| SKU | 90MB0UB0-M0EAY0 |
| ASIN | B072V53HB3 |
| Model | TUF X299 MK2 |
| 64-bit Support | Yes |
| ACPI version | 6.0 |
| Addressable RGB | No |
| AMD CrossFire Support | 3-Way CrossFire |
| Audio | Realtek ALC S1220A 7.1 HD Audio |
| Audio line in ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 3 x 3.5mm Jacks |
| Audio output channels | 7.1 channels |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Bluetooth | No |
| Board dimensions | 305 x 244 mm |
| Chipset | Intel X299 |
| Chipset manufacturer | Intel |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel Core i7 |
| Component for | PC |
| CPU fan connector | Yes |
| CPU Socket | Socket 2066 |
| Depth | 244 mm |
| Displayport connection | No |
| Drivers | Included |
| DVI connection | No |
| Edition | TUF X299 MARK 2 |
| Ethernet LAN | Yes |
| Ethernet LAN ports | 1 |
| Firewire | No |
| Form factor | ATX Motherboard |
| HDMI connection | No |
| Integrated Graphics Supported | No |
| Internal USB 3.0 Header | Yes |
| LAN controller | Intel® I219-V |
| M.2 Support | Yes |
| Manual | Yes |
| Maximum Installed Processors | 0 (1) |
| Maximum internal memory | 131072 MB |
| Memory Bus Speed | 4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz |
| Memory channel | Quad |
| Memory slot | 8 x DIMM |
| Memory slots type | DIMM |
| Memory speed | DDR4 - 2133 DDR4 - 2400 DDR4 - 2666 DDR4 - 3600(OC) DDR4 - 4000(OC) |
| Memory type | DDR4 |
| Memory Type ECC | Non-ECC |
| Memory Type R/U | UDIMM (Unbuffered) |
| Microphone in | Yes |
| Motherboard form factor | ATX |
| Motherboard Power Connectors | 4 + 8-Pin |
| Multi GPU Support | Both |
| Network Interface Type | Wired Gigabit LAN (10/100/1000) |
| Non-ECC | Yes |
| Number of chassis fan connectors | 2 |
| Number of SATA III connectors | 6 |
| On-Board Graphics Connectors | None |
| On-board RGB Control | ASUS Aura Sync |
| Primary GPU Interface | PCIe 3.0 (x16) |
| QPI Speed | N/A |
| RAID Format | RAID 0, 1, 5, 10 |
| RAID Support via | SATA |
| Raid supported | Yes |
| RJ-45 ports | 1 x RJ-45 |
| S/PDIF out port | Yes |
| SATA III Support | Yes |
| SATA Support | SATA3 / M.2 |
| SATA Supported | Yes |
| Skip audio test | No |
| Supported memory clock speeds | 2133,2400,2666,3600,4000,4133 MHz |
| Thunderbolt | No |
| Unbuffered memory | Yes |
| USB 3.0 Support | Yes |
| USB 3.1 Support | Yes |
| USB Ports | 10 port(s) |
| VGA connection | No |
| Wake-on-LAN ready | Yes |
| Water Cooled | No |
| Width | 305 mm |
| Wireless Network | No |
