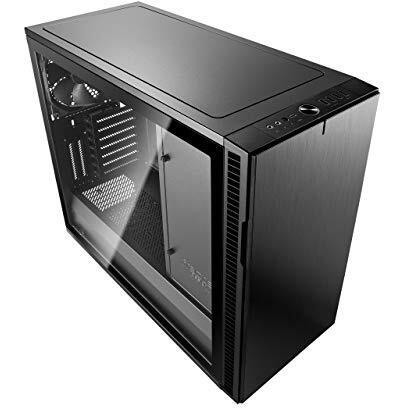

MidTower R6‑Airflow
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Fractal Design |
| EAN | 7340172701163 |
| ASIN | B07H6R53HH |
| Model | FD-CA-DEF-R6C-BKO-TGL |
| MPN | FD-CA-DEF-R6C-BKO-TGL |
| SKU | FD-CA-DEF-R6C-BKO-TGL |
| Audio input | Yes |
| Audio output | Yes |
| Bottom Radiator Compatibility | 1 x 120/140/240/280mm |
| Cable management | Yes |
| Cable Routing Space | 23mm mm |
| Card reader integrated | No |
| Case Edition | Define R6 |
| Case form factor | Mid Tower |
| Colours | Black |
| Depth | 543 mm |
| Dimensions | 233 x 465 x 543 (WxHxD mm) |
| Drive bays | 2 x 2.5" Internal 6 x 2.5"/ 3.5" Internal |
| Dust Filters | Bottom Front PSU Top |
| Fan Bays | 3 x 120/140mm 6 x 120mm / 4x 140mm |
| Fans Included | 3 x 140mm |
| Form Factor | Midi Tower |
| Front Radiator Compatibility | 1 x 120/140/240/280/360mm |
| Height | 465 mm |
| LED indicators | Yes |
| LED Lighting | No |
| Manual | Yes |
| Max CPU Cooler Height | 185 mm |
| Max GPU Card Length | 440 mm |
| Max PSU Length | 300 mm |
| Maximum graphics card length | 44 cm |
| Motherboard form factor | ATX E-ATX (285mm Wide Max.) MicroATX Mini-ITX |
| Number of expansion slots | 9 |
| On/off button | Yes |
| Package depth | 535 mm |
| Package Height | 650 mm |
| Package width | 325 mm |
| Panel I/O | 1 x Headphone Out 1 x Mic In 2 x USB 2.0 2 x USB 3.0 1 x USB 3.1 Gen2 Type-C |
| Power supply included | No |
| Power supply location | Bottom |
| PSU Included | No |
| PSU Mounting Location | Bottom Mount, Rear |
| PSU Support | ATX |
| Rear fans installed | 1x 140 mm |
| Rear Radiator Compatibility | 1 x 120mm |
| Reset button | Yes |
| Side window | Yes |
| Standard Expansion Slots | 7 |
| Suitable for | Gaming |
| Supported HDD sizes | 2.5,3.5" |
| Supported motherboard form factors | ATX,EATX,ITX,Micro ATX |
| Type | PC |
| USB 2.0 ports quantity | 2 |
| Weight | 12.4 kg (Approx) |
| Width | 233 mm |
| Window Configuration | 1 x Main Side |
| Window Construction | Tempered Glass |
| Windows | Yes |
