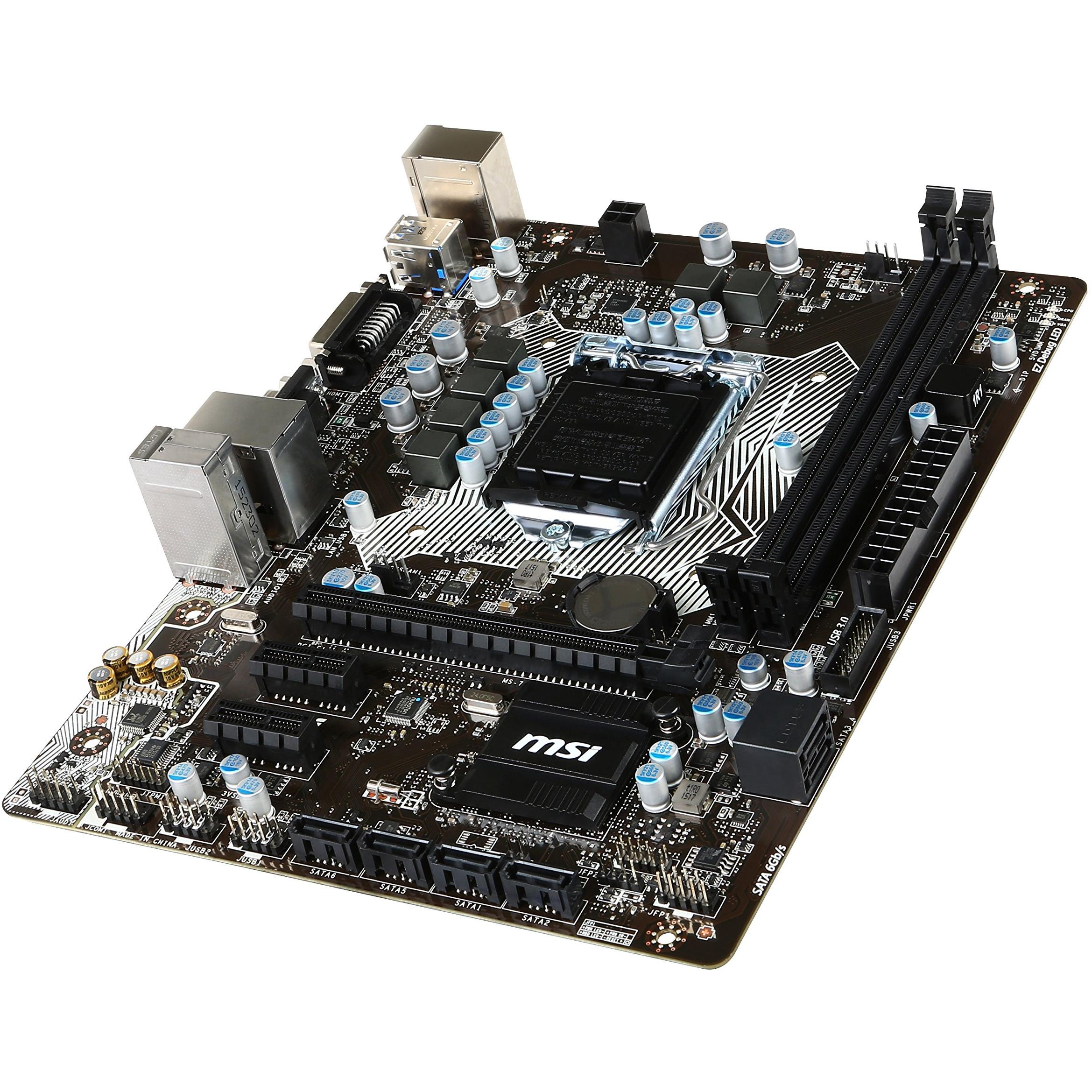

MSI Intel B150M Pro‑VDH D3 Board
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | MSI |
| Model | 007982-015R |
| EAN | 4719072420437 |
| MPN | 7982-015R |
| ASIN | B0152T29JS |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI |
| Chassis intrusion connector | Yes |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel® Core™ i3, Intel Core i5, Intel Core i7 |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 228 mm |
| DVI-D ports quantity | 1 |
| ECC | No |
| Ethernet interface type | Fast Ethernet,Gigabit Ethernet |
| Ethernet LAN | Yes |
| Front panel audio connector | Yes |
| LAN controller | Realtek RTL8111H |
| Linux operating systems supported | Yes |
| Maximum internal memory | 64 GB |
| Maximum resolution | 4096 x 2160 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel® B150 |
| Motherboard chipset family | Intel |
| Motherboard form factor | Micro ATX |
| Non-ECC | Yes |
| Number of chassis fan connectors | 2 |
| Number of memory slots | 4 |
| Number of SATA connectors | 6 |
| Power source type | ATX |
| Processor socket | LGA 1151 (Socket H4) |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Supported memory types | DDR3L-SDRAM |
| Supported storage drive interfaces | Serial ATA III |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| Wi-Fi | No |
| Width | 235 mm |
| Windows operating systems supported | Yes |
