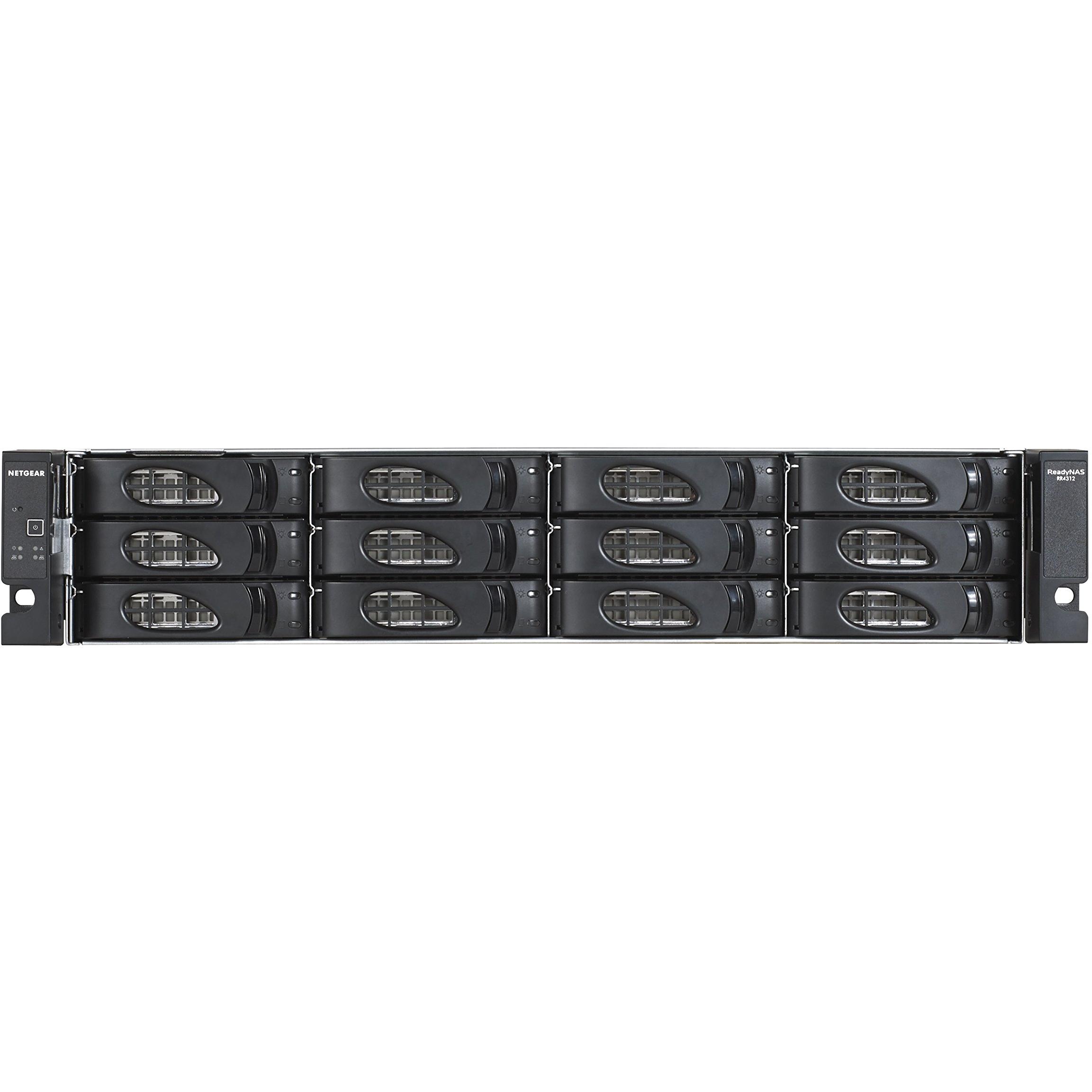

NETGEAR ReadyNAS 4312S 2X 10Gbase-T Diskless NAS
Enterprise‑grade 12‑bay NAS built on Intel Xeon E3‑1245V5 with 16 GB DDR4, dual 10G SFP+ and two eSATA ports, active cooling, RAID 0/1/5/6/10/JBOD, iSCSI, cloud backup, web UI, 30 dB quiet.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | NETGEAR |
| EAN | 0779184121244 |
| ASIN | B01IF3L7A0 |
| Model | RR4312S0-10000S |
| MPN | RR4312S0-10000S |
| SKU | RR4312S0-10000S |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100-240 V |
| Backup features | Cloud |
| Backup function | Yes |
| Browser supported | Microsoft Internet Explorer 9+, Mozilla Firefox 14+, Google Chrome 20+, Apple Safari 5+ |
| Built-in iTunes server | Yes |
| Built-in UPnP AV media server | Yes |
| Bus Type | DMI3 |
| Certification | FCC, CE, VCCI |
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Depth | 707 mm |
| DHCP Client | Yes |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Enhanced intel speedstep technology | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Execute disable bit | Yes |
| Fan diameter | 8 cm |
| Fiber optic connector | SFP+ |
| Flash memory | 256 MB |
| Graphics & IMC lithography | 14 nm |
| Height | 88 mm |
| Hot spare | Yes |
| Hot-swap drive bays | Yes |
| Idle states | Yes |
| Installed storage drive type | No |
| Intel 64 | Yes |
| Intel clear video technology | Yes |
| Intel enhanced halt state | Yes |
| Intel trusted execution technology | Yes |
| Intel TSX-NI | Yes |
| Internal memory | 16 GB |
| Internal memory type | DDR4 |
| iSCSI support | Yes |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Maximum internal memory supported by processor | 64 GB |
| Maximum on-board graphics adapter memory | 1 GB |
| Maximum RAM supported | 128 GB |
| Maximum supported storage capacity | 120 TB |
| Memory channels supported by processor | Dual |
| Memory types supported by processor | DDR3L-SDRAM,DDR4-SDRAM |
| Memory voltage supported by processor | 1.35 V |
| Noise level | 30 dB |
| Number of storage drives supported | 12 |
| Number of Users | 8192 user(s) |
| On-board graphics adapter base frequency | 400 MHz |
| On-board graphics adapter ID | 0x191D |
| On-board graphics adapter model | Intel® HD Graphics P530 |
| On-board graphics adapter OpenGL version | 4.4 |
| On/off switch | Yes |
| Package depth | 880 mm |
| Package Height | 248 mm |
| Package type | Box |
| Package width | 578 mm |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| Power supply location | Built-in |
| Processor ARK ID | 88173 |
| Processor boost frequency | 3.9 GHz |
| Processor cache type | Smart Cache |
| Processor codename | Skylake |
| Processor family | Intel® Xeon® E3 v5 |
| Processor model | E3-1245V5 |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon E3-1200 v5 |
| Processor socket | LGA 1151 (Socket H4) |
| RAID levels | 0,1,5,6,10,JBOD |
| RAID support | Yes |
| RoHS compliance | Yes |
| S.M.A.R.T. support | Yes |
| Server operating systems supported | Windows Server 2008,Windows Server 2008 R2,Windows Server 2012 |
| Share folder | 1024 |
| Share folder access right management | Yes |
| Stepping | R0 |
| Storage drive interface | Serial ATA III |
| Storage drives installed | No |
| Supported file systems | FAT32,HFS+,NTFS,ext3,ext4 |
| Supported network protocols | TCP/IP, HTTP, HTTPS, FTP, SSH |
| Supported storage drive types | SSD |
| System log | Yes |
| Thermal monitoring technologies | Yes |
| Type | NAS |
| USB port | Yes |
| Web-based management | Yes |
| Wi-Fi | No |
| Width | 445 mm |
