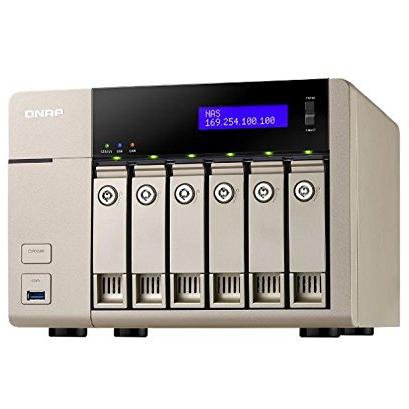

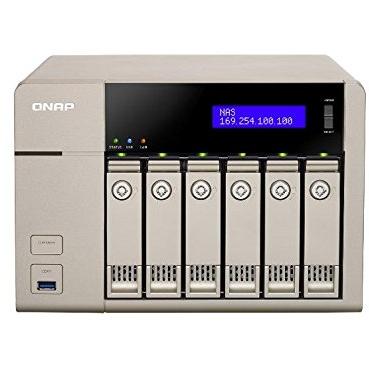

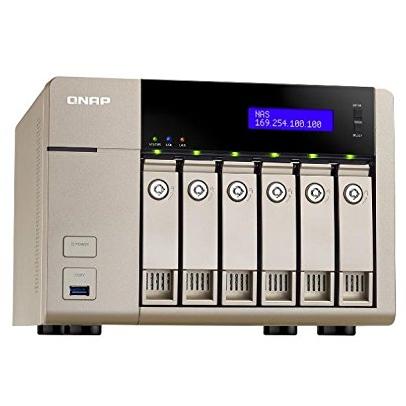

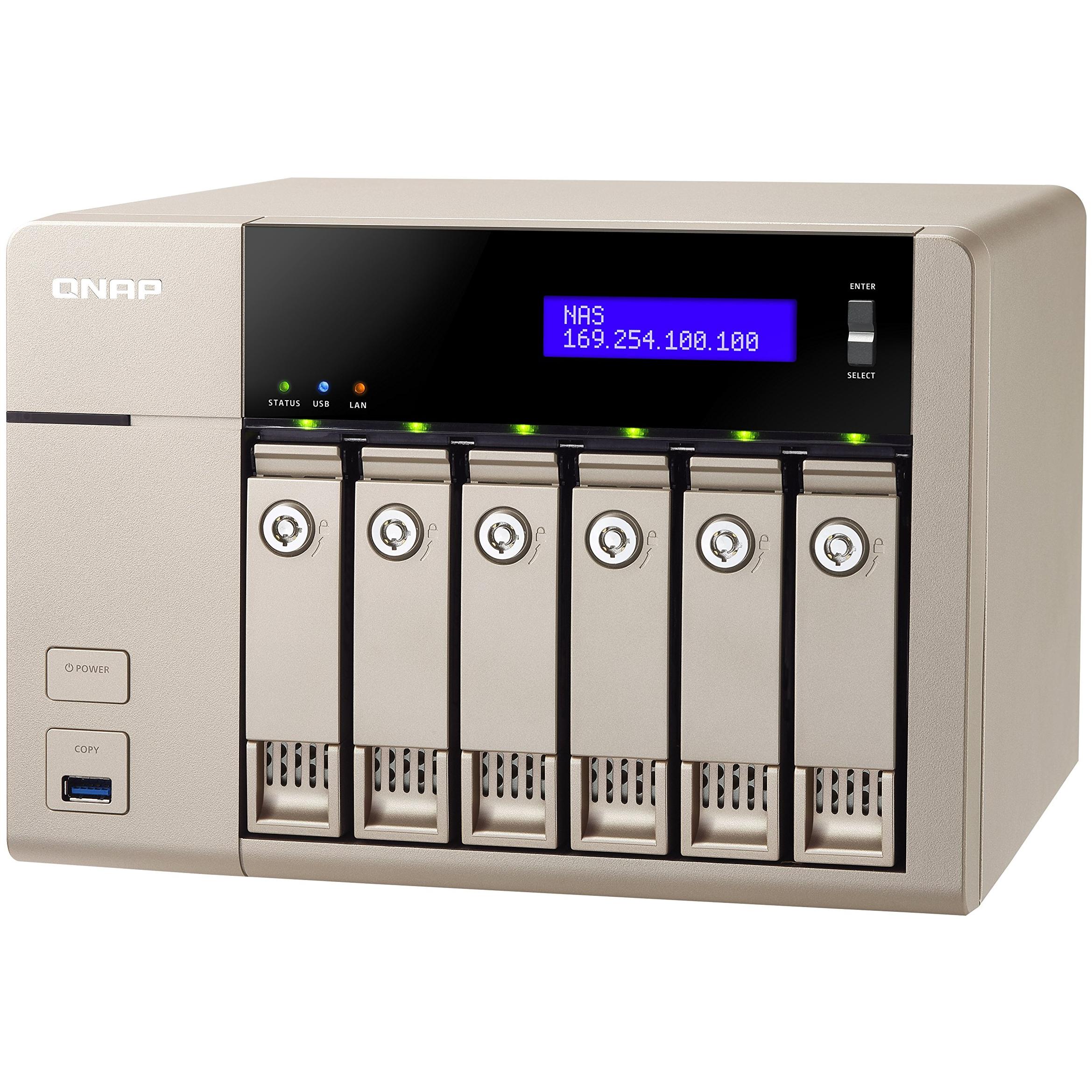

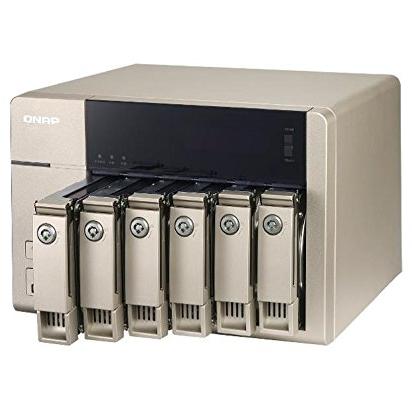

QNAP 4GB RAM 6‑Bay TVS‑663 Desktop Storage
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | QNAP |
| EAN | 4712511126532 |
| ASIN | B00S9FH9CU |
| Model | TVS-663-4G |
| MPN | TVS-663-4G |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 110 - 240 V |
| Backup button | Yes |
| Backup features | Cloud,USB drive,iSCSI LUN |
| Backup function | Yes |
| Bad block scan | Yes |
| Browser supported | Microsoft Internet Explorer 10+,Google Chrome,Apple Safari 4+,Mozilla Firefox 8+ |
| Built-in display | Yes |
| Built-in FTP server | Yes |
| Built-in iTunes server | Yes |
| Buzzer | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Cables included | AC,LAN (RJ-45) |
| Chassis type | Tower |
| Cooling type | Active |
| Depth | 235.5 mm |
| Device class | Small & Medium Business |
| DHCP Client | Yes |
| DHCP server | Yes |
| Display type | LCD |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Fan diameter | 9 cm |
| Fan voltage | 12 V |
| Flash memory | 512 MB |
| HDMI ports quantity | 2 |
| HDMI version | 1.4a |
| Height | 185 mm |
| Hot spare | Yes |
| Hot-swap drive bays | Yes |
| Installed storage drive type | No |
| Internal memory | 4 GB |
| Internal memory type | DDR3L |
| iSCSI support | Yes |
| Jumbo frames support | Yes |
| LED indicators | HDD,LAN,SSD,Status,USB |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Management protocols | SNMP |
| Maximum RAM supported | 16 GB |
| Memory clock speed | 1600 MHz |
| Multilingual support | Yes |
| Noise level | 20.7 dB |
| Number of power supply units | 1 |
| Number of screws | 42 |
| Number of storage drives supported | 6 |
| Number of Users | 4096 user(s) |
| On/off switch | Yes |
| Online RAID expansion | Yes |
| Online RAID migration | Yes |
| Operating system installed | QNAP Turbo System |
| Operating system version | 4.1 |
| Output current | 5 A |
| Power supply location | Built-in |
| Processor family | AMD G |
| Processor frequency | 2.4 GHz |
| Processor model | GX-424CC |
| Quick installation guide | Yes |
| RAID levels | 0,1,5+HS,5,6,6+HS,10+HS,10,JBOD |
| RAID support | Yes |
| Remotely operated | Yes |
| Reset button | Yes |
| S.M.A.R.T. support | Yes |
| Security algorithms | 128-bit AES,256-bit AES,FIPS 140-2,HTTPS,SNMP,SSH |
| Server operating systems supported | Windows Server 2003,Windows Server 2008 R2,Windows Server 2012 |
| Share folder access right management | Yes |
| Storage drive sizes supported | 2.5,3.5" |
| Storage drives installed | No |
| Supported file systems | FAT32,HFS+,NTFS,ext3,ext4 |
| Supported network protocols | CIFS/SMB,AFP (v3.3),NFS(v3),FTP,FTPS,SFTP,TFTP,HTTP(S),Telnet,SSH,iSCSI,SMTP,SMSC |
| Supported storage drive interfaces | Serial ATA II,Serial ATA III |
| Supported storage drive types | HDD,SSD |
| System log | Yes |
| Type | NAS |
| USB port | Yes |
| Wake-on-LAN ready | Yes |
| Web-based management | Yes |
| Weight | 6.18 kg |
| Wi-Fi | No |
| Width | 260.2 mm |
