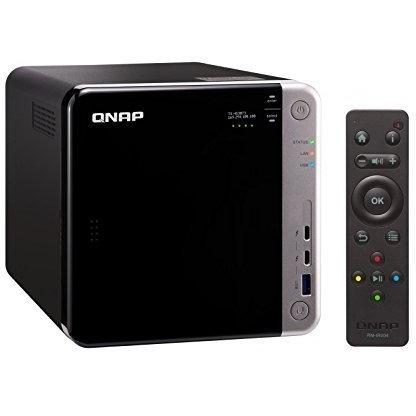

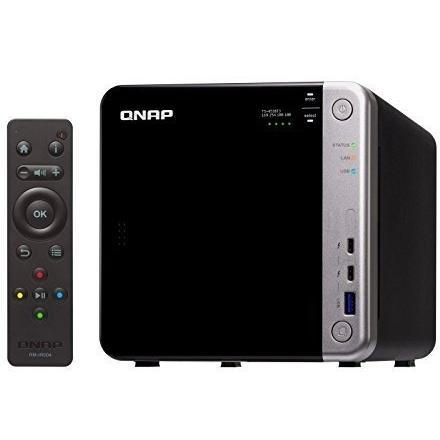

QNAP TS-453BT3-8G 32TB RAID Storage Solution with Seagate IronWolf Hard Drives
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | QNAP |
| EAN | 5051868057250 |
| ASIN | B078KFCX2X |
| Model | TS-453BT3-8G/32TB-IW |
| MPN | TS-453BT3-8G/32TB-IW |
| SKU | TS-453BT3-8G/32TB-IW |
| AC input frequency | 50 / 60 Hz |
| AC input voltage | 100 - 240 V |
| Backup button | Yes |
| Backup features | Cloud,USB drive,iSCSI LUN |
| Backup function | Yes |
| Bad block scan | Yes |
| Browser supported | Microsoft Internet Explorer 10+, Google Chrome, Apple Safari 7+, Mozilla Firefox |
| Built-in display | Yes |
| Built-in FTP server | Yes |
| Built-in iTunes server | Yes |
| Built-in UPnP AV media server | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Cables included | AC,LAN (RJ-45) |
| Card reader integrated | No |
| Chassis type | Tower |
| Cooling type | Active |
| Copper ethernet cabling technology | 10BASE-T,10GBASE-T,100BASE-TX,1000BASE-T |
| Depth | 226 mm |
| Device class | Small & Medium Business |
| DHCP Client | Yes |
| DHCP server | Yes |
| Display type | OLED |
| ECC supported by processor | No |
| Embedded options available | No |
| Enhanced intel speedstep technology | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Execute disable bit | Yes |
| External power adapter | Yes |
| Fan diameter | 12 cm |
| Handheld remote control | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 1.4b |
| Height | 168 mm |
| Hot-swap drive bays | Yes |
| Idle states | Yes |
| Installed storage drive type | HDD |
| Intel 64 | Yes |
| Intel clear video technology | Yes |
| Intel enhanced halt state | Yes |
| Intel rapid storage technology | No |
| Intel secure boot | Yes |
| Intel smart connect technology | No |
| Intel trusted execution technology | No |
| Internal memory | 8 GB |
| Internal memory type | DDR3L |
| iSCSI support | Yes |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Management protocols | SNMP v2/3 |
| Maximum number of PCI Express lanes | 6 |
| Memory channels supported by processor | Dual |
| Memory types supported by processor | DDR3L,LPDDR3-SDRAM,LPDDR4-SDRAM |
| Multilingual support | Yes |
| Number of built-in speakers | 1 |
| Number of storage drives supported | 4 |
| On-board graphics adapter base frequency | 250 MHz |
| On-board graphics adapter burst frequency | 750 MHz |
| On-board graphics adapter model | Intel® HD Graphics 500 |
| On/off switch | Yes |
| Online RAID expansion | Yes |
| Online RAID migration | Yes |
| Operating system installed | QNAP Turbo System |
| Operating system version | 4.3 |
| PCI Express configurations | 1x2+2x1,4x1 |
| PCI Express slots version | 2.0 |
| Power supply location | Built-in |
| Processor ARK ID | 95594 |
| Processor boost frequency | 2.30 GHz |
| Processor cache type | Smart Cache |
| Processor code | SR2Z9 |
| Processor codename | Apollo Lake |
| Processor family | Intel® Celeron® |
| Processor frequency | 1.50 GHz |
| Processor model | J3455 |
| Processor operating modes | 64-bit |
| Processor package size | 24 x 31 mm |
| Processor socket | BGA 1296 |
| Quick installation guide | Yes |
| RAID levels | 0,1,5,6,10,JBOD |
| RAID support | Yes |
| Remotely operated | Yes |
| Reset button | Yes |
| S.M.A.R.T. support | Yes |
| Security algorithms | 256-bit AES,FIPS 140-2,HTTPS,SSH,SSL/TLS |
| Snapshot | Yes |
| Storage Drive Capacity | 8000 GB |
| Storage drive interface | Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Storage drives installed | Yes |
| Supported file systems | FAT32,HFS+,NTFS,exFAT,ext3,ext4 |
| Supported storage drive types | HDD,SSD |
| System log | Yes |
| Thermal monitoring technologies | Yes |
| Third-party support | Yes |
| Tjunction | 105 °C |
| Total installed storage capacity | 32 TB |
| UART | Yes |
| USB port | Yes |
| Wake-on-LAN ready | Yes |
| Web-based management | Yes |
| Weight | 2.51 kg |
| Width | 170 mm |
| Windows operating systems supported | Yes |
| WLAN adapter supported | Yes |
