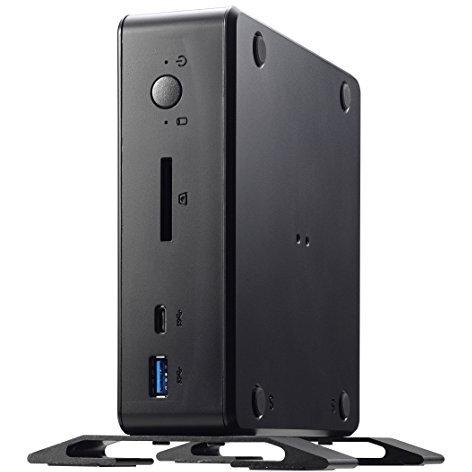

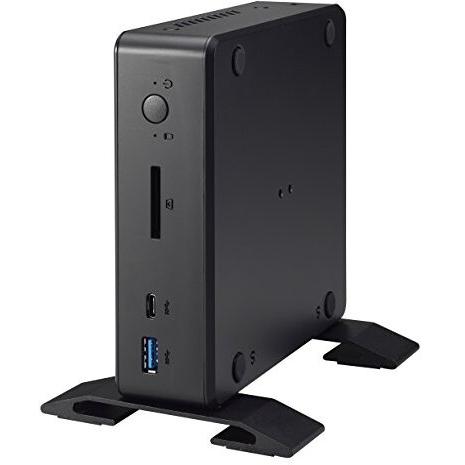

SHUTTLE NC03U Barebones Nano PC
Powerful yet tiny, the Shuttle NC03U barebone packs a 1.8 GHz Intel Celeron 3865U with dual‑channel DDR4 up to 32 GB, HD Graphics 610, HDMI and DisplayPort outputs, Wi‑Fi n, Gigabit LAN, active cooling, VESA mountable, powered by an external 65 W adapter.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | SHUTTLE |
| EAN | 0887993001272 |
| ASIN | B071FCYM28 |
| Model | NC03U |
| MPN | NC03U |
| AC adapter included | Yes |
| AC adapter output current | 3.42 A |
| AC adapter output voltage | 19 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Audio system | HD |
| BIOS type | UEFI |
| Built-in processor | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Card reader integrated | Yes |
| Certification | CE, FCC, BSMI, RCM, R&TTE, VCCI, RoHS, ErP |
| Chassis type | Nettop |
| Compatible memory cards | SD,SDHC,SDXC |
| Compatible operating systems | - Windows 10 64-bit - Linux 64-bit |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Cooling type | Active |
| Depth | 142 mm |
| DisplayPorts quantity | 1 |
| Drivers included | Yes |
| ECC | No |
| Embedded options available | No |
| Energy Star certified | Yes |
| Enhanced intel speedstep technology | Yes |
| Ethernet LAN | Yes |
| Execute disable bit | Yes |
| Graphics adapter | HD Graphics 610 |
| Graphics adapter family | Intel |
| Height | 42 mm |
| Housing material | Plastic |
| Idle states | Yes |
| Intel 64 | Yes |
| Intel clear video technology | Yes |
| Intel flex memory access | Yes |
| Intel trusted execution technology | No |
| Intel TSX-NI | No |
| LED indicators | Power,Status |
| Maximum internal memory | 32 GB |
| Maximum resolution | 3840 x 2160 pixels |
| Memory channels | Dual-channel |
| Memory slots type | SO-DIMM |
| Memory voltage | 1.2 V |
| Motherboard chipset | Intel SoC |
| Number of memory slots | 2 |
| On-board graphics adapter | Yes |
| Operating system installed | No |
| Optical drive type | No |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| PCI Express slots version | 2.0 |
| Power cord included | Yes |
| Power supply | 65 W |
| Power supply type | External AC adapter |
| Processor family | Intel® Celeron® |
| Processor frequency | 1.8 GHz |
| Processor lithography | 14 nm |
| Processor model | 3865U |
| Processor socket | BGA 1356 |
| Product Type | Mini PC barebone |
| Quick start guide | Yes |
| Safety | CB, BSMI, ETL, CCC |
| Storage drive interface | Serial ATA III |
| Storage drive sizes supported | 2.5" |
| Supported memory clock speeds | 2133 MHz |
| Supported memory types | DDR4-SDRAM |
| Supported storage drive types | HDD,SSD |
| Thermal monitoring technologies | Yes |
| VESA mounting | Yes |
| Weight | 400 g |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
