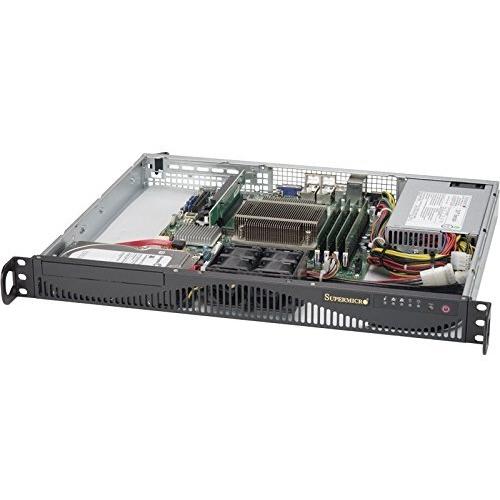

Supermicro 5019S-ML 1U Server
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Supermicro |
| EAN | 0672042204083 |
| ASIN | B0183EPS8I |
| Model | SYS-5019S-ML |
| MPN | SYS-5019S-ML |
| SKU | SYS-5019S-ML |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| ACPI version | 2.0 |
| BIOS features | PCI 2.2,SMBIOS 2.3 |
| BIOS memory size | 64 Mbit |
| BIOS type | AMI |
| Certification | 80 PLUS Platinum |
| Chassis type | Rack (1U) |
| Compatible processor series | Intel® Core™ i3 |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Depth | 366 mm |
| ECC | Yes |
| Ethernet interface type | Fast Ethernet,Gigabit Ethernet |
| Ethernet LAN | Yes |
| Fan diameter | 4 cm |
| Height | 43 mm |
| Input current | 1.8 - 4.2 A |
| Intel Xeon series | E3-1200 |
| Keyboard included | Yes |
| LAN controller | Intel® I210-AT |
| LED indicators | HDD,Network,Power,Reset,Status,Temperature |
| Memory bus | 72 bit |
| Memory form factor | 288-pin DIMM |
| Memory voltage | 1.2 V |
| Motherboard chipset | Intel® C236 |
| Non-ECC | No |
| Number of fans | 2 fan(s) |
| On-board graphics adapter model | Aspeed AST2400 |
| On/off switch | Yes |
| PC Health Monitoring | CPU,FAN,LED,Temperature,Voltage |
| PCI Express slots version | 3.0 |
| Power supply | 350 W |
| Processor family | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| RAID levels | 0,1,5,10 |
| RoHS compliance | Yes |
| Storage drive sizes supported | 3.5" |
| Supported storage drive interfaces | Serial ATA III |
| Weight | 3.83 kg |
| Width | 437 mm |
