Supermicro High-Density 4-Node Server SYS-2028TP-HTFR
Powerful dual‑socket Xeon E5‑2600 server in a compact black 2U case, offering 1 TB ECC DDR4 RAM over 16 slots, six SATA III bays, Intel I350AM2 LAN, IPMI management and a single PCIe x16 slot.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| EAN | 0672042162246 |
| ASIN | B00OLTH9SW |
| Model | SYS-2028TP-HTFR |
| MPN | SYS-2028TP-HTFR |
| ACPI version | 2.0 |
| BIOS features | APM 1.2,PCI 2.2,SMBIOS 2.3,UEFI |
| BIOS memory size | 128 MB |
| BIOS type | AMI |
| Colour | Black |
| Copper ethernet cabling technology | 1000BASE-T,100BASE-TX,10BASE-T |
| Depth | 28.5" (724 mm) |
| ECC | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN ports | 3 |
| Form factor | 2U |
| Height | 3.46" (88 mm) |
| Intel Xeon series | E5-2600 |
| IPMI LAN (RJ-45) port | Yes |
| LAN controller | Intel I350AM2 |
| LED indicators | Yes |
| Maximum internal memory | 1000 GB |
| Maximum RDIMM memory | 32 GB |
| Memory bus | 72 bit |
| Memory voltage | 1.2 V |
| Number of DIMM slots | 16 |
| Number of SATA III connectors | 6 |
| On/off switch | Yes |
| Onboard graphics adapter model | Aspeed AST2400 |
| Operating relative humidity | 8 - 90% |
| PCI Express x16 slots | 1 |
| Power supply | 2000 W |
| Processor family | Intel Xeon E5 v3 |
| Processor socket | LGA 2011 (Socket R) |
| RAID levels | 0, 1, 5, 10 |
| Storage drive sizes supported | 2.5" |
| Storage relative humidity | 5 - 95% |
| Supported memory types | DDR4-SDRAM |
| System bus rate | 9.6 GT/s |
| Weight | 85.1 lbs (38.6 kg) |
| Width | 17.2" (438 mm) |
Related products

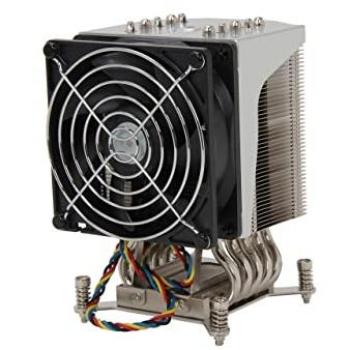

Supermicro Efficient CPU Radiator - Grey
