Supermicro SYS-1029P-WTRT 2U Server
Powerful 1U motherboard featuring Intel C622 chipset, dual LGA 3647 sockets, 12 DDR4 slots for up to 768 GB, eight SATA III bays, 10GBASE‑T LAN, six 1.57″ fans, IPMI, Aspeed AST2500 graphics, and redundant 750 W power supplies.
Share: ![]()
![]()
![]()
![]()
![]()
![]()
eBay
| Brand | Supermicro |
| EAN | 0672042263455 |
| ASIN | B077BV1WXD |
| Model | SYS-1029P-WTRT |
| MPN | SYS-1029P-WTRT |
| SKU | SYS-1029P-WTRT |
| BIOS memory size | 32 Mbit |
| BIOS type | AMI |
| Built-in processor | No |
| Colour | Black |
| Copper ethernet cabling technology | 10GBASE-T |
| Depth | 23.5" (597 mm) |
| ECC | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN ports | 2 |
| Fan diameter | 1.57" (4 cm) |
| Form factor | 1U |
| Height | 1.69" (43 mm) |
| Hot-swap HDD bays | Yes |
| IPMI LAN (RJ-45) port | Yes |
| LED indicators | HDD,Network,Power |
| Maximum internal memory | 1500 GB |
| Maximum RDIMM memory | 768 GB |
| Motherboard chipset | Intel C622 |
| Number of DIMM slots | 12 |
| Number of fans | 6 fan(s) |
| Number of SATA III connectors | 8 |
| On/off switch | Yes |
| Onboard graphics adapter model | Aspeed AST2500 |
| Operating relative humidity | 8 - 90% |
| PC health monitoring | CPU,FAN,Temperature |
| PCI Express slots version | 3.0 |
| PCI Express x16 slots | 3 |
| Power supply | 750 W |
| Processor socket | LGA 3647 |
| RAID levels | 0, 1, 5, 10 |
| Redundant power supply RPS support | Yes |
| RoHS compliance | Yes |
| Storage relative humidity | 5 - 95% |
| Supported memory types | DDR4-SDRAM |
| Supported RDIMM clock speeds | 2133,2400,2666 MHz |
| Supported storage drive interfaces | Serial ATA III |
| System bus rate | 10.4 GT/s |
| Weight | 46.1 lbs (20.9 kg) |
| Width | 17.2" (437 mm) |
Related products

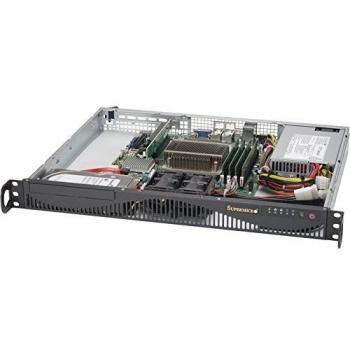

Supermicro 5019S-ML 1U Server
